Fig 012.2




Central Door Locking: Non Double Locking

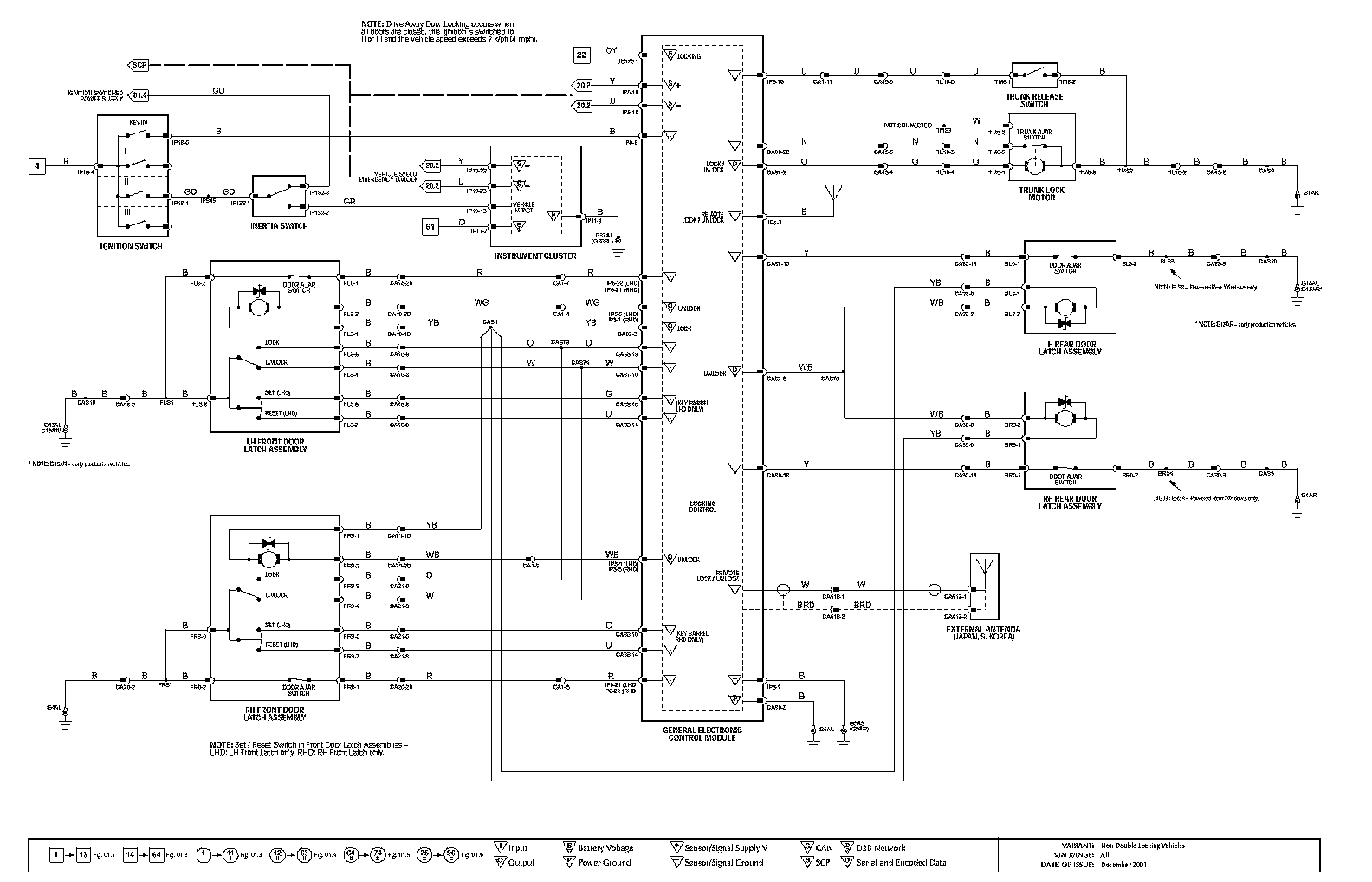

Wiring Diagram:

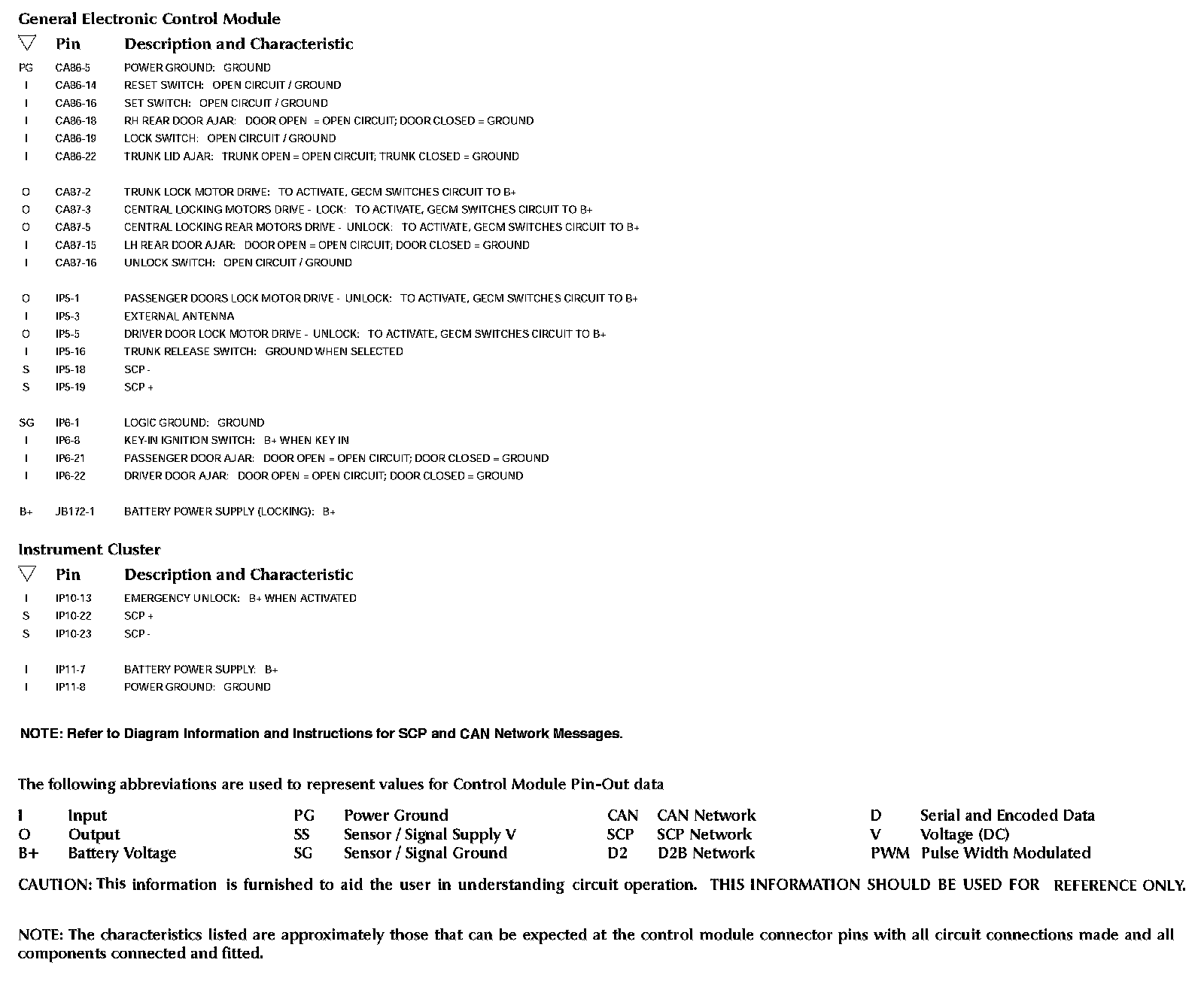

Control Module Pin-out Information:






Components:

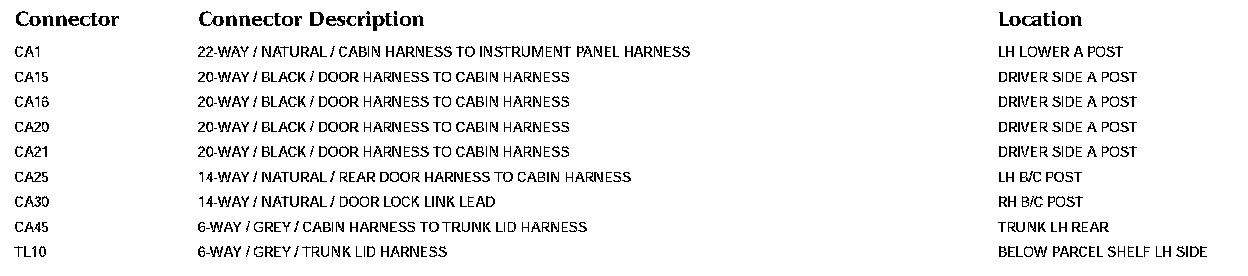

Harness In-line Connectors:






Grounds:
