Fig 020.1




Controller Area Network


Wiring Diagram:

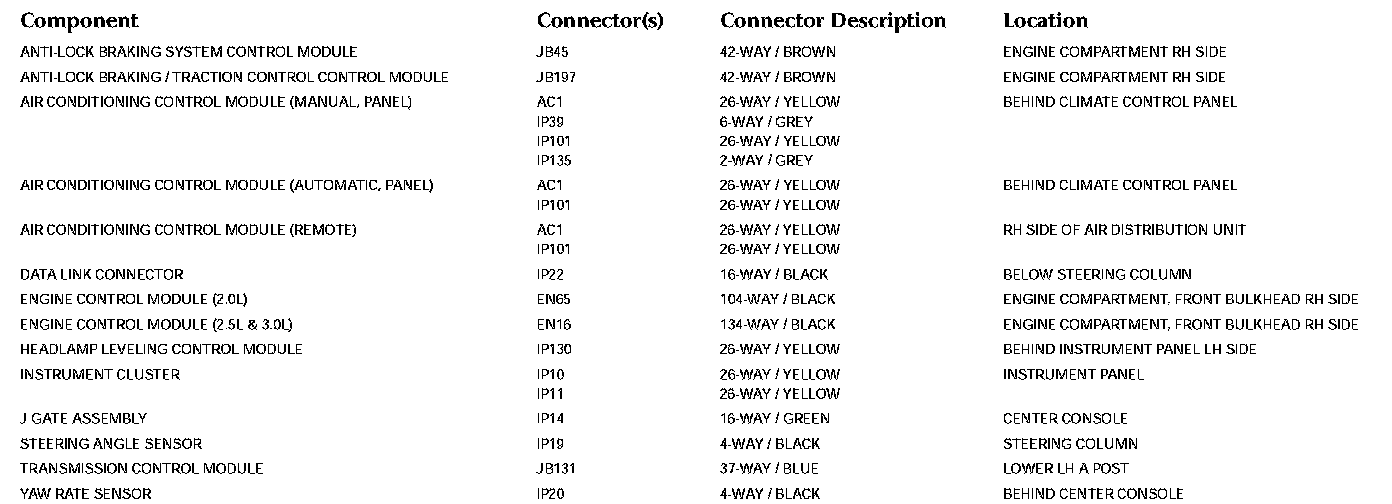

Components:






Harness In-line Connectors:






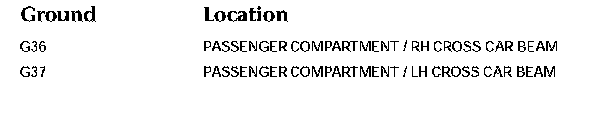

Grounds:
