Fig 020.2




Standard Corporate Protocol Network; Serial Data Link

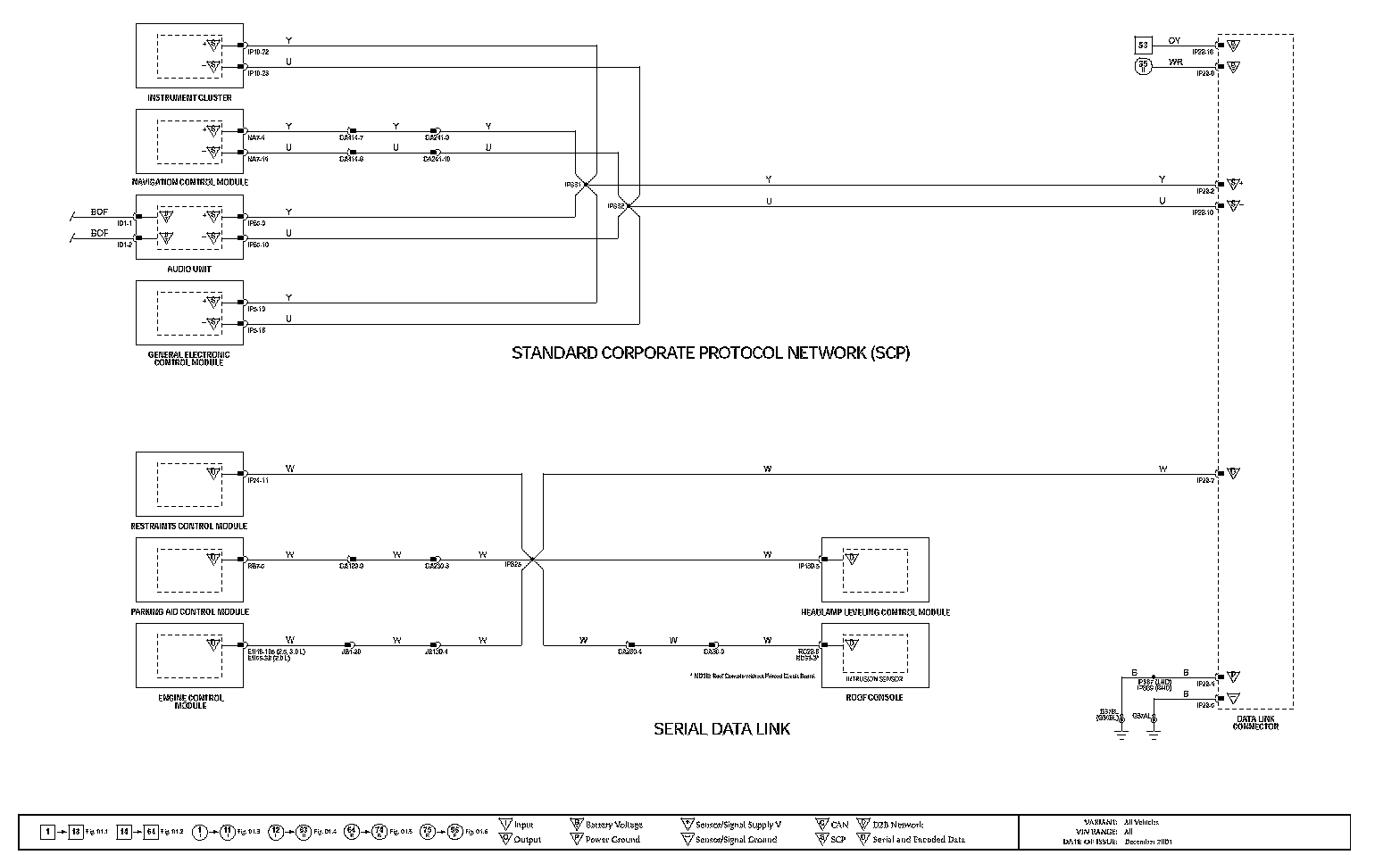

Wiring Diagram:

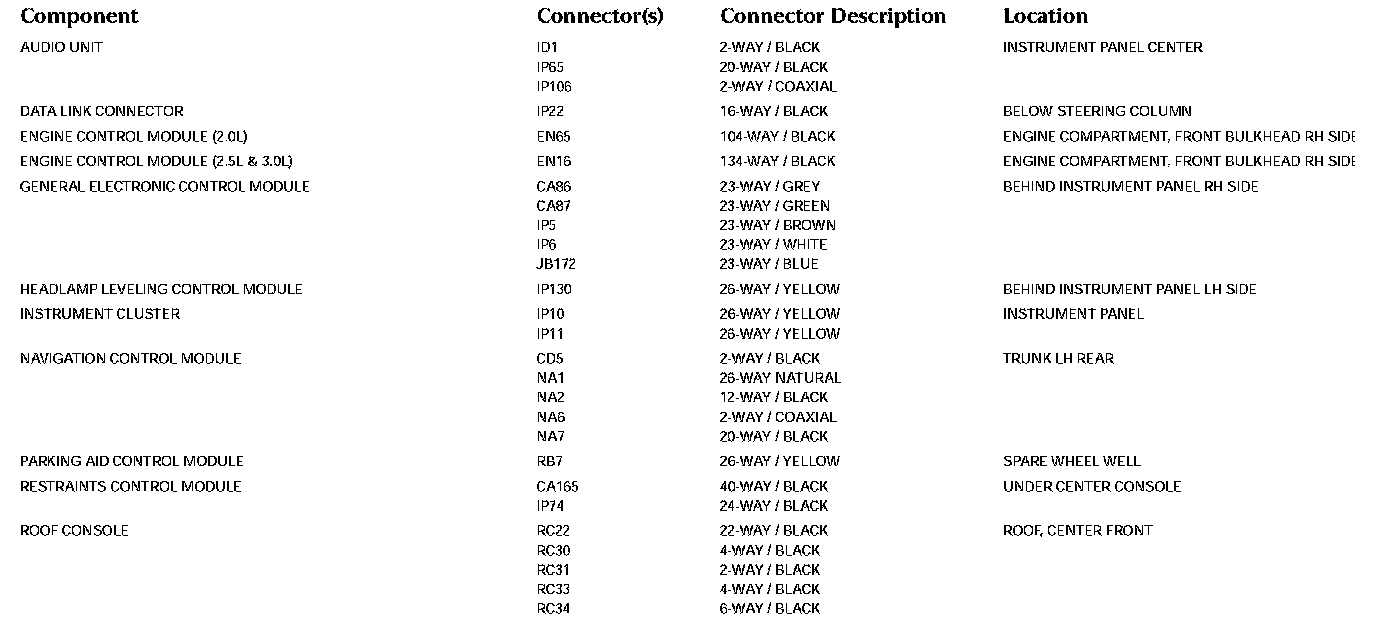

Components:

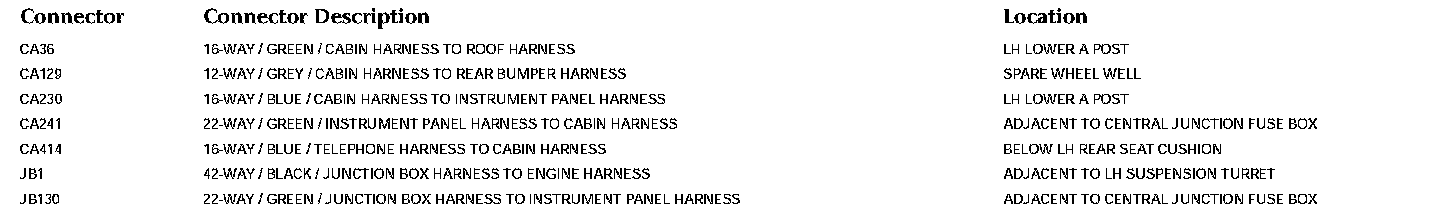

Harness In-line Connectors:

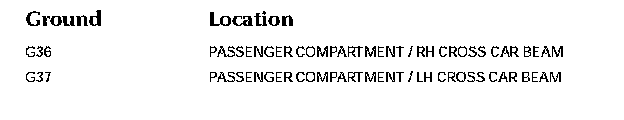

Grounds:
