Fig 05.1




Anti-Lock Braking

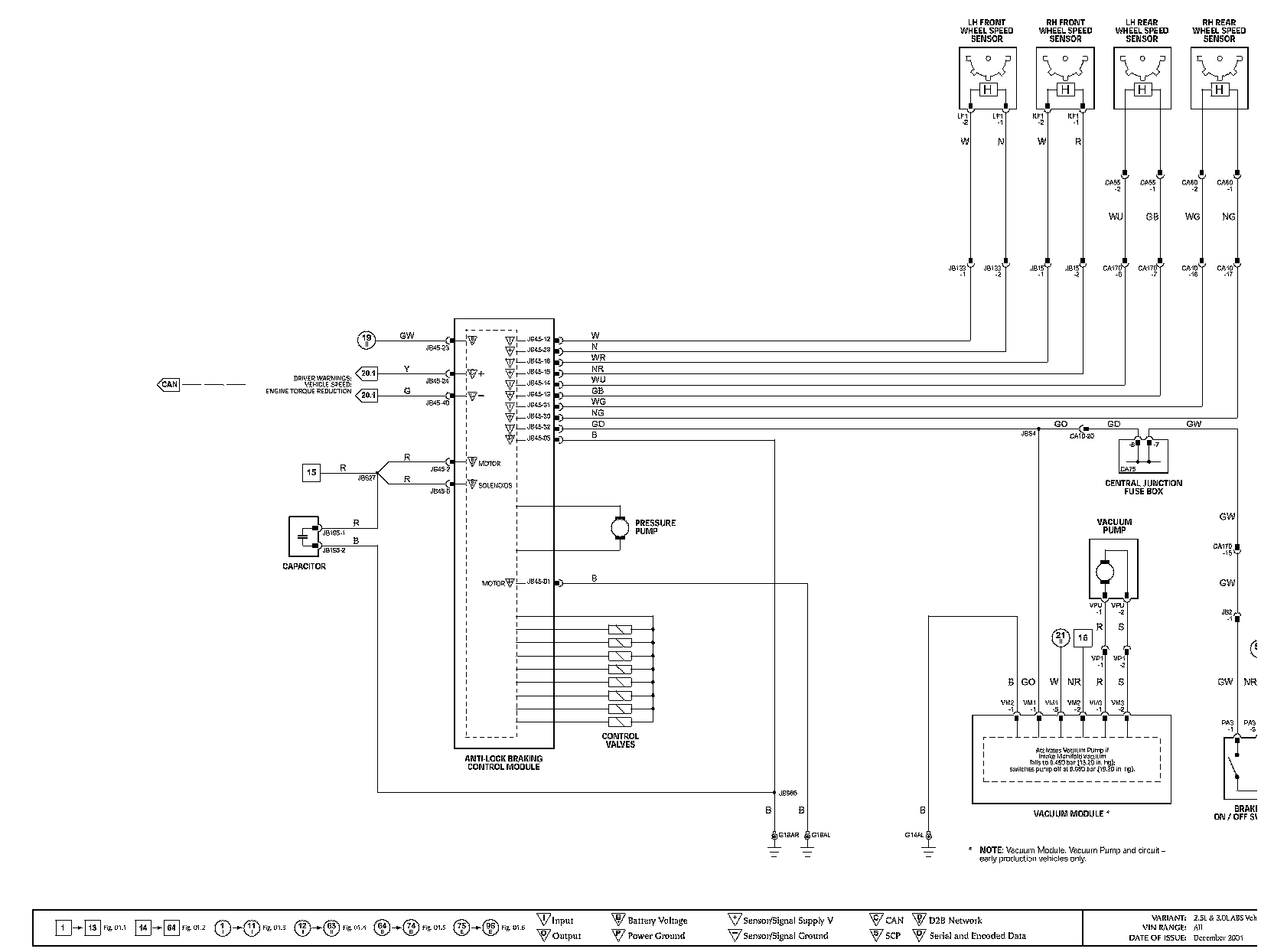

�Wiring Diagram:

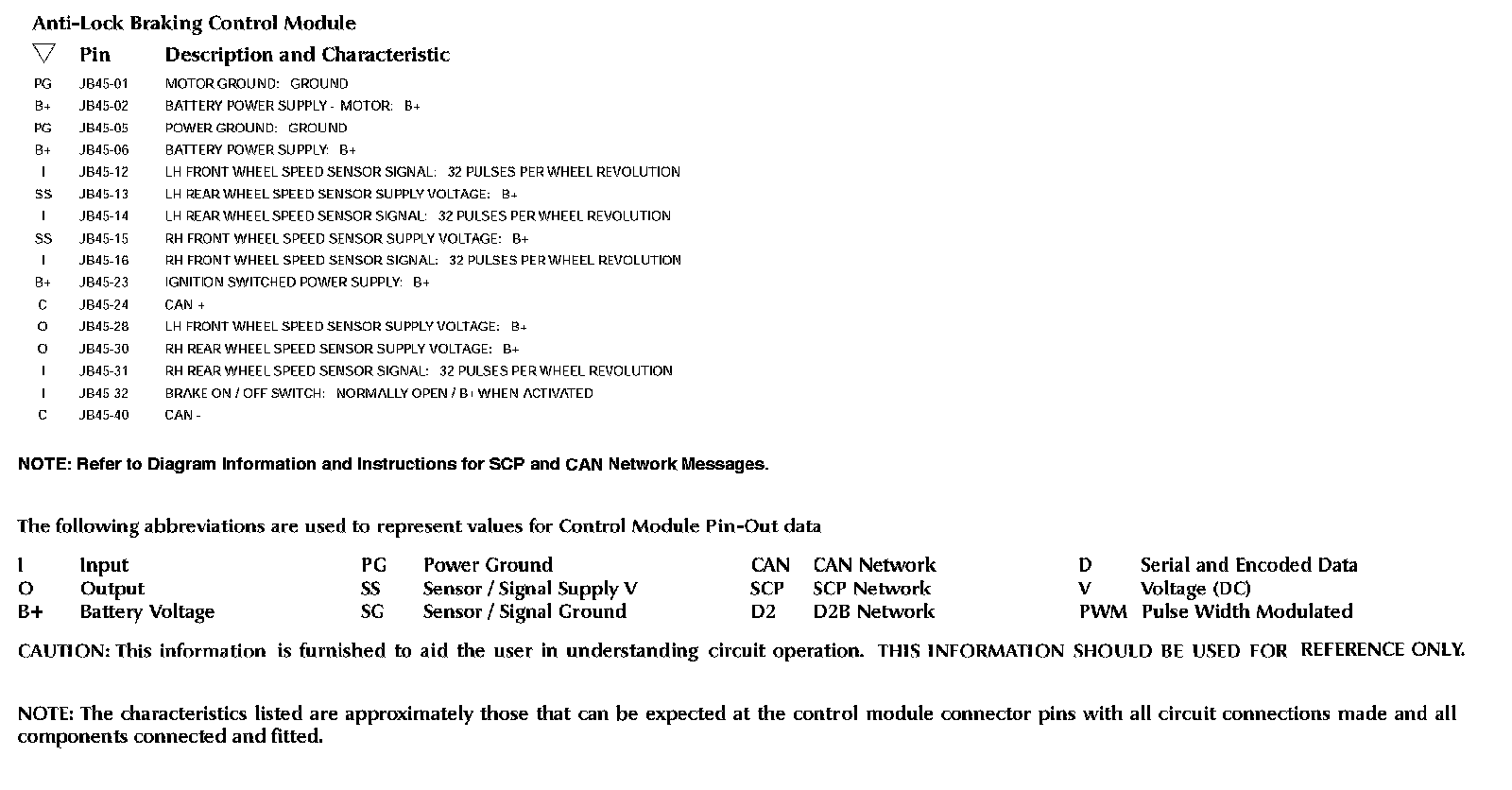

Control Module Pin-out Information:

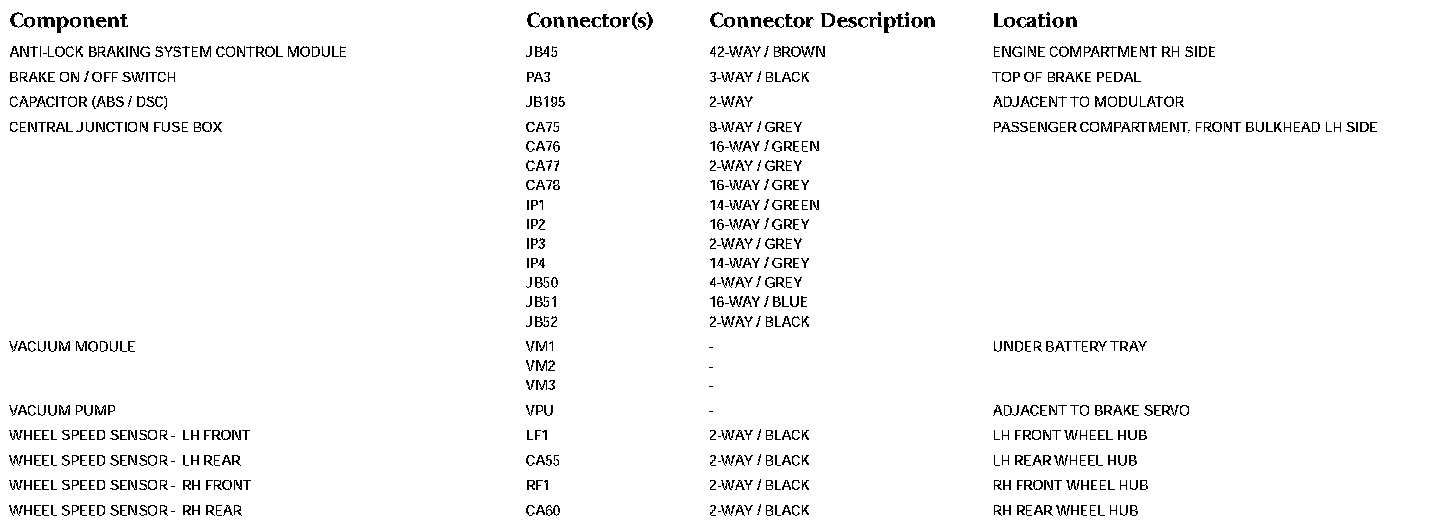

Components:

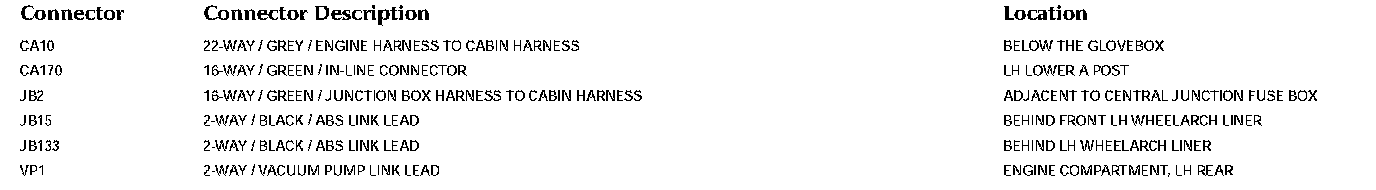

Harness In-line Connectors:






Grounds:
