Fig 05.3




Anti-Lock Braking / Traction Control

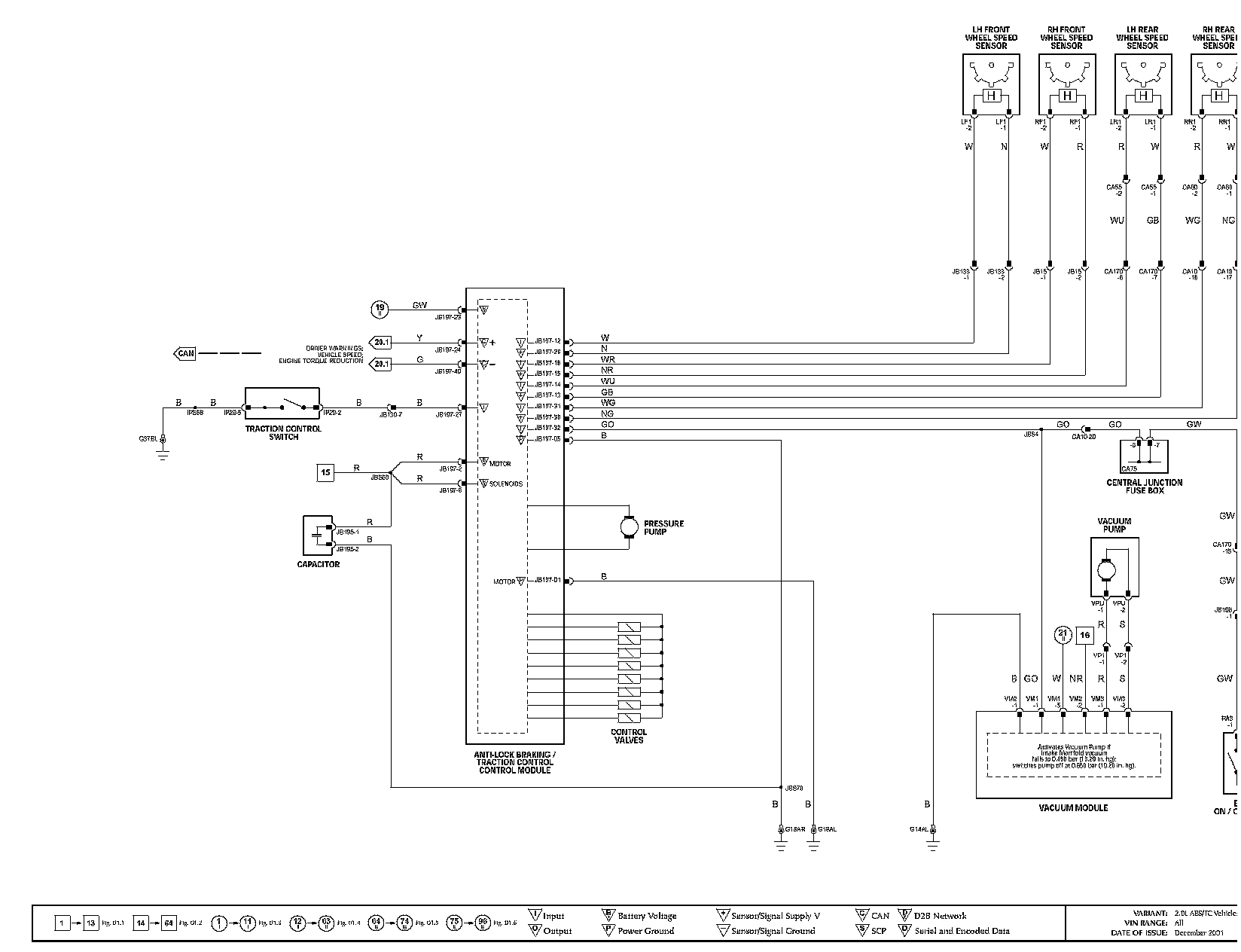

��Wiring Diagram:

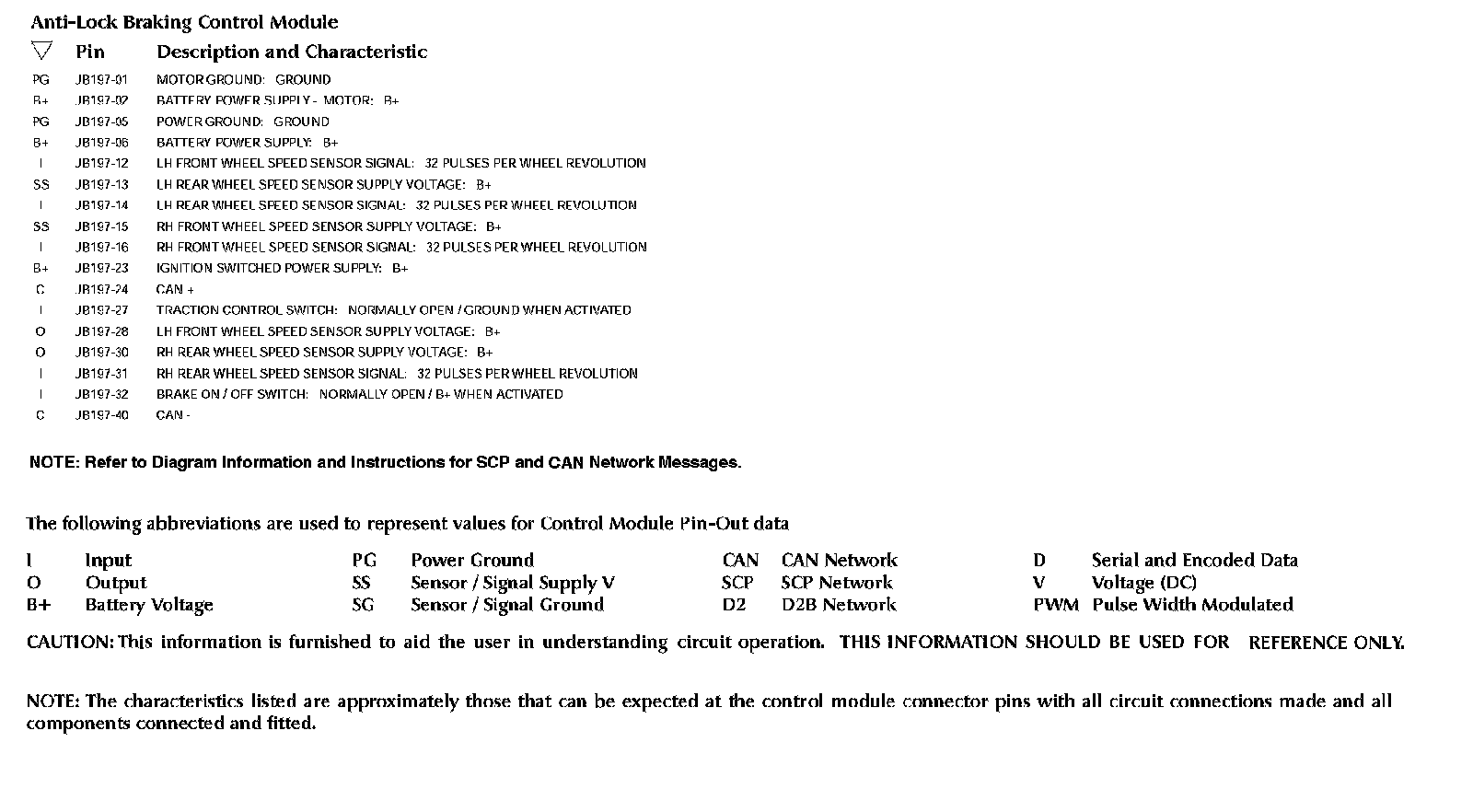

Control Module Pin-out Information:

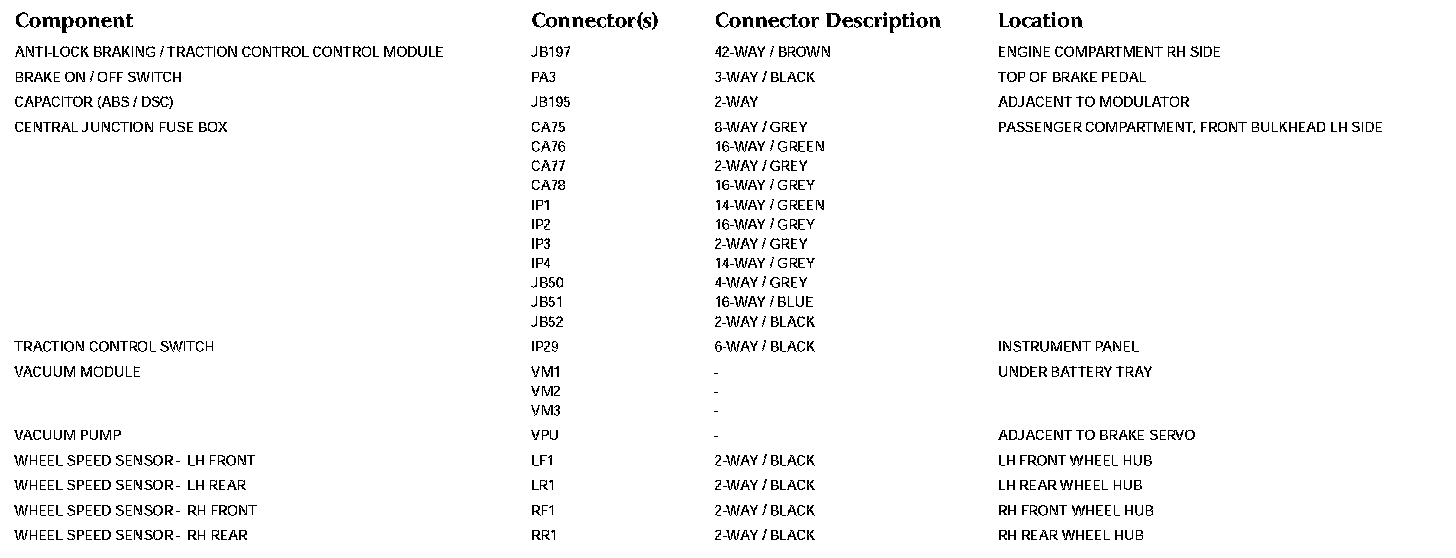

Components:

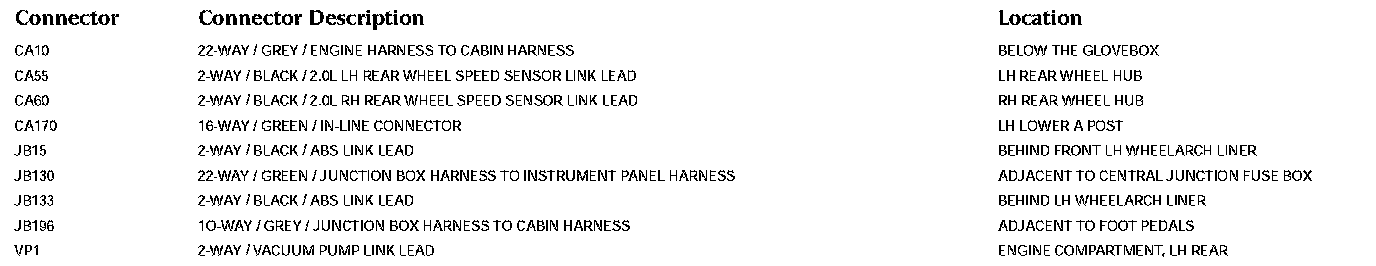

Harness In-line Connectors:

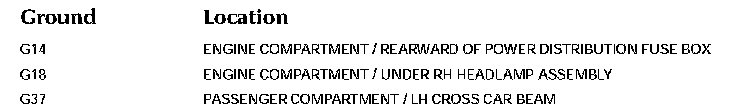

Grounds:
