Fig 07.1




Instrument Cluster

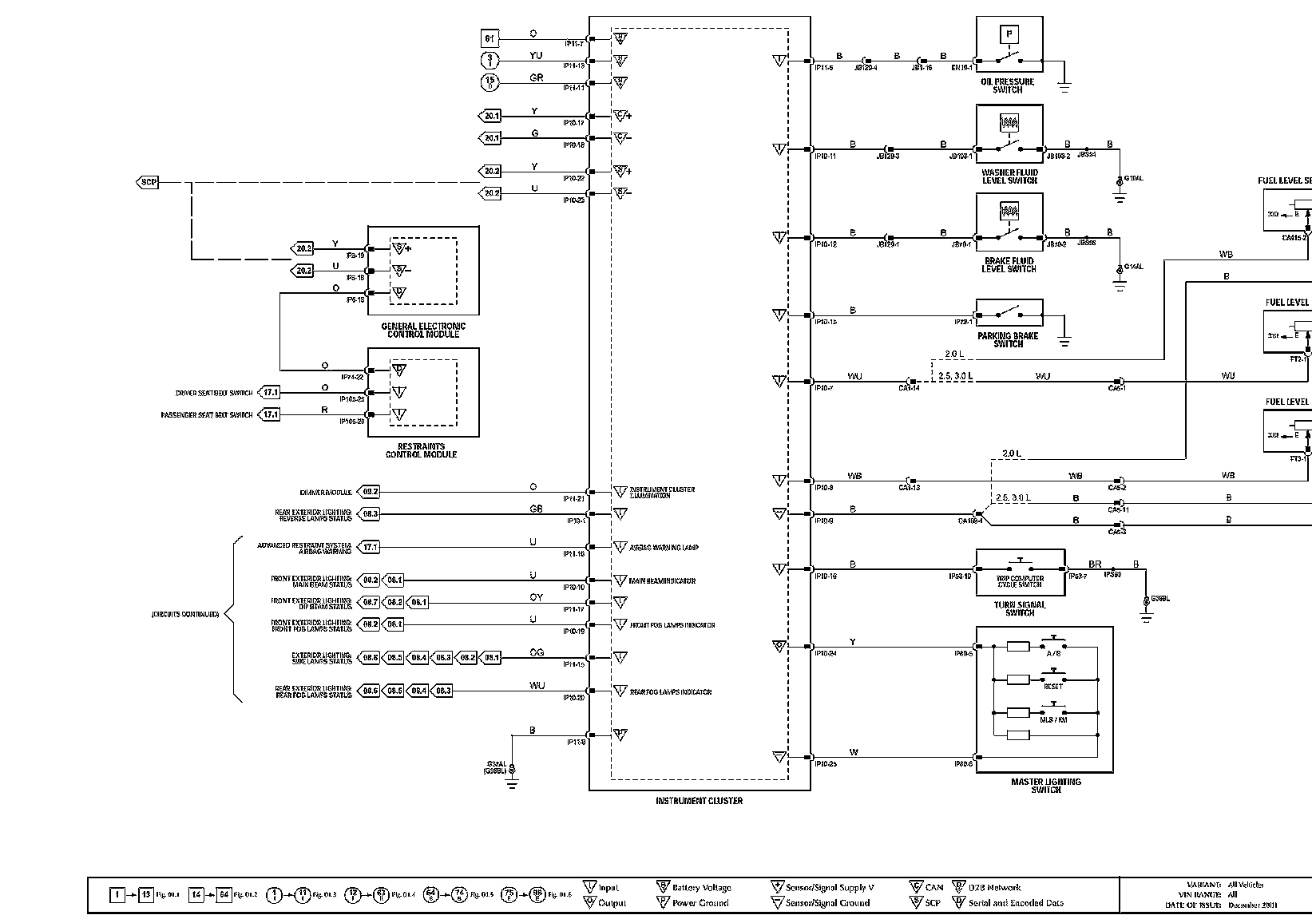

e�$Wiring Diagram:

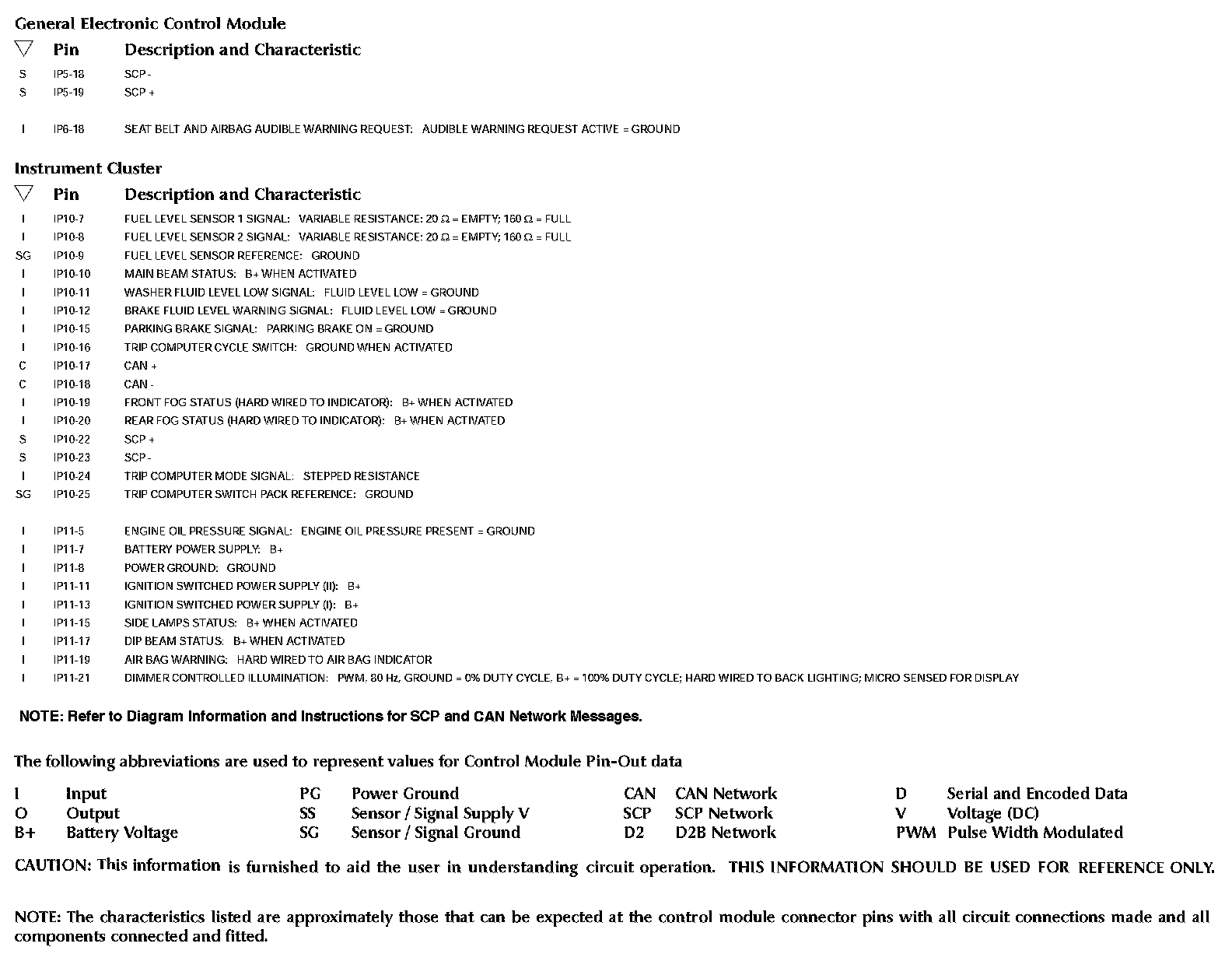

Control Module Pin-out Information:

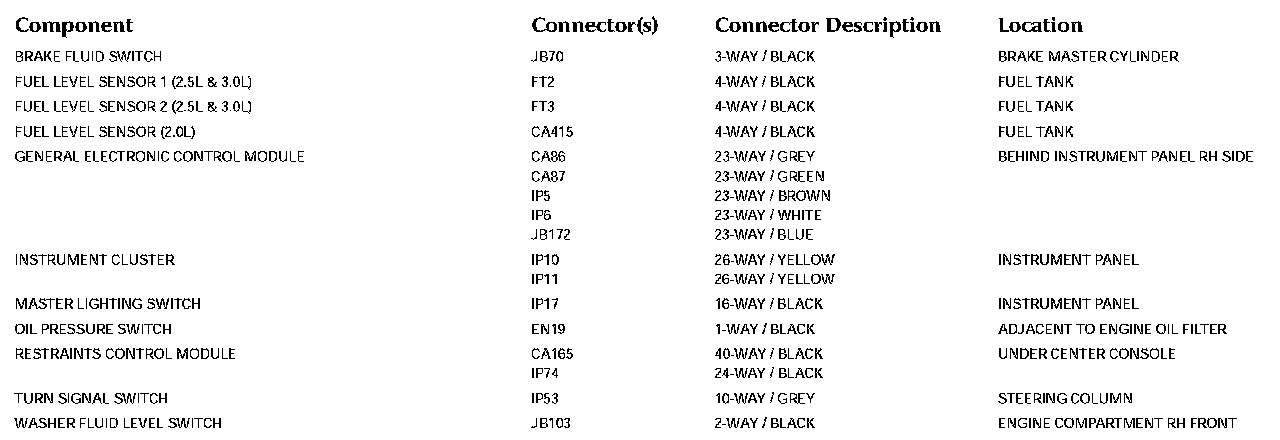

Components:

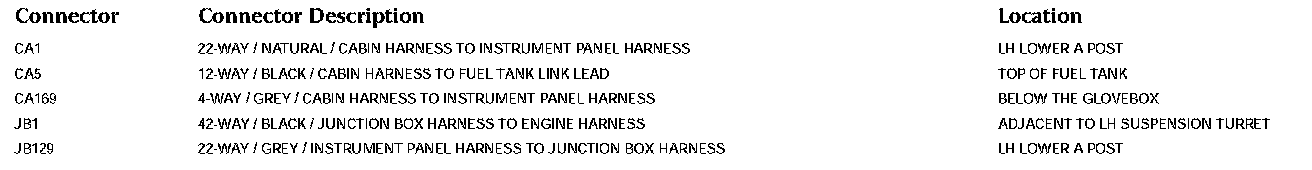

Harness In-line Connectors:

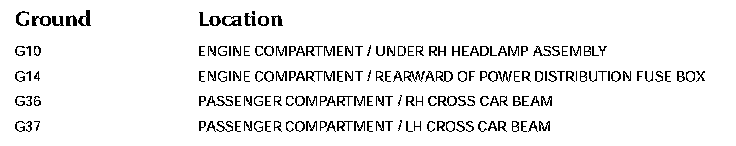

Grounds:
