Fig 07.2




Audible Warnings

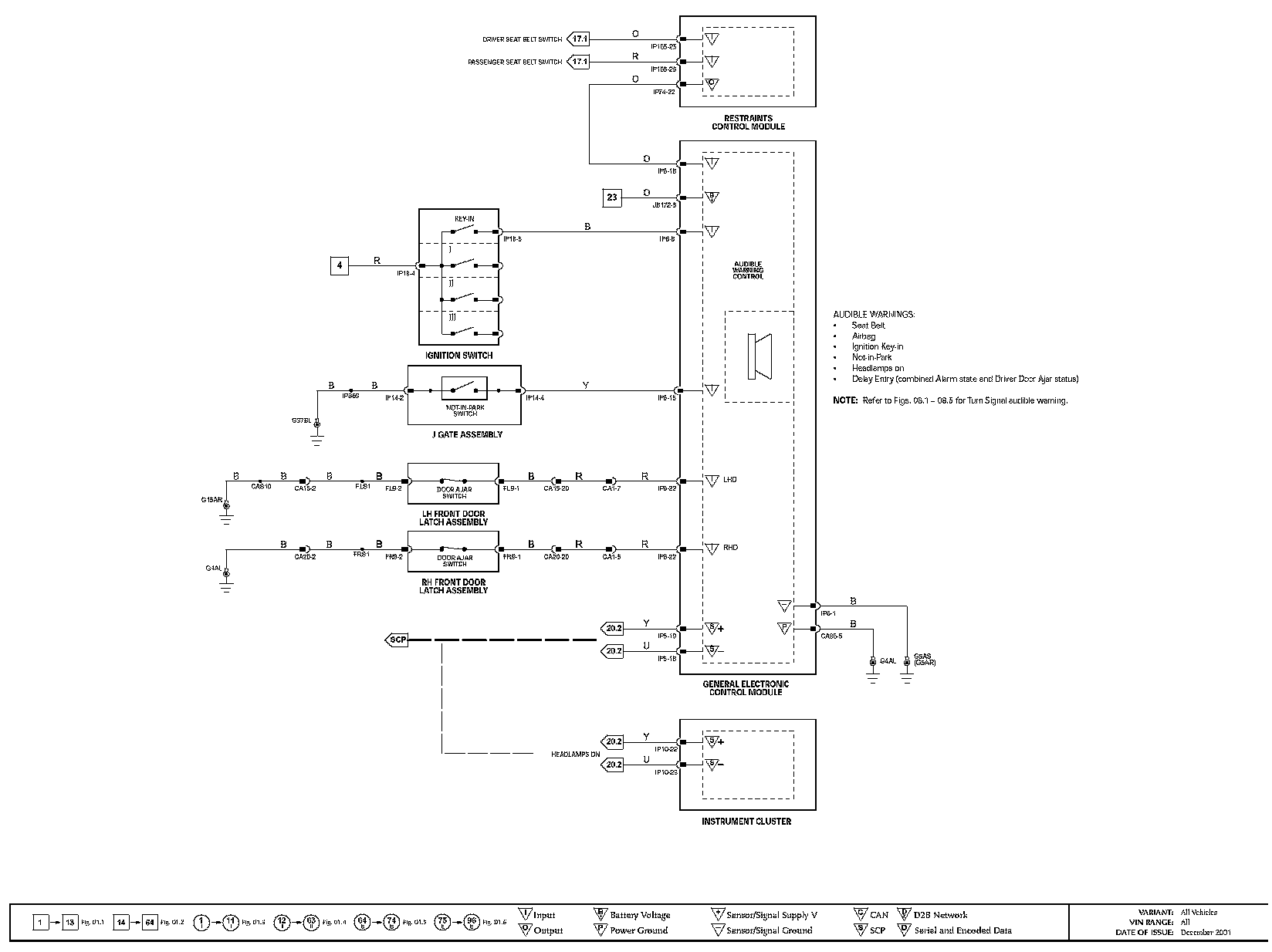

\��$Wiring Diagram:

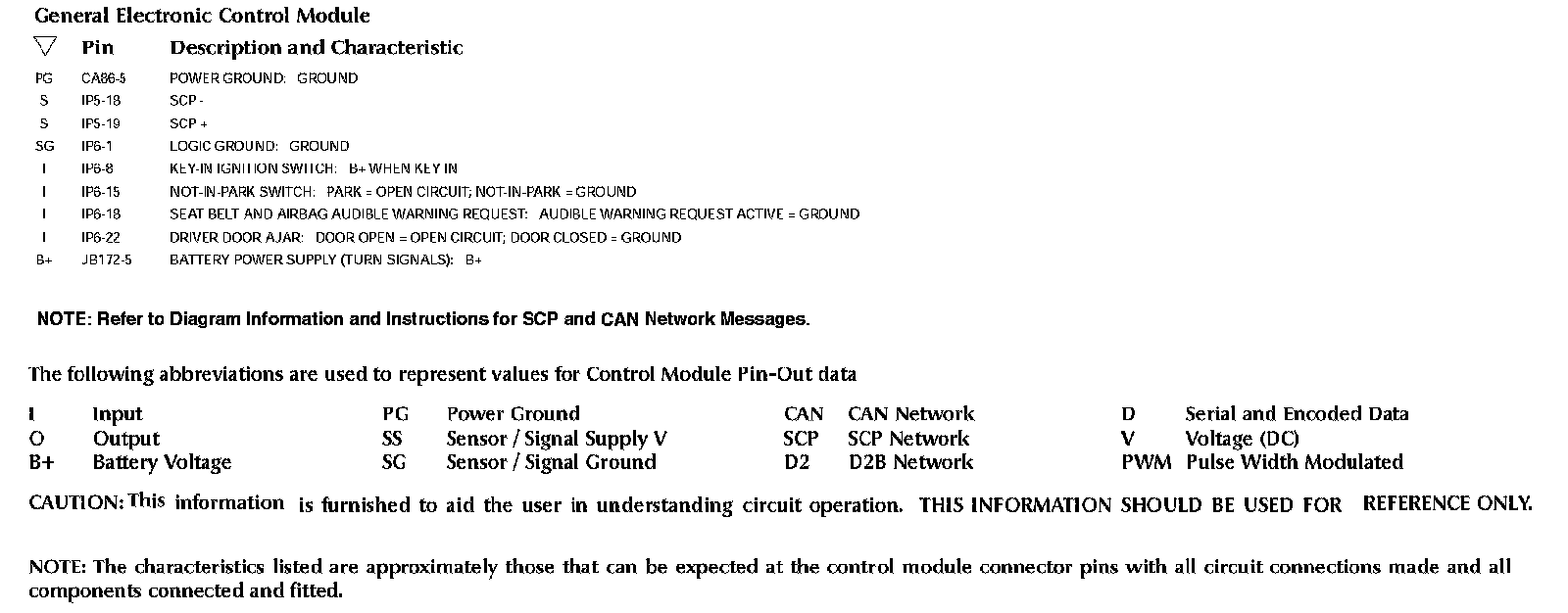

Control Module Pin-out Information:

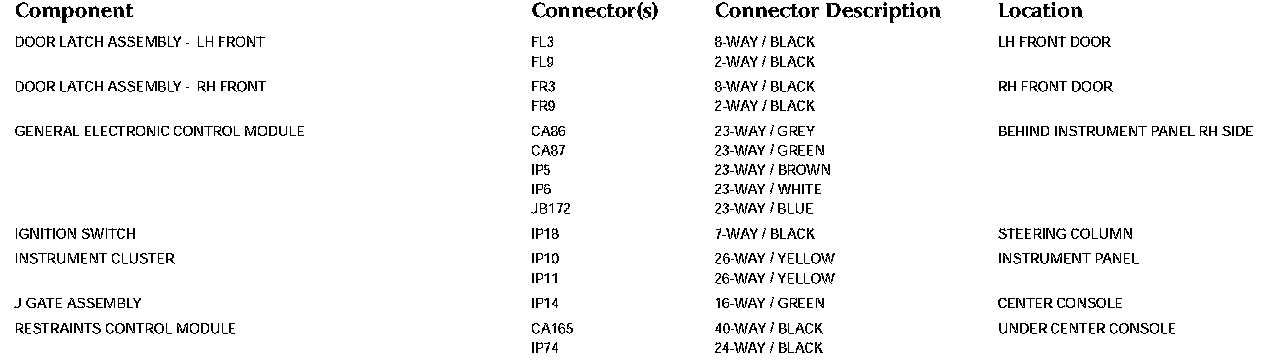

Components:

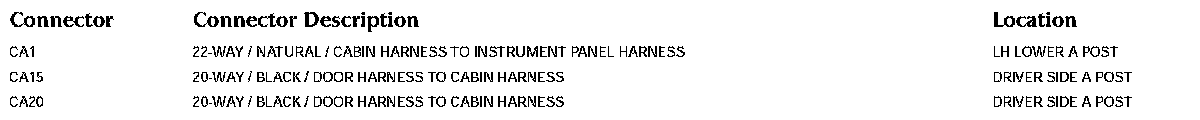

Harness In-line Connectors:






Grounds:
