Fig 08.1




Exterior Lighting: Front-Autolamps

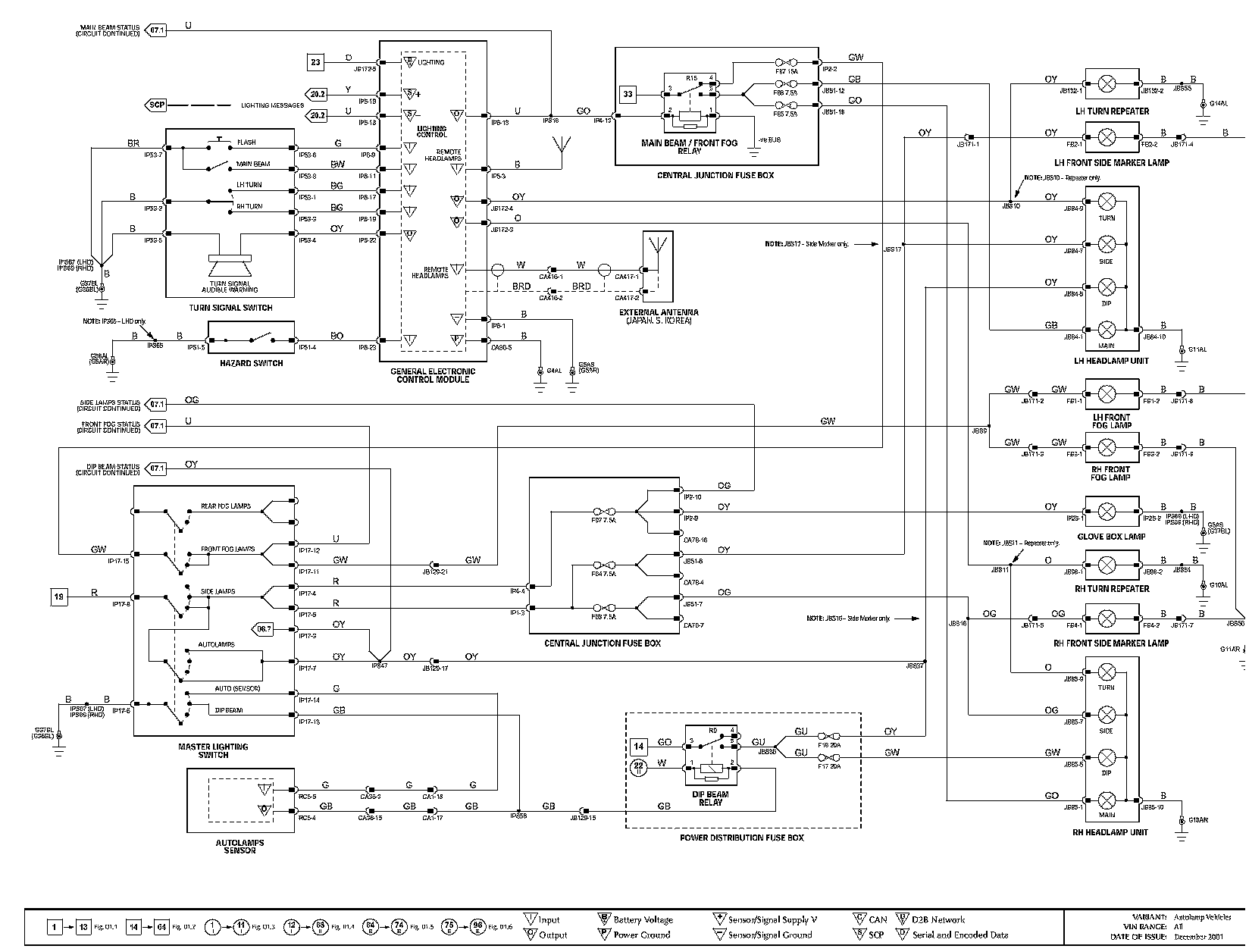

l%Wiring Diagram:






Control Module Pin-out Information:

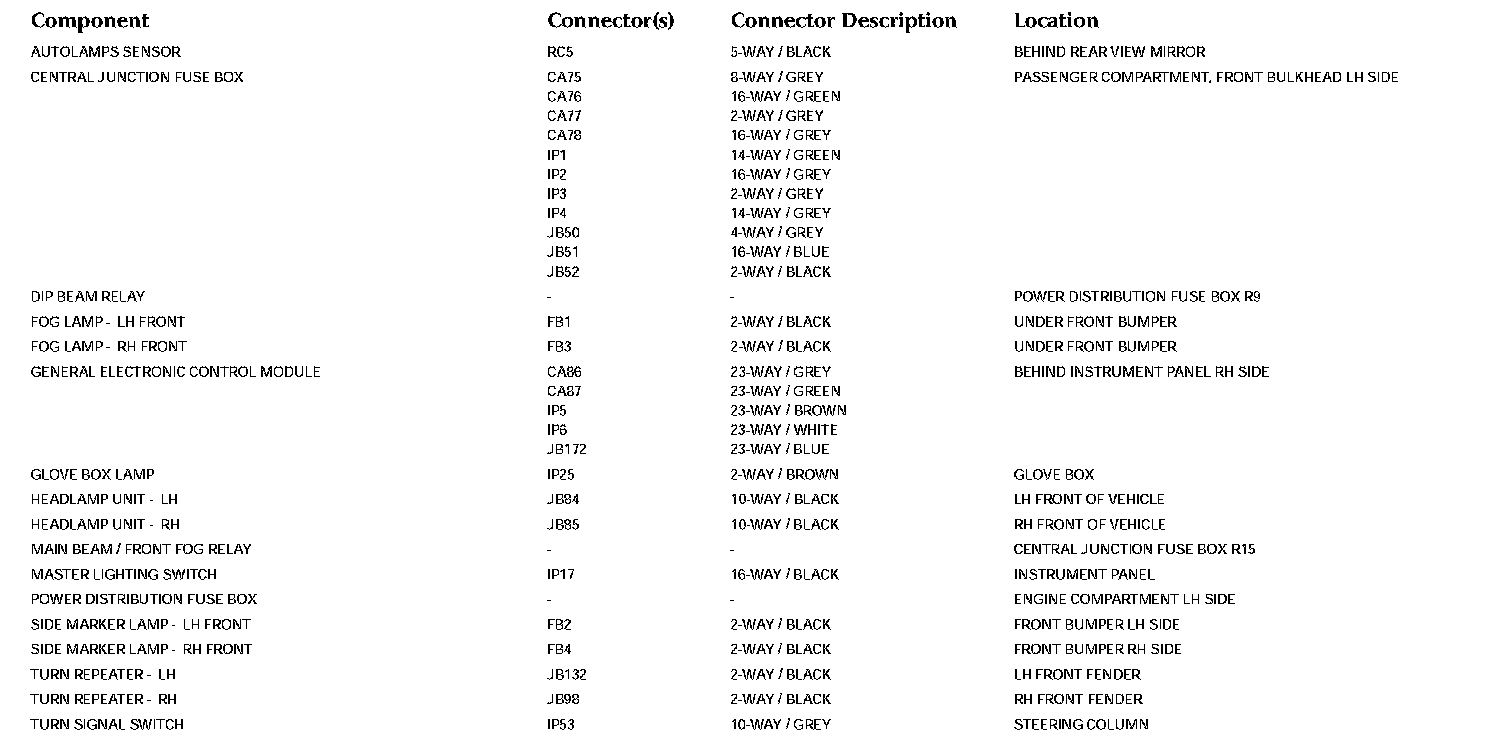

Components:

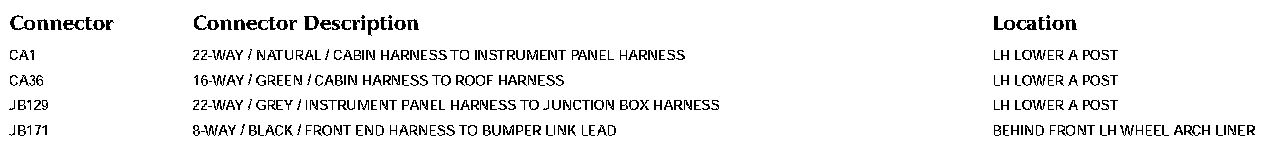

Harness In-line Connectors:






Grounds:
