Fig 08.2




Exterior Lighting: Front-Non Autolamps; Daytime Running Lamps

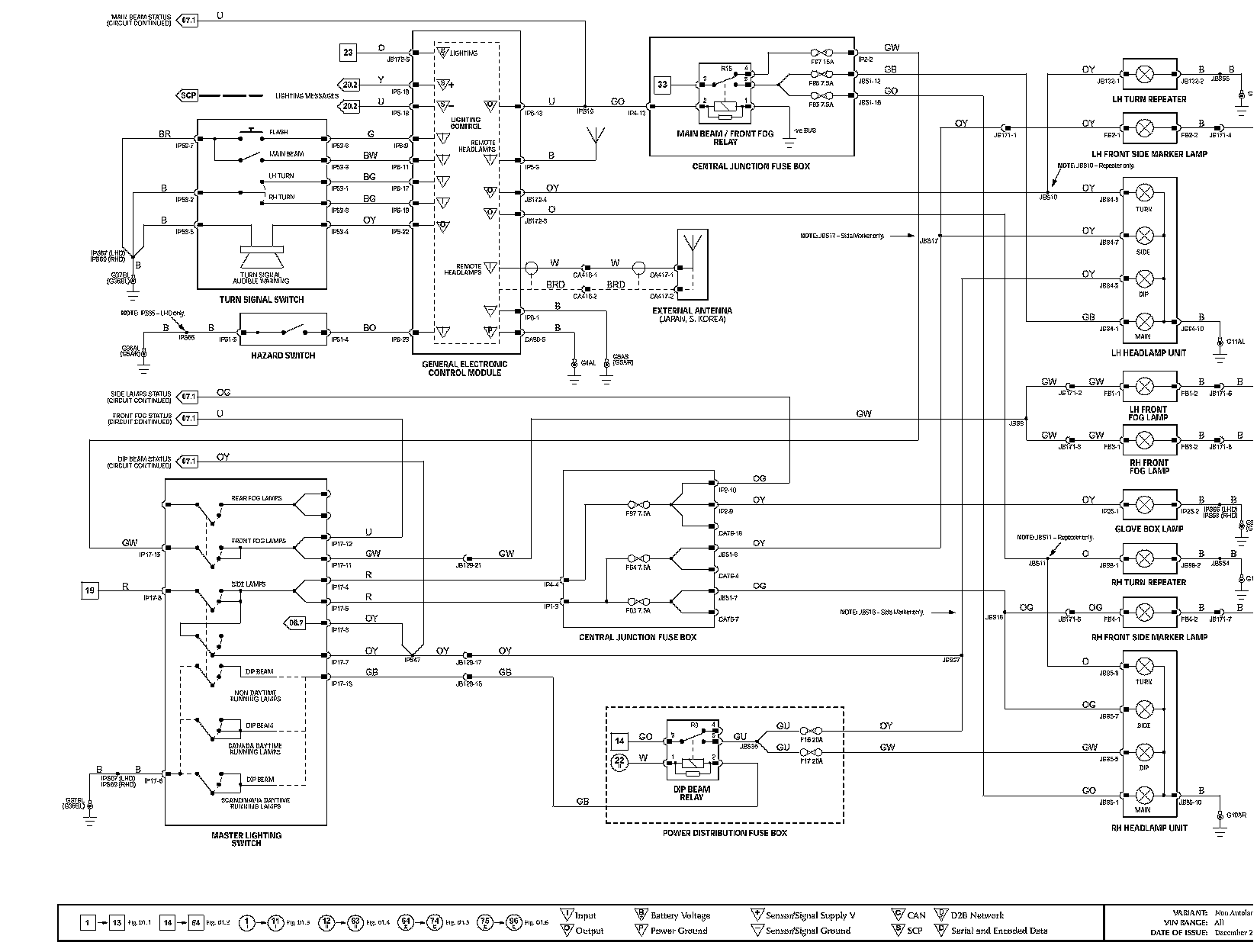

�l%Wiring Diagram:

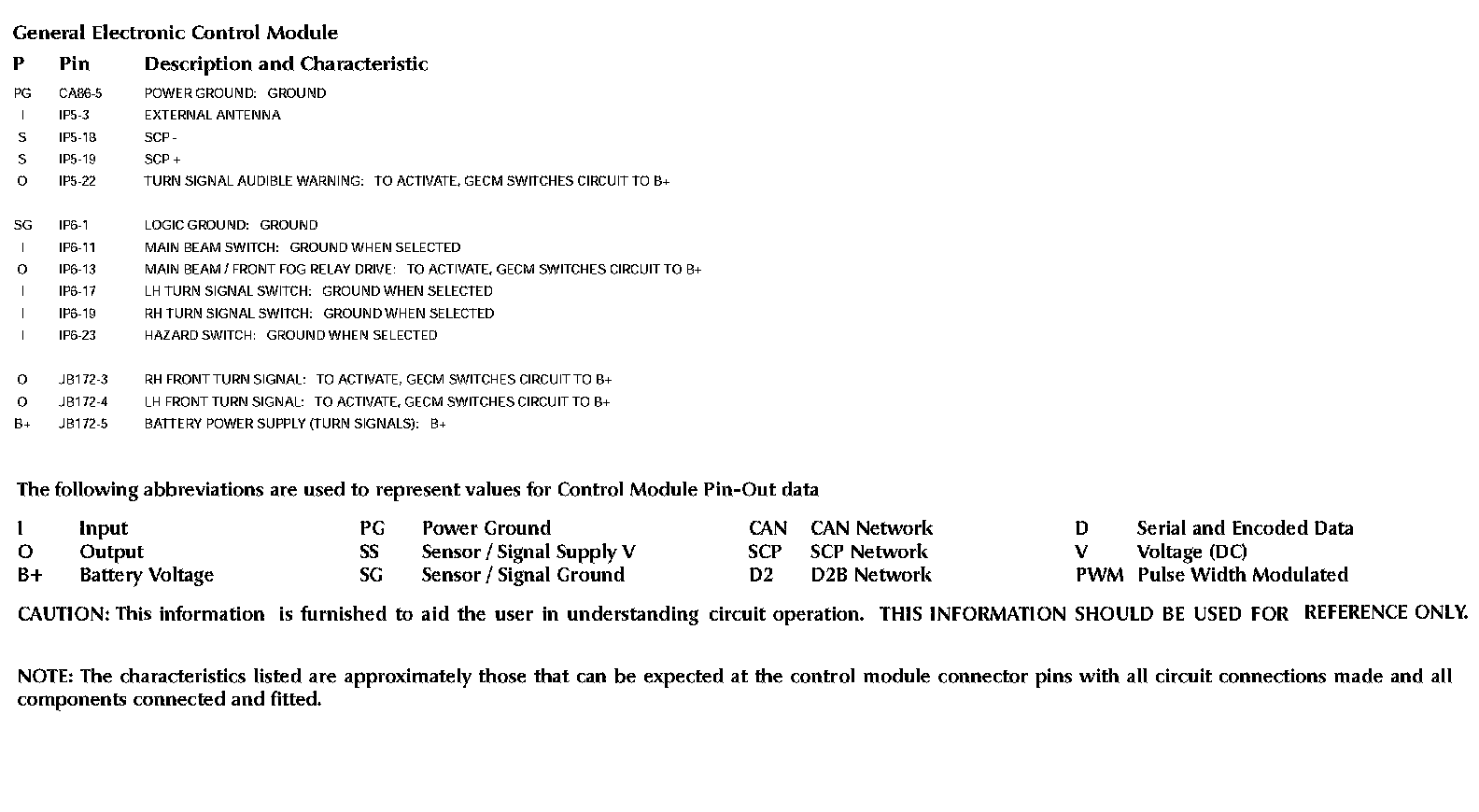

Control Module Pin-out Information:

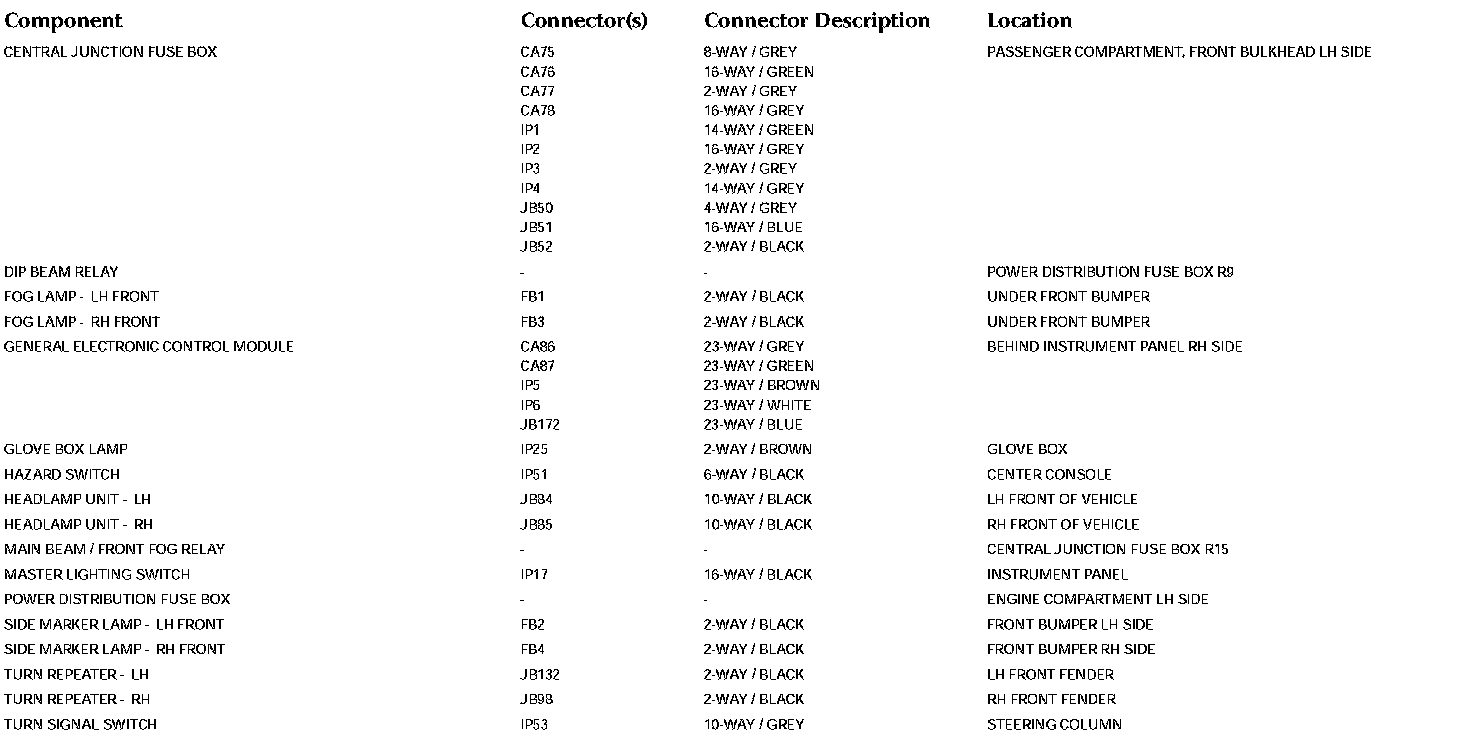

Components:






Harness In-line Connectors:






Grounds:
