Fig 08.3




Exterior Lighting: Rear

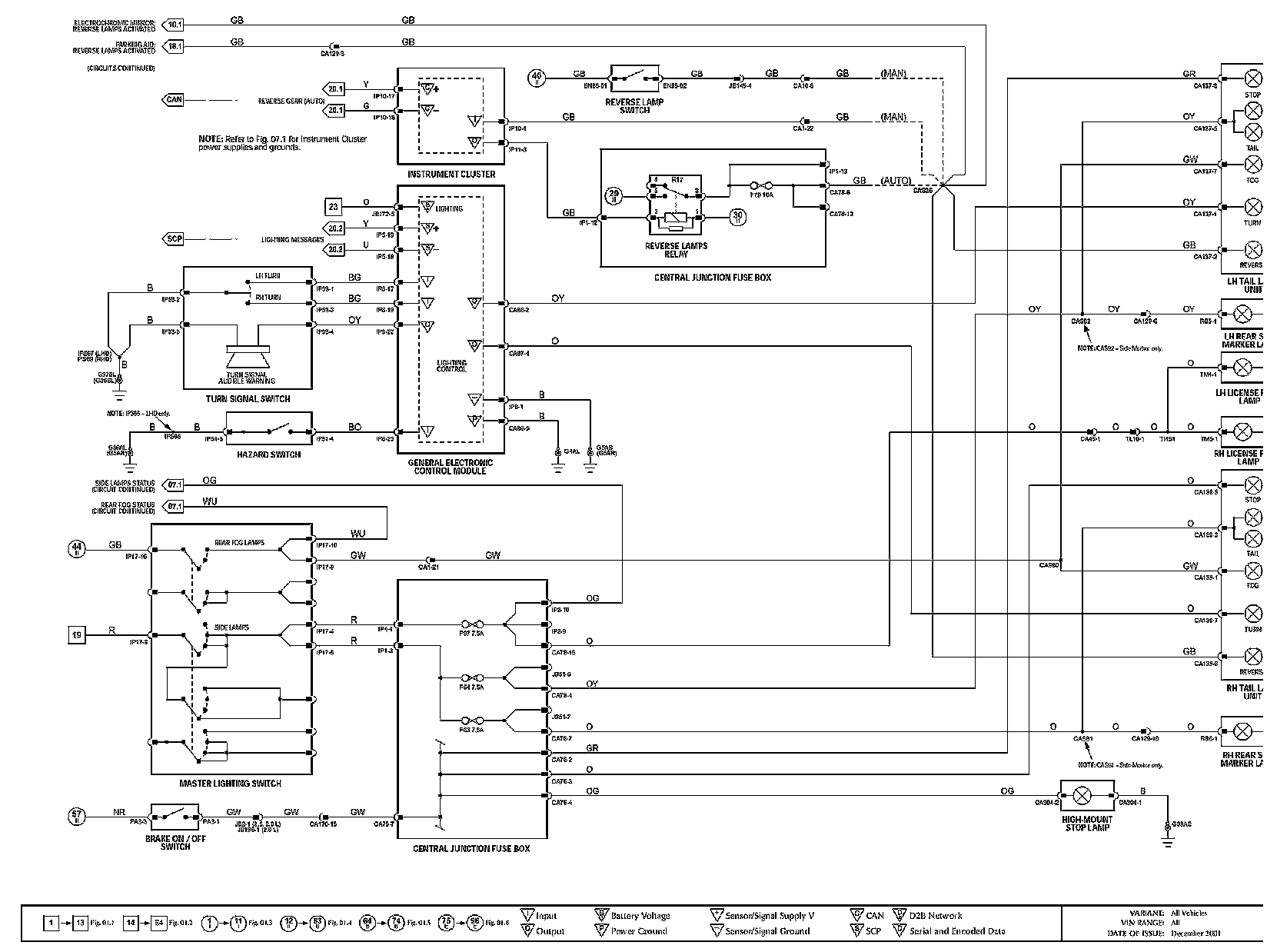

�~m%Wiring Diagram:






Control Module Pin-out Information:

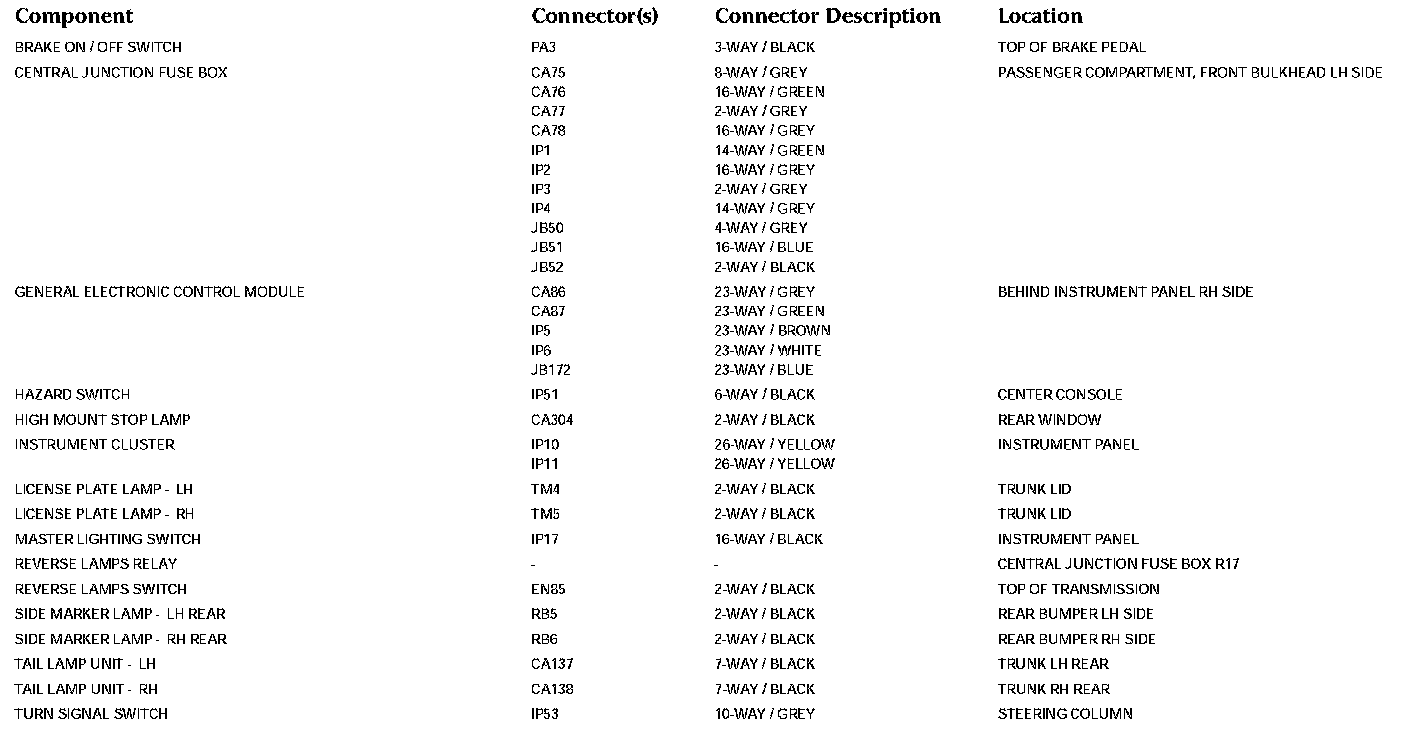

Components:

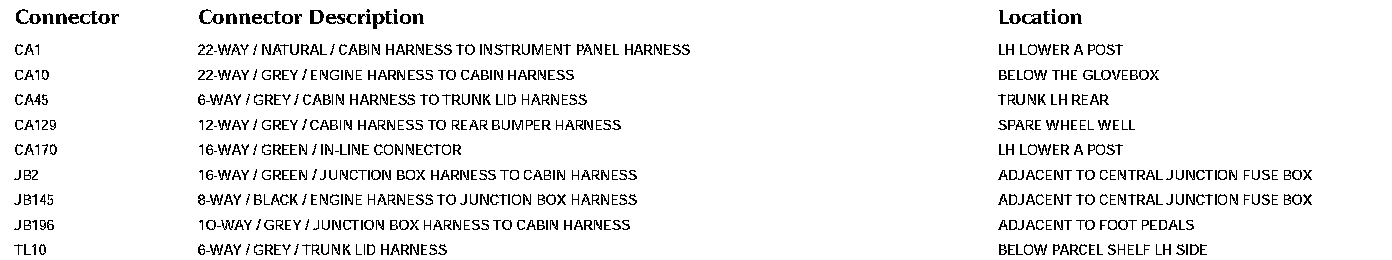

Harness In-line Connectors:






Grounds:
