X-Type (X400) V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>
Fig 09.2
Fig 09.2
Dimmer-Controlled Lighting
A �%Wiring Diagram:

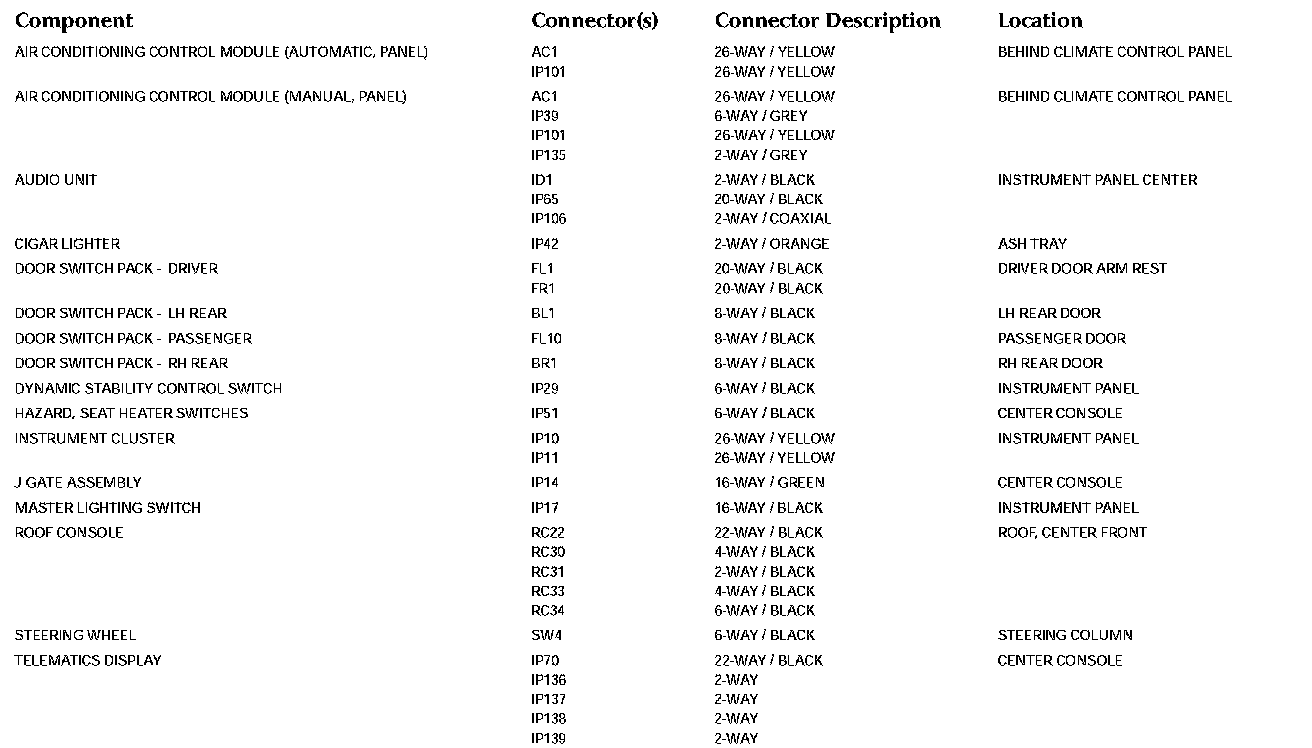

Components:
Harness In-line Connectors:
Grounds:
