Engine Management: Part 1
Engine Management: Part 1

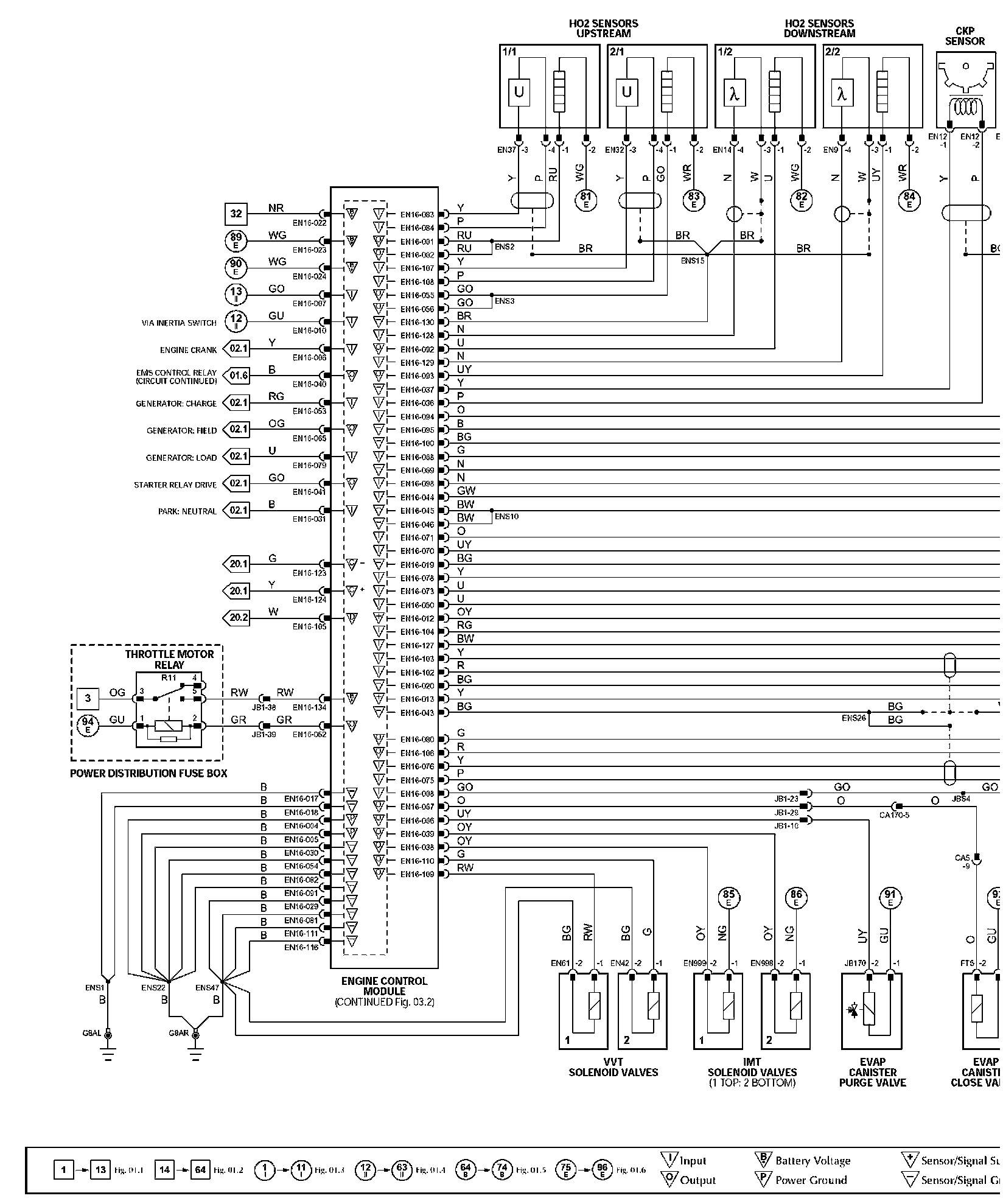

��:Wiring Diagram:
Use this Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams. Electrical Diagrams
Control Module Pin-out Information:

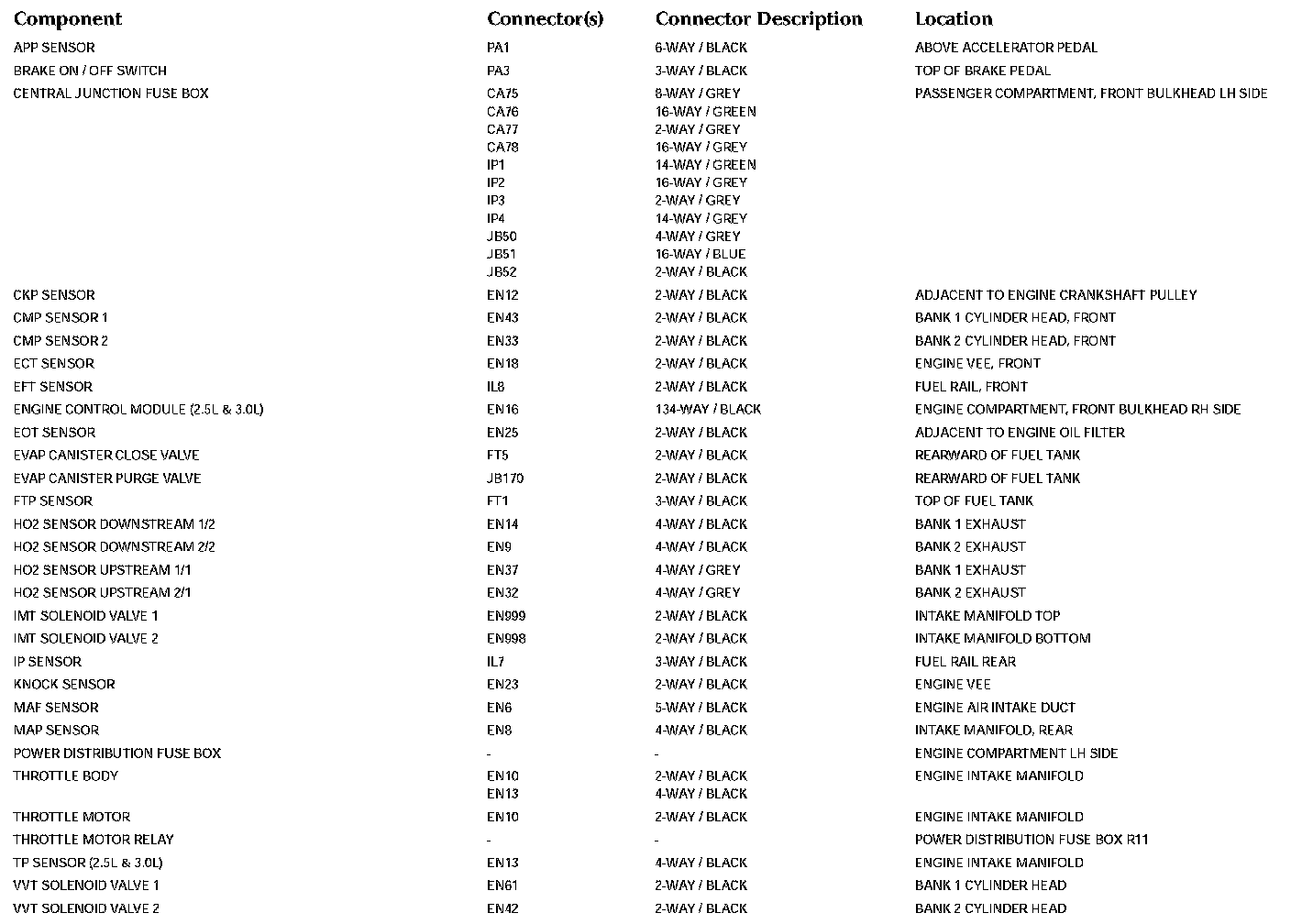

Components:

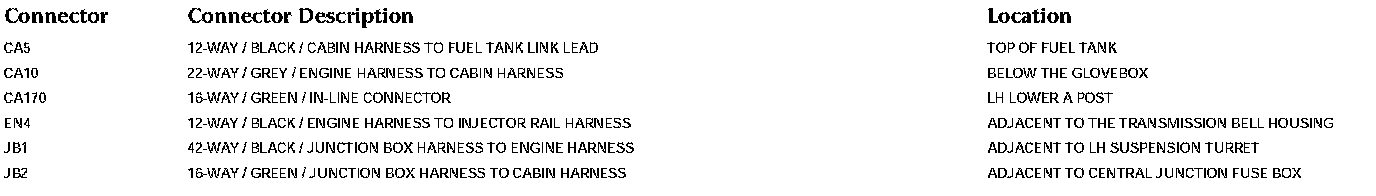

Harness In-line Connectors:
Grounds:
