System Specifications





Brake Lining and Disc Specifications

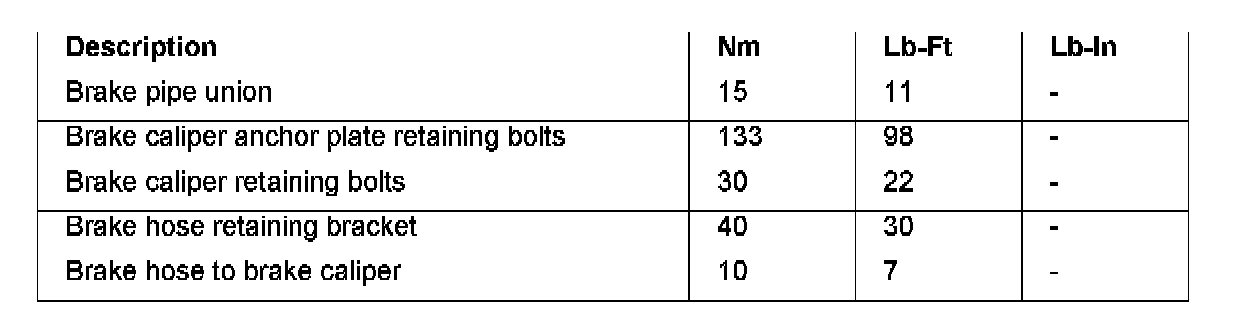

Front Disc Brake Torque Specifications

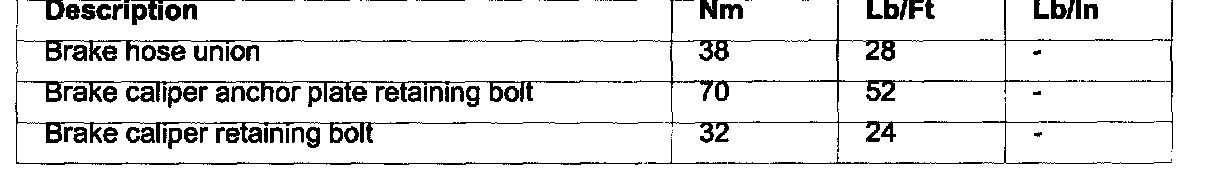

Rear Disc Brake Torque Specifications





Parking Brake and Actuation Torque Specifications

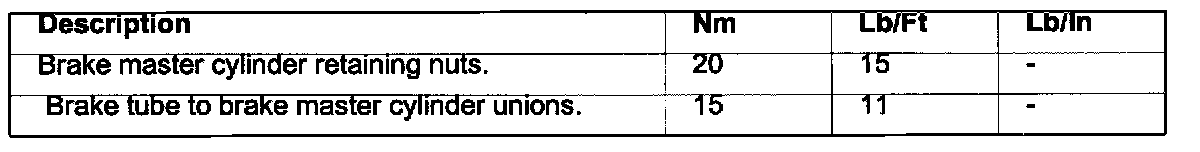

Hydraulic Brake Actuation Torque Specifications

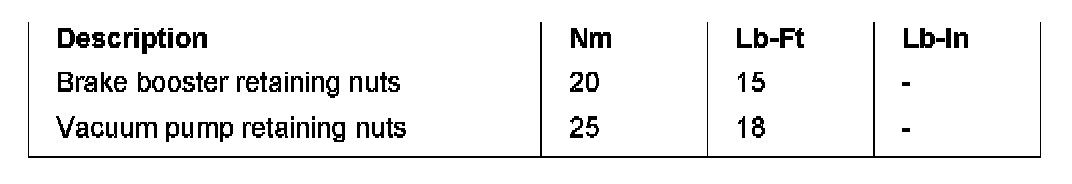

Power brake Actuation Torque Specifications

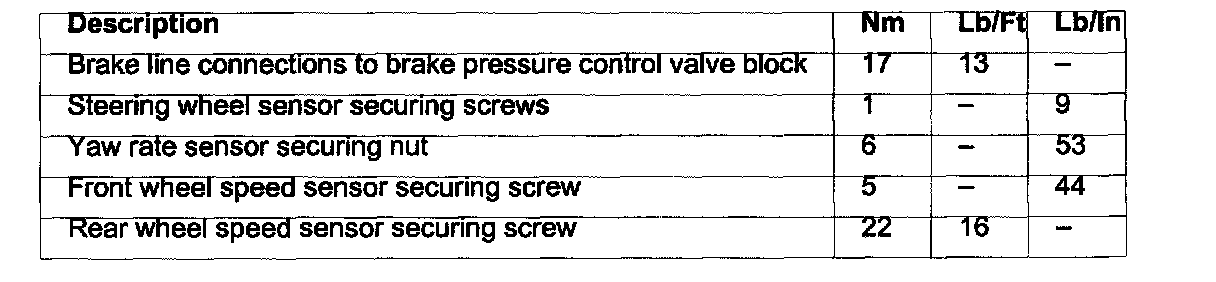

Anti-Lock Control Torque Specifications
