Steering Column: Service and Repair



Column

Removal
1. Remove the multifunction switch.

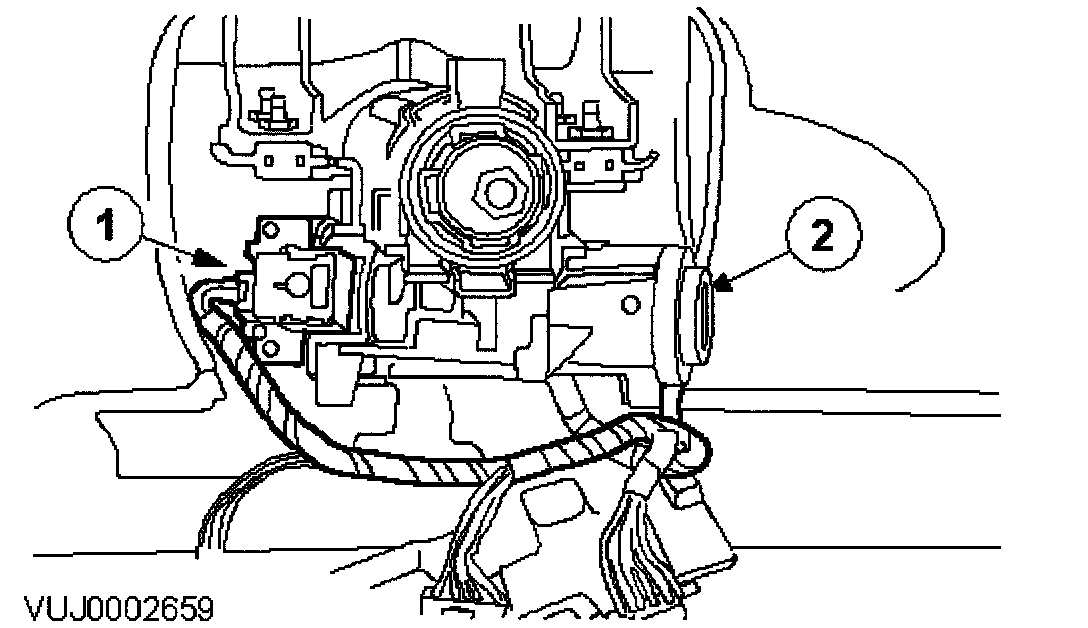

2. Disconnect the ignition switch electrical connector.
1) Disconnect the passive anti-theft system transceiver electrical connector.
2) Disconnect the ignition switch electrical connector.

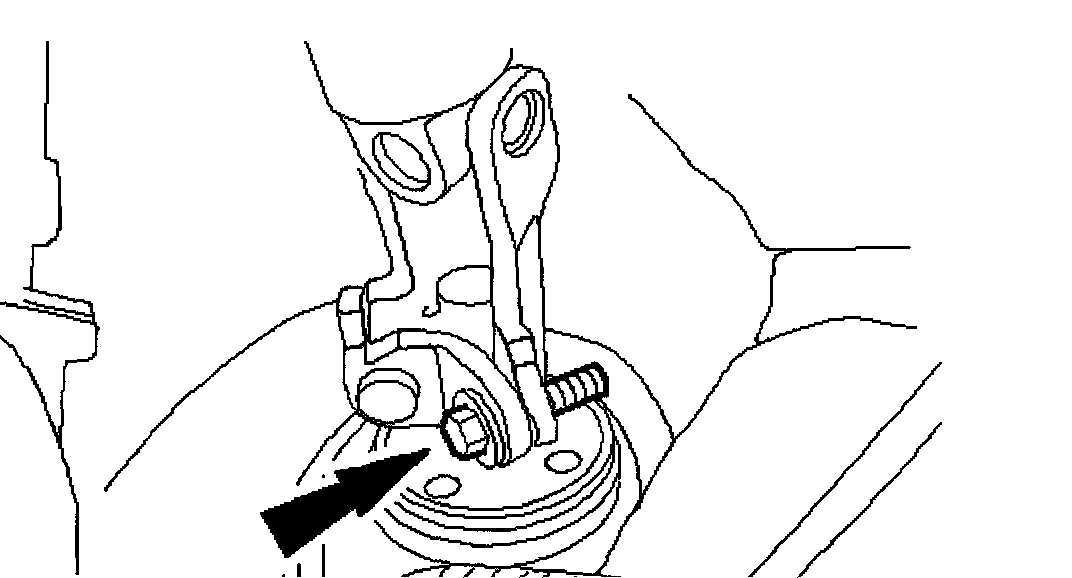

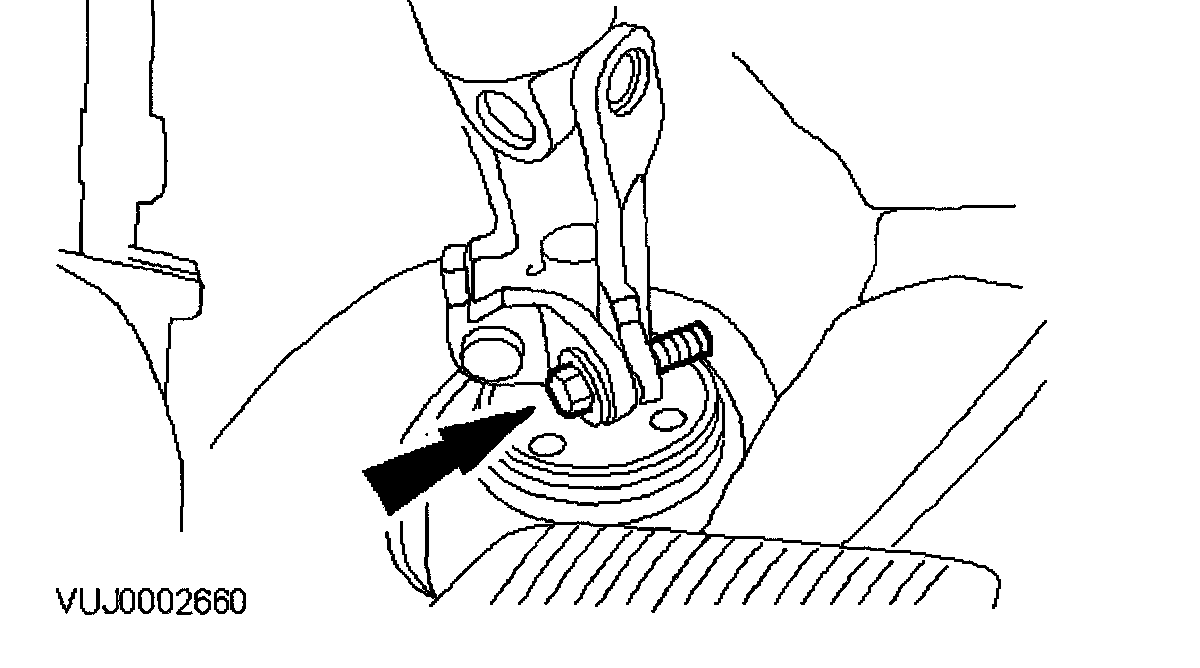

3. Remove the steering column lower retaining bolt.

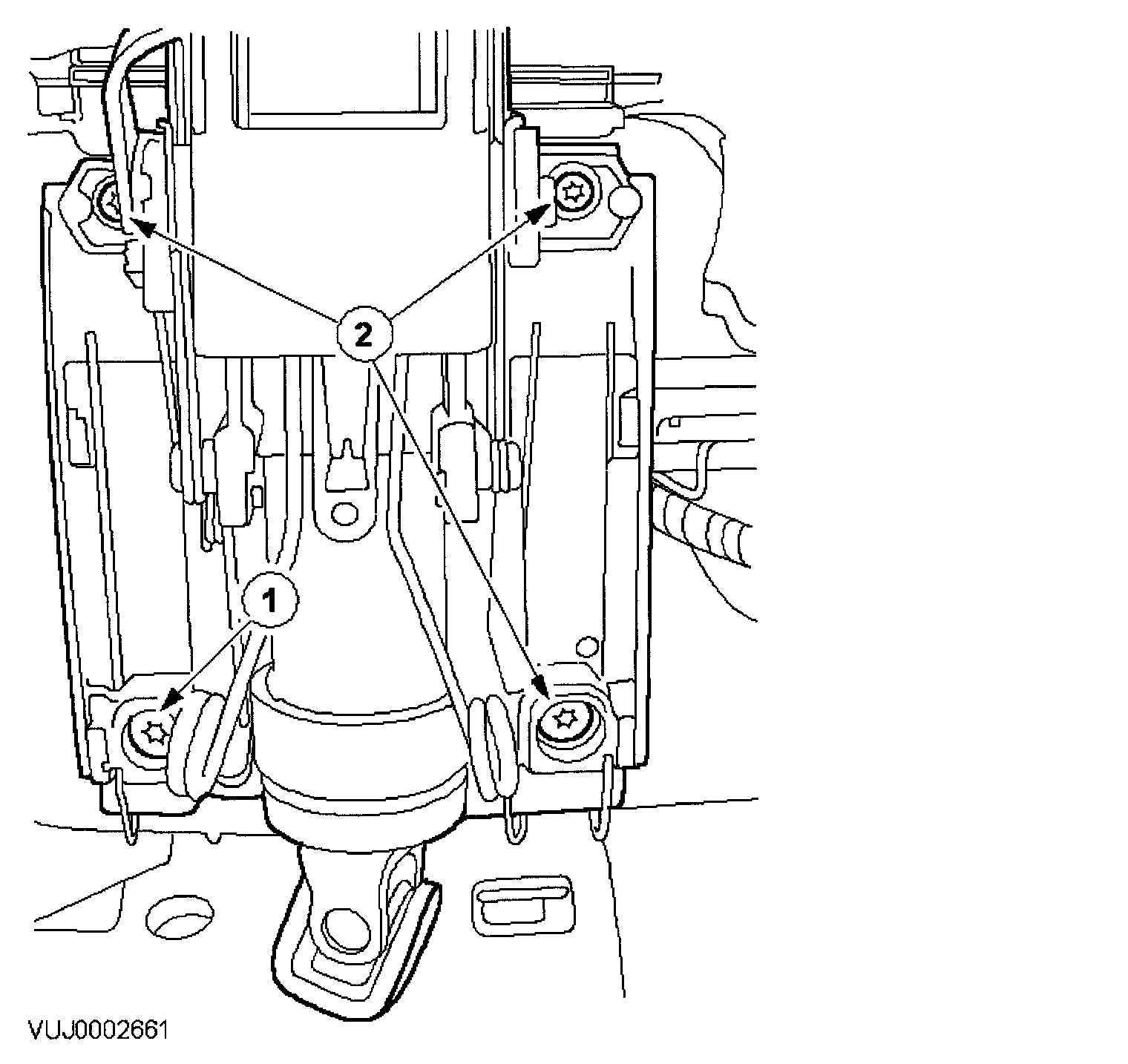

4. Remove the steering column.
1) Remove the steering column retaining bolts.
2) Remove the steering column.

Installation
1. To install, reverse the removal procedure.





^ Tighten to 25 Nm.





2. Tighten to 26 Nm.
