Flex Plate: Service and Repair

Removal
1. Remove the automatic transmission.





2. NOTE: Prevent the flexplate from rotating.

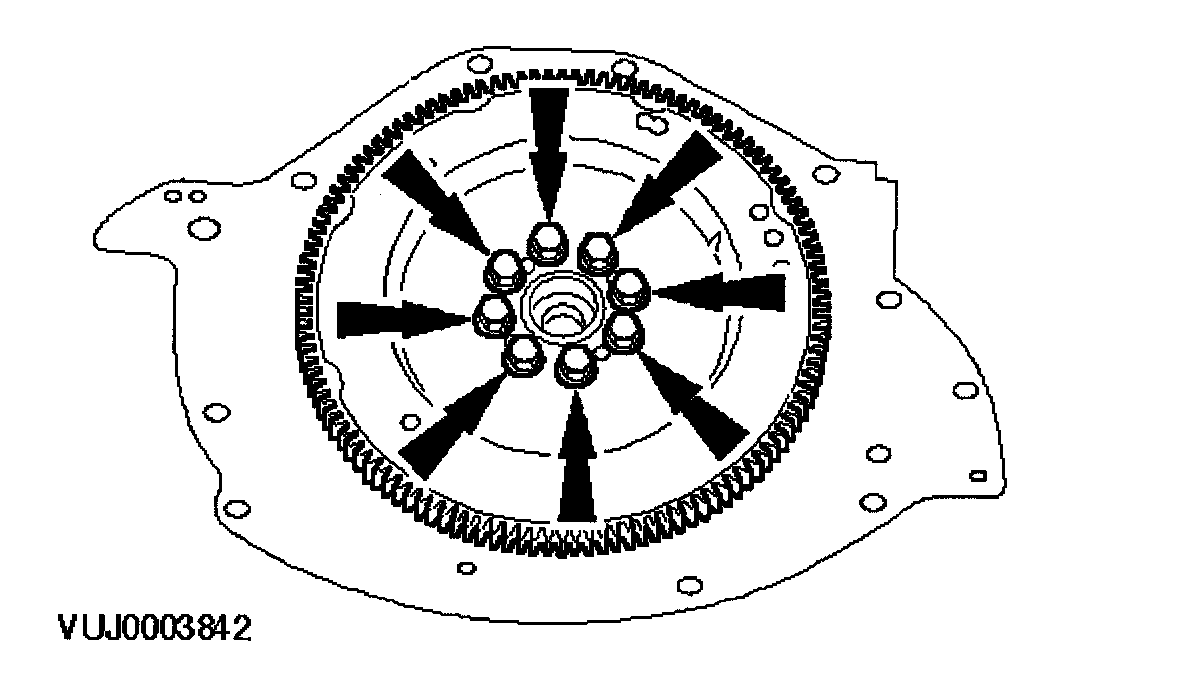

Remove the flexplate.

Installation





1. NOTE: Make sure the crankshaft and flexplate mating faces are clean before installation.

NOTE: The flexplate will only locate in one position.

NOTE: Tighten the retaining bolts working diagonally.

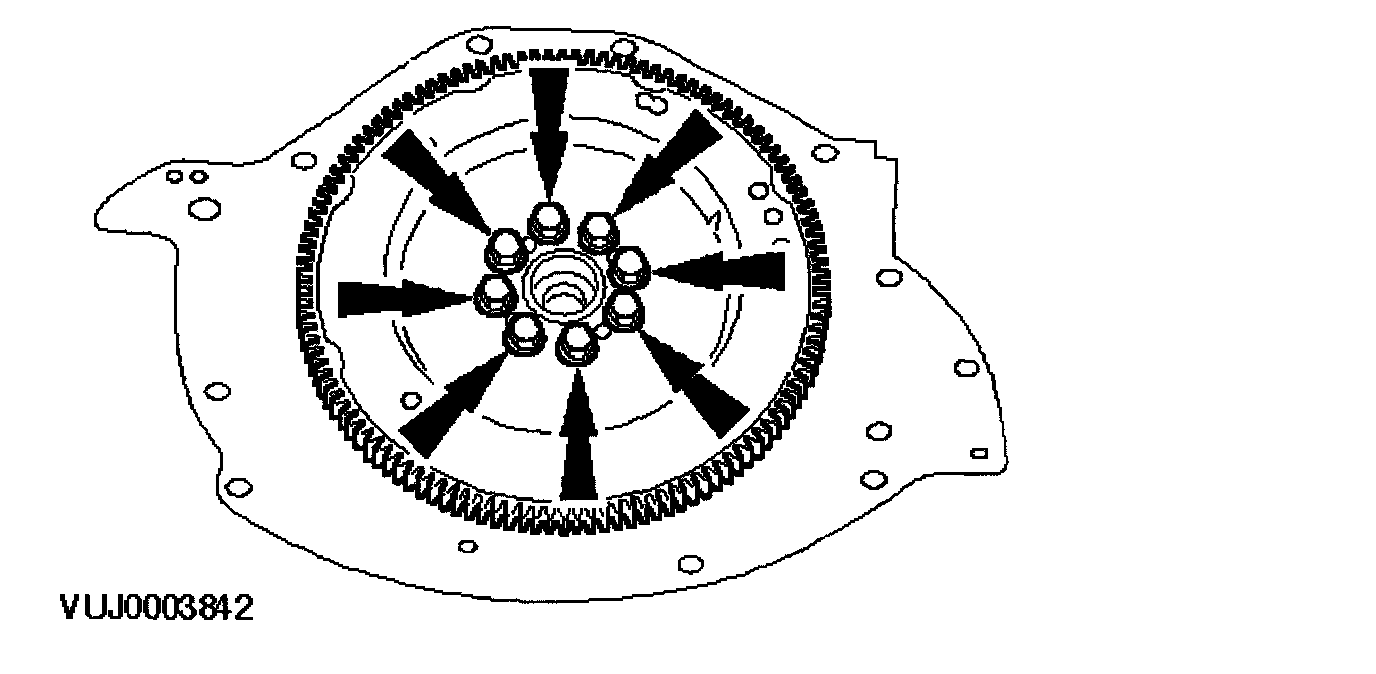

Install the flexplate.
- Prevent the flexplate from rotating.
- Tighten to 80 Nm.
2. Install the automatic transmission.
