Shift Linkage: Description and Operation

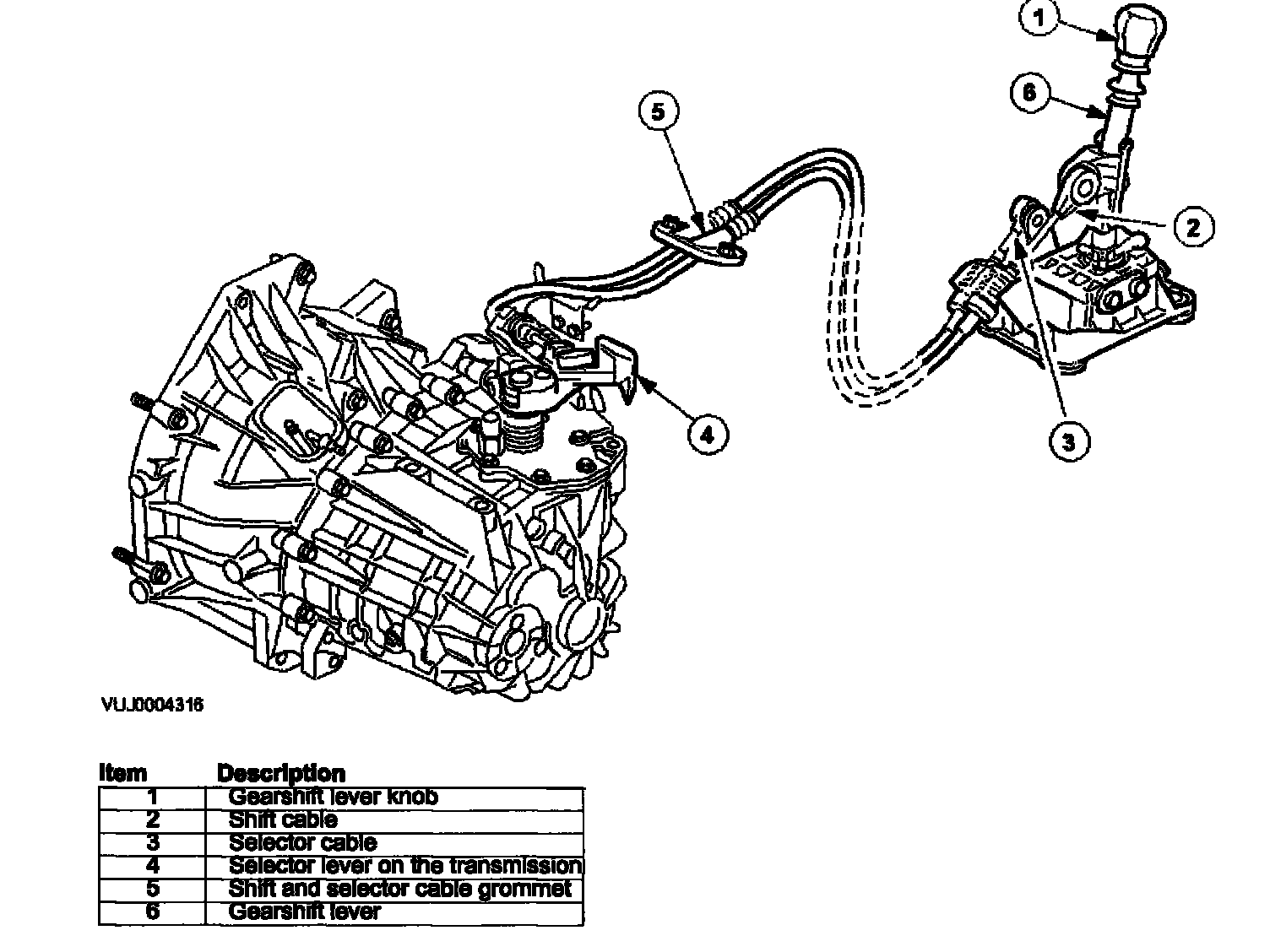

External controls





The shift is white and the selector cable is black. In order to detach the cables from the abutment brackets on the transmission and the gear lever, twist the locking tab of each abutment clockwise. As the shift and selector cable have a common grommet where they pass through the floor, they can only be changed as a pair.
