Initial Inspection and Diagnostic Overview

Clutch
As fault diagnosis starts when repairs are taken on, the following procedure is recommended:
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical damage.

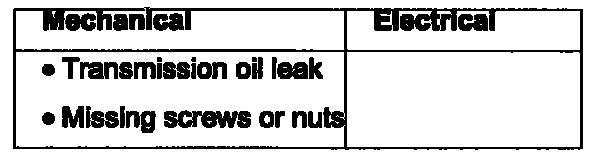

Visual Inspection Chart

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart. Symptom Related Diagnostic Procedures

Inspection and Verification - Manual Transmission
The following checks should be carried out before repairing or installing a new transmission:

Transmission Noise
If transmission noises are reported, check the transmission fluid level. If damage has occurred due to a lack of fluid, install a new transmission.

Oil Leakage
^ Check that the leaking fluid is actually transmission fluid and not hydraulic fluid (from the hydraulically operated clutch) or engine oil.
^ Check the transmission fluid level and, as necessary, drain off any excess fluid.
^ Clean the transmission and the adjacent areas carefully before the road test.
