Power Seat Control Module: Diagrams

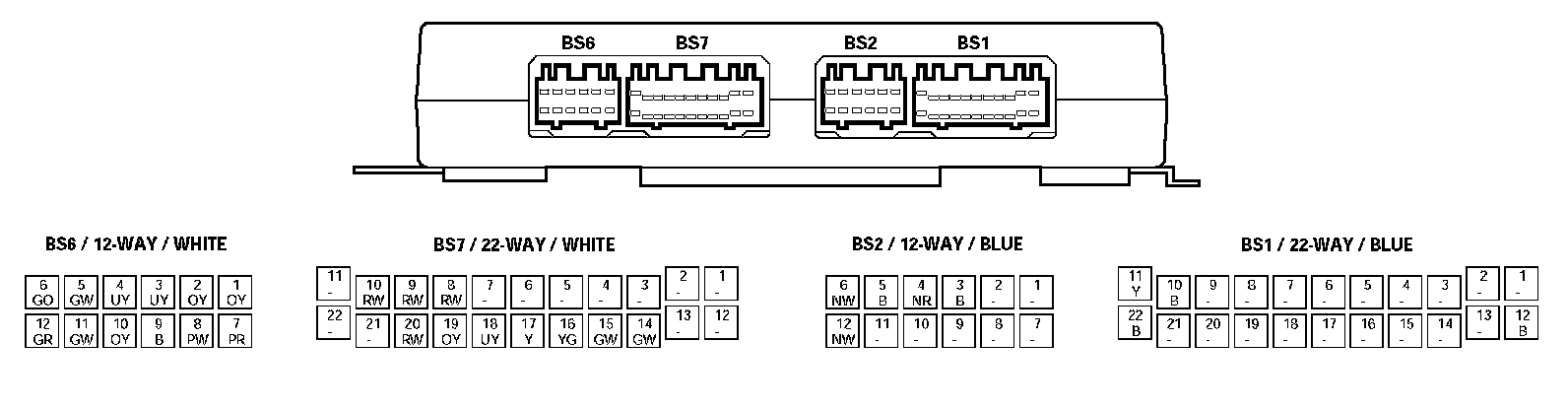

DRIVER SEAT CONTROL MODULE: MEMORY:

Control Module Pin Out Information:

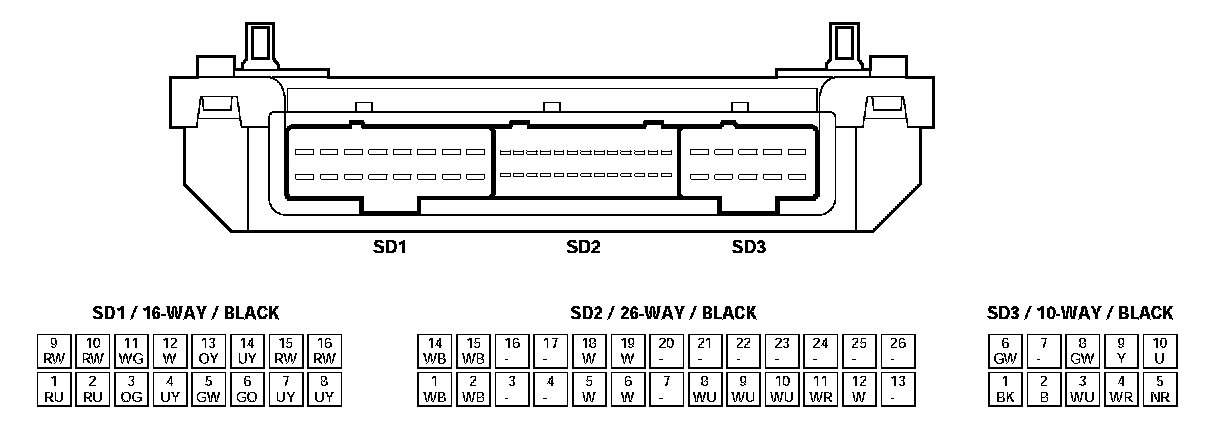

PASSENGER SEAT CONTROL MODULE:

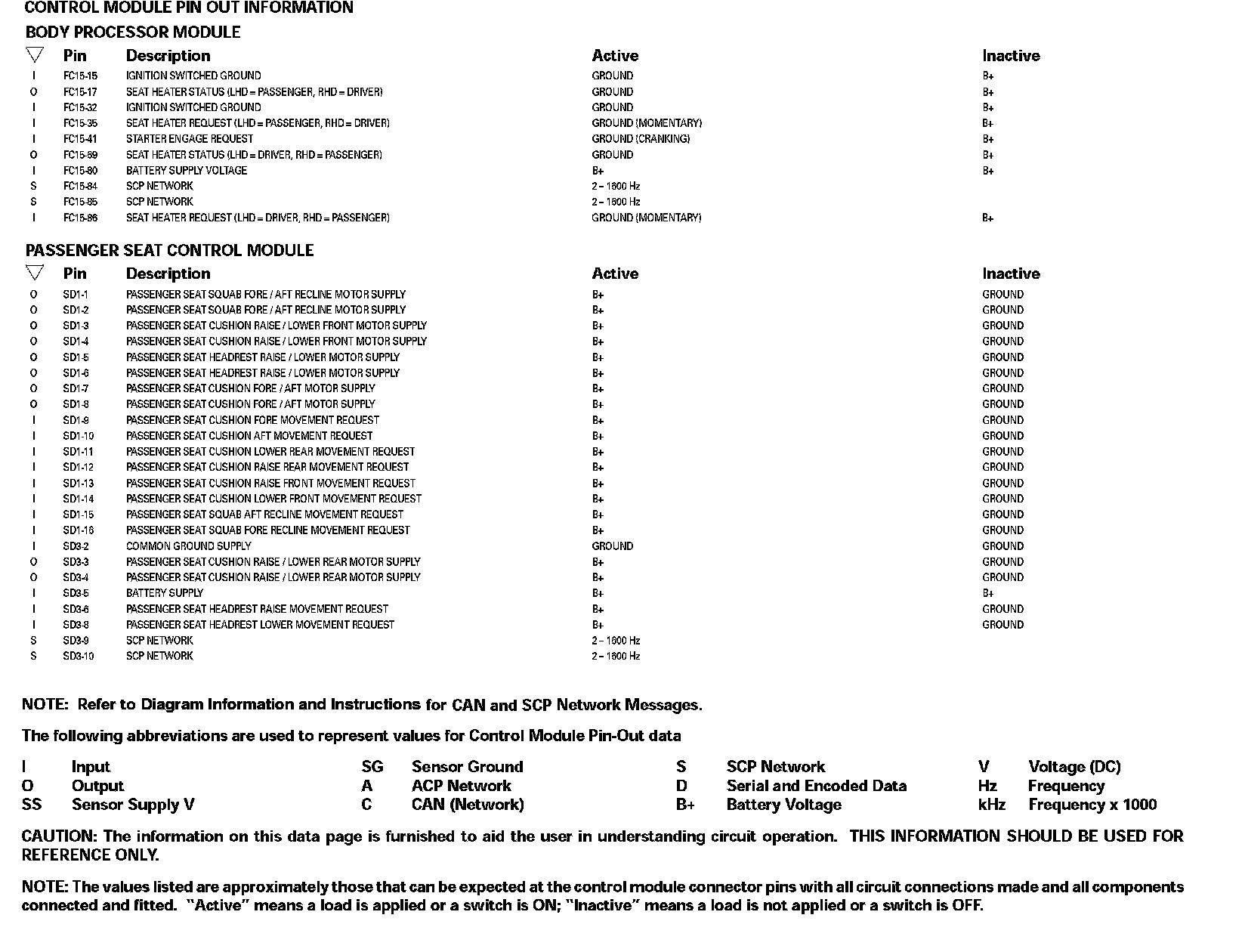

Control Module Pin Out Information:

DRIVER SEAT CONTROL MODULE: NON MEMORY:

Control Module Pin Out Information:

REAR SEAT CONTROL MODULE:

Control Module Pin Out Information:
