Seats

Seats

Front Seats







All front seats are equipped with electric height adjustment. In addition, both front seats are available with manual or power forward and rearward adjustment, manual or power operated headrest adjustment, 12 way electric adjustment, memory controlled 12 way adjustment and integral seat heating. A side air bag module is installed in the outboard squab wing of each front seat. Each seat has a non-handed, one-piece frame incorporating cushion and squab frames, side air bag support bracket and seat adjuster mechanisms. Sear switch packs are installed on the outboard side of driver and passenger seats, and control modules are installed in the base of each seat. Both the driver and front passenger seat are secured to the vehicle floor at four points.

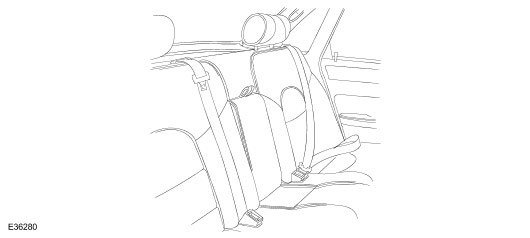

Rear Seats







The standard rear seat is of the fixed, bench type with full width removable cushion. Two individual rear seats are fitted to certain long wheelbase models. Both types of rear seat are available with thermostatically controlled heating of the cushion and squab. Individual rear seats are electrically adjustable for squab recline (via fore and aft movement), head restraint height and lumbar support. Separate motors provide adjustment of each seat cushion and head restraint and an electrically-driven air compressor provides variation of lumbar support. Seat adjustment is controlled via switches installed on a panel in a rear extension to the centre console.
