Slide, Powered Front Seat

Slide, Powered Front Seat

Removal

1. WARNING: Following disconnection of the battery a period of at least one minute must be allowed to elapse before working on a front seat with a side airbag fitted.

Remove battery cover and disconnect ground cable from battery terminal.
2. Remove front seat from vehicle.
3. Invert seat for access.

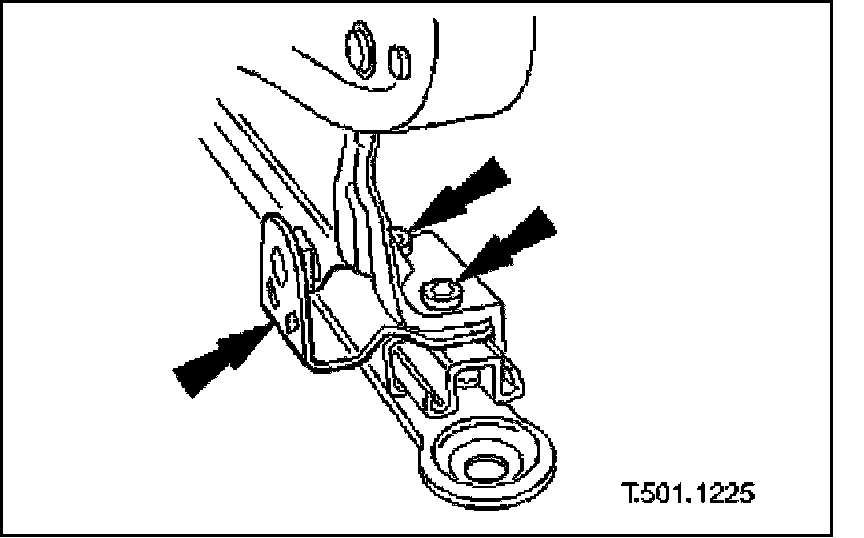

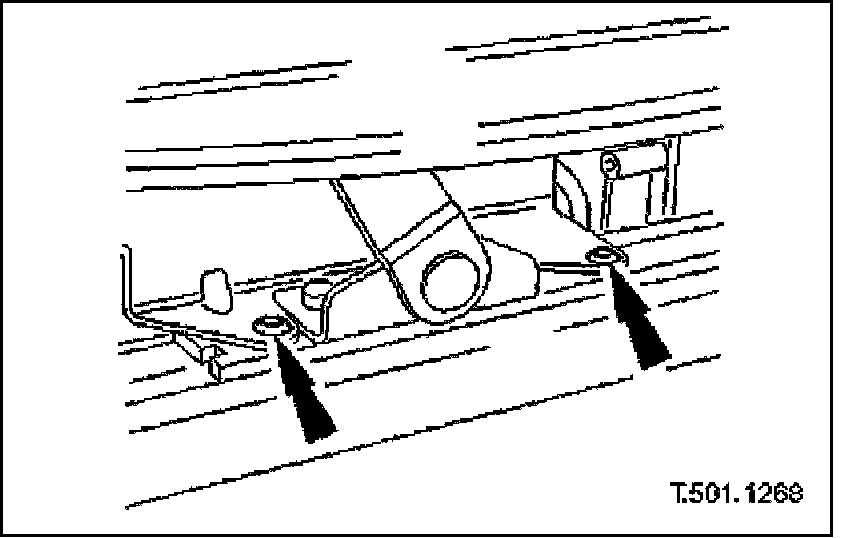

4. Slacken and remove LH slide securing bolts and remove seat belt anchor mounting bracket.

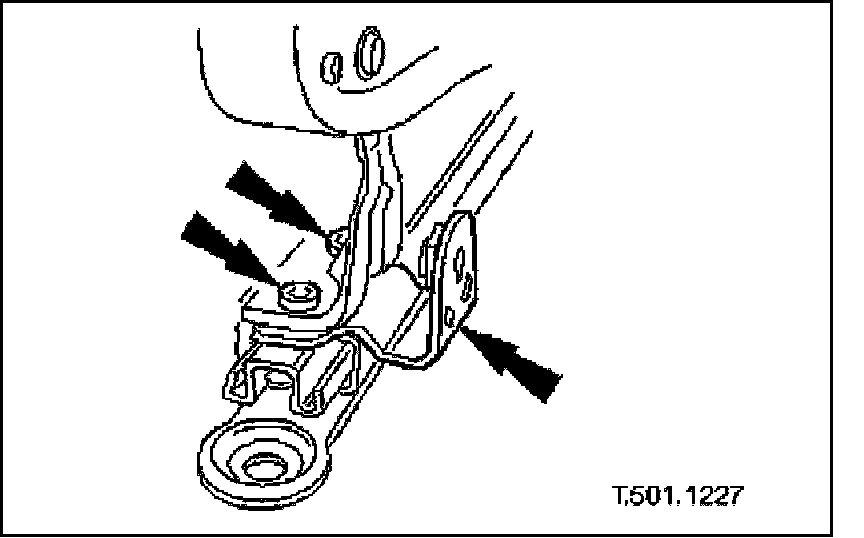

5. Slacken and remove RH slide securing bolts and remove seat belt buckle mounting bracket.







6. Disconnect seat cushion tilt motor drive cables.







7. Remove slide assembly.
1. Position slide/motor assembly for access and release seat harness securing clips.
2. Drill out pop rivets securing slide to motor frame.
8. Withdraw LH slide from seat motor potentiometer/gearbox assembly.

Installation

1. Fit and fully seat slide to potentiometer/gearbox assembly.
2. Position motor frame on slide assembly and secure with new pop rivets.
3. Connect seat cushion tilt motor drive cables.
4. Secure seat harness in clips.
5. Position slide assembly on seat.
6. Fit and align RH seat belt buckle mounting bracket between slide and seat pivot bracket and fit but do not tighten securing bolts.
7. Fit and align LH seat belt anchor bracket between slide and seat pivot bracket and fit but do not tighten securing bolts.
8. Fit but do not tighten RH and LH slide front securing bolts.
9. Finally tighten slide front and rear securing bolts.
10. Fit front seat to vehicle.
