Fig 05.2




AJ27 SC Automatic Transmission

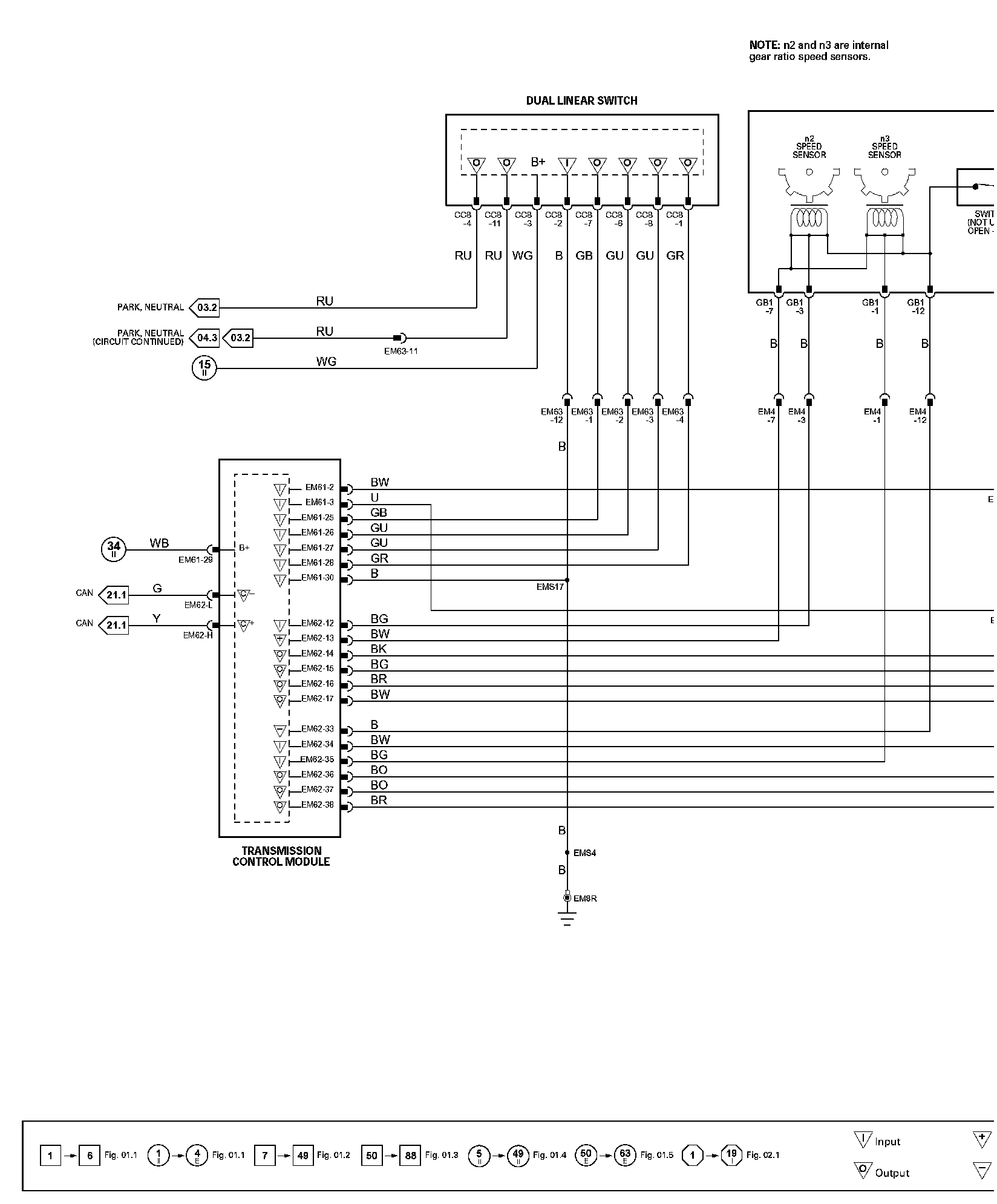

��fWiring Diagram:






Control Module Pin Out Information:

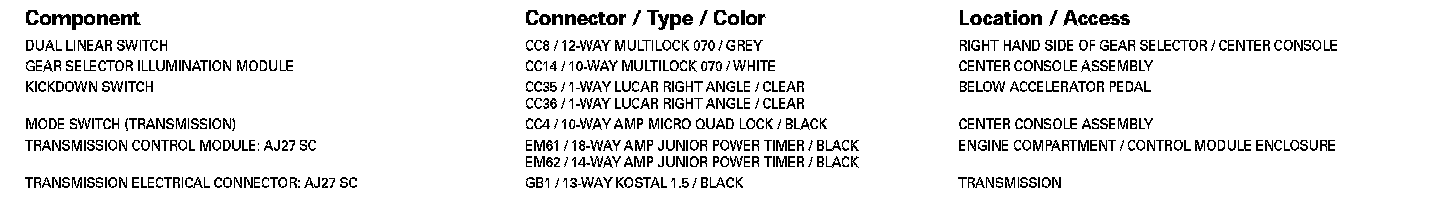

Components:

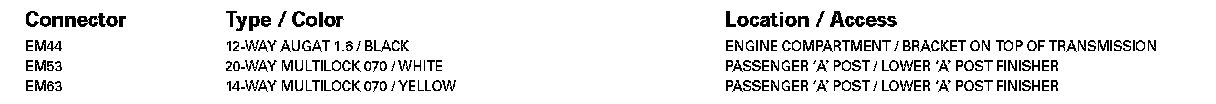

Harness-To-Harness Connectors:

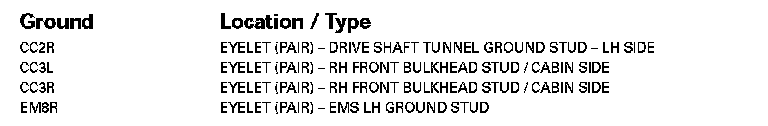

Grounds:
