Fig 12.5
Fig 12.5
Passenger Seat: 5-Way Powered / LWB

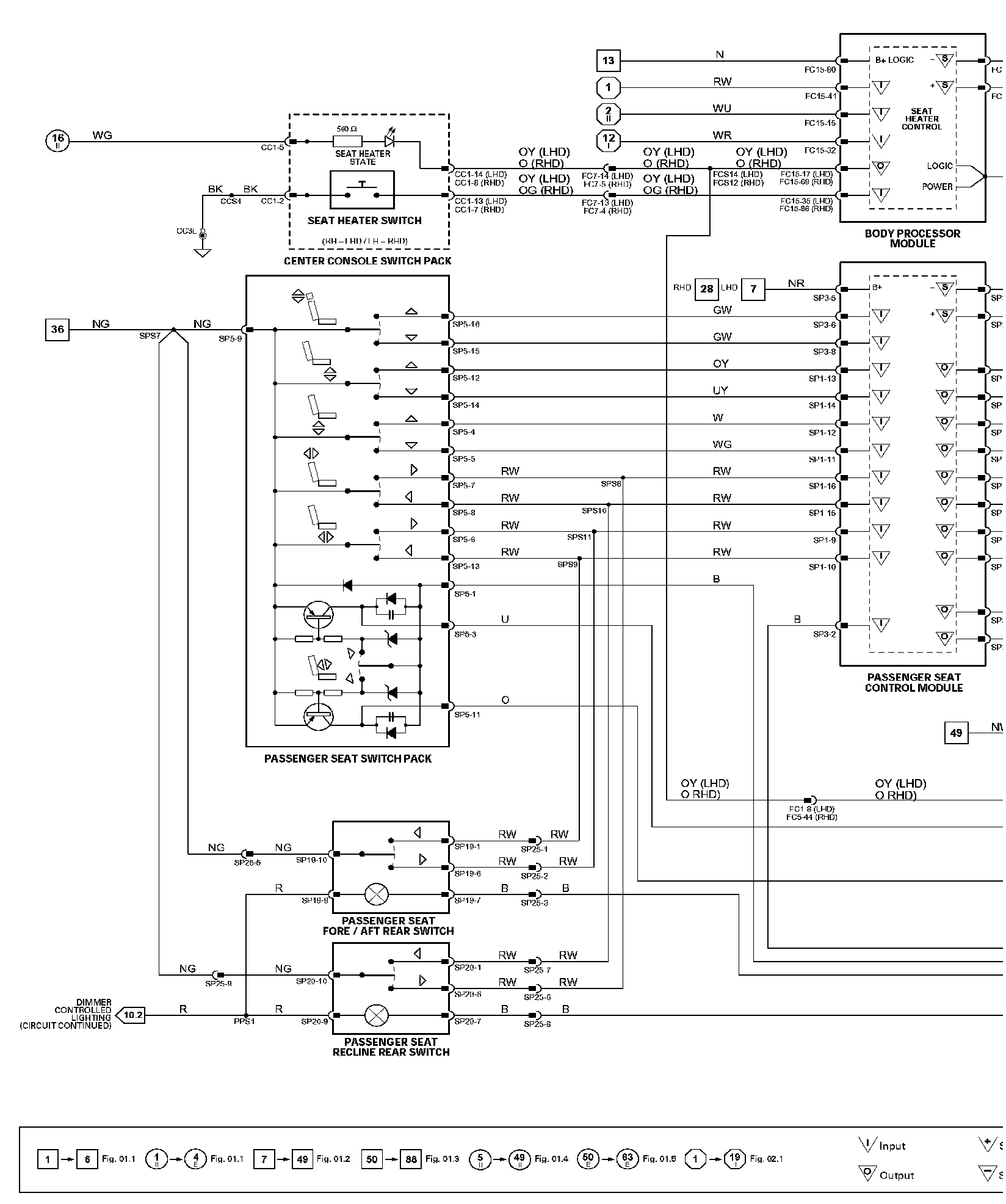

�R#Wiring Diagram:
Control Module Pin Out Information:

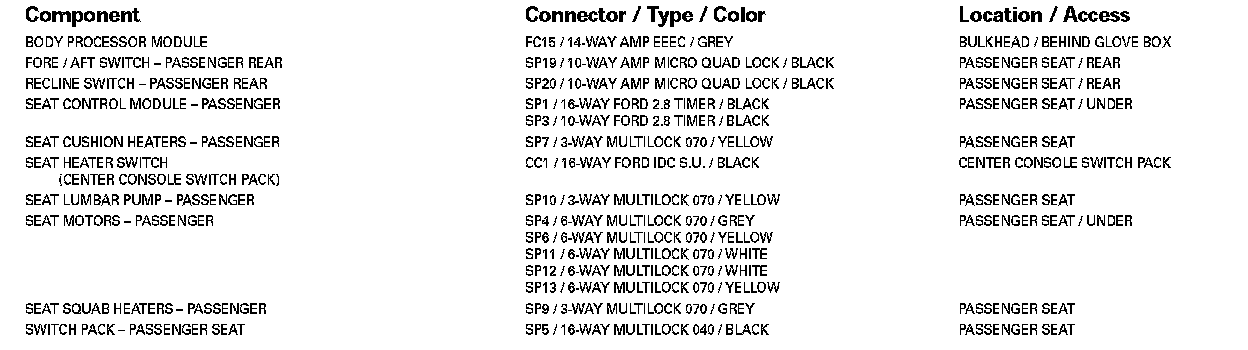

Components:
Relays:

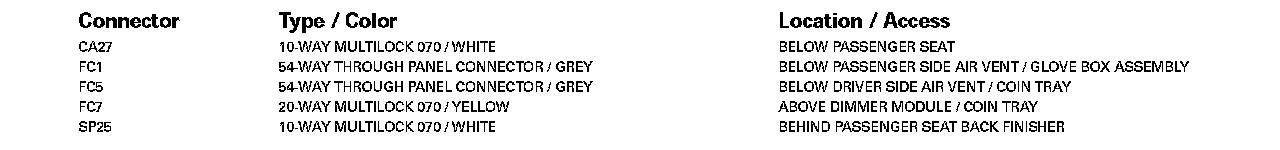

Harness-To-Harness Connectors:

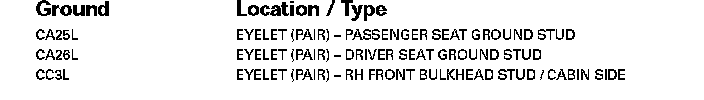

Grounds:
