Home >> Jaguar >> 2003 >> XJ (X308) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig 12.6

Fig 12.6




Heaters Only Front Passenger Seat

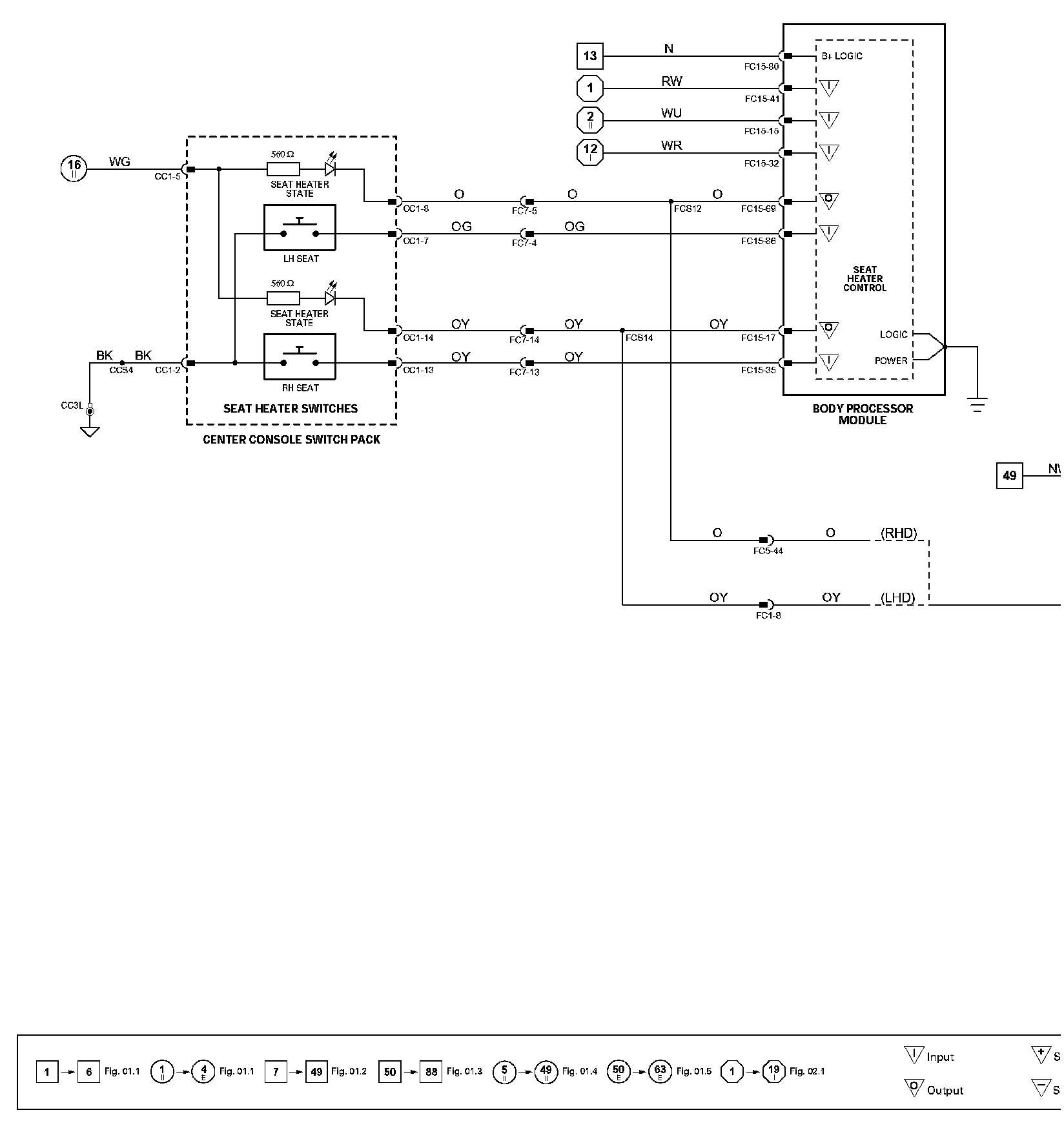

�fS#Wiring Diagram:

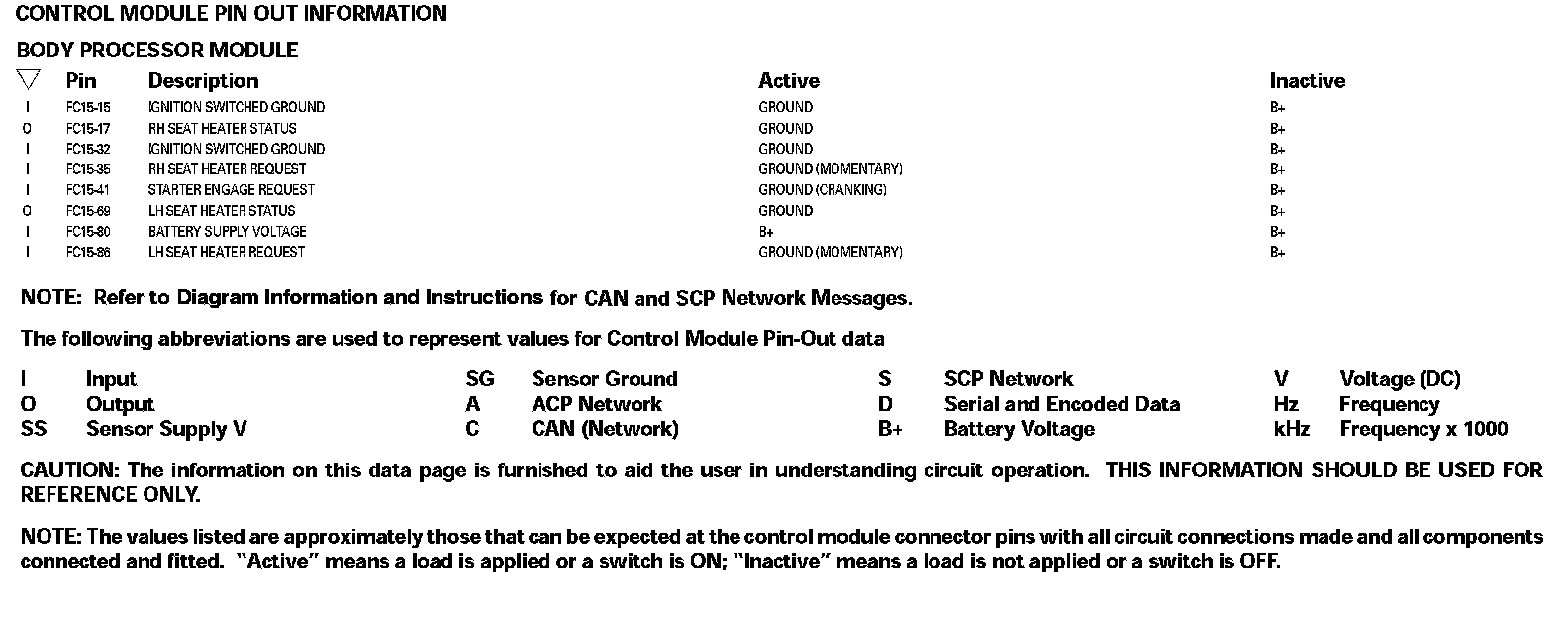

Control Module Pin Out Information:

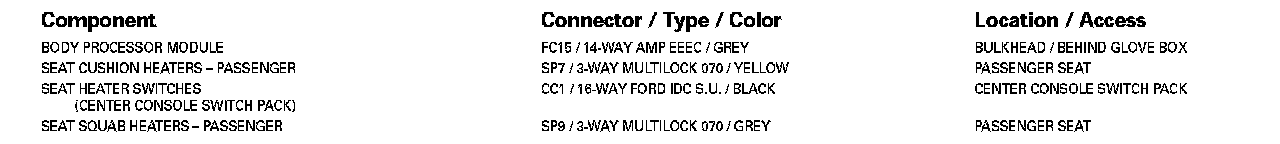

Components:






Relays:

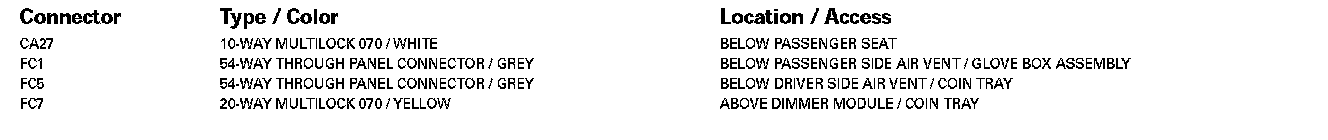

Harness-To-Harness Connectors:

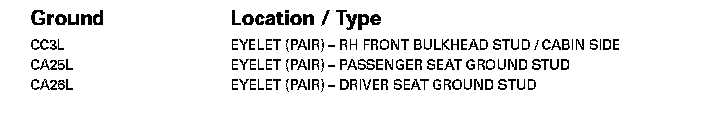

Grounds:
