Fuel Delivery and Air Induction: Service and Repair

Fuel Injection Supply Manifold

Removal
1. Remove the fuel injection supply manifold.






2. Remove the fuel pressure sensor.

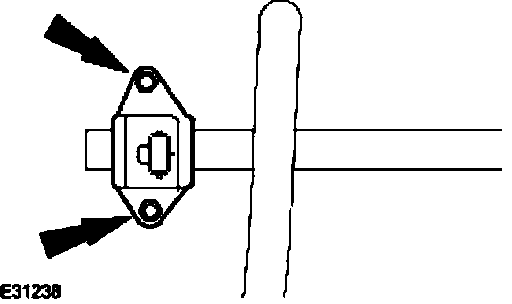

- Remove the securing bolts.
- Remove and discard the O-ring seals.

Installation






1. To install, reverse removal procedure.
- Install new fuel pressure sensor O-ring seals. Lubricate the O-ring seals with clean engine oil to aid installation.
- Tighten to 5 Nm.
