Supercharger: Testing and Inspection

Supercharger Cooling
1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical and electrical damage.

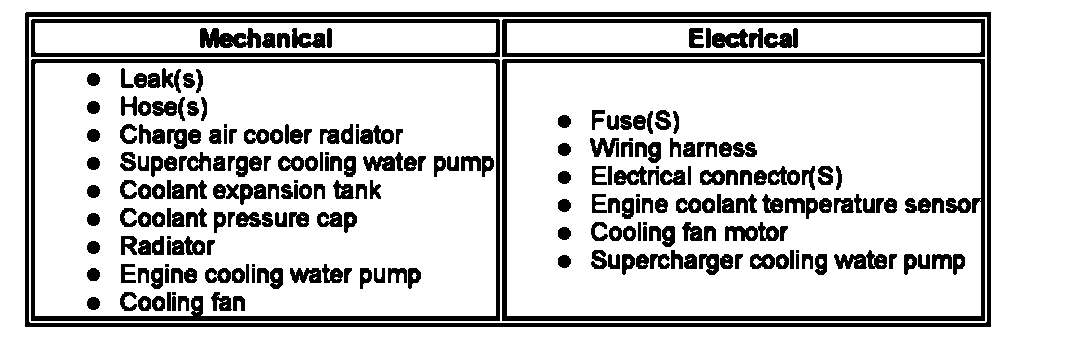

Visual Inspection Chart

1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
2. If the cause is not visually evident, verify the symptom and refer to the Jaguar Approved Diagnostic System.
