Body and Frame: Description and Operation

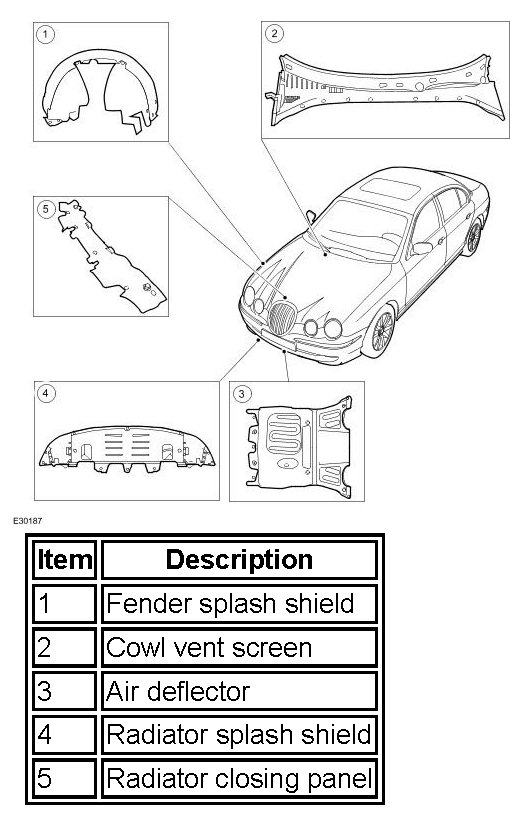

Front End Body Panels







Fender Splash Shield

Protective injection moulded plastic liners are fitted to the inside of the fenders, these help prevent dirt and water ingress into the vehicle body.

Air Deflector

An air deflector is retained to the front subframe. The air deflector assists the flow of air under the vehicle, it also gives protection to the engine bay from dirt and water ingress. On top of the air deflector an acoustic pad is fitted which is covered by a heat shield, this is designed to reduce engine and road noise.

Radiator Splash Shield

The radiator splash shield is fitted to assist air flow through the cooling pack. It is retained to the bottom of the front bumper cover, both front fender splash shields, and to the front subframe.

Radiator Closing Panel

The radiator closing panel is fitted to the body by retaining clips and is easily removed to give access to the rear of the headlamps.

Cowl Vent Screen

An injection molded plastic cowl vent screen is retained to the bodywork by retaining clips and screws. The cowl vent screen allows easy access to the wiper components and the ventilation system odor filter.
