Ignition Switched Power Distribution: I (Accessory)

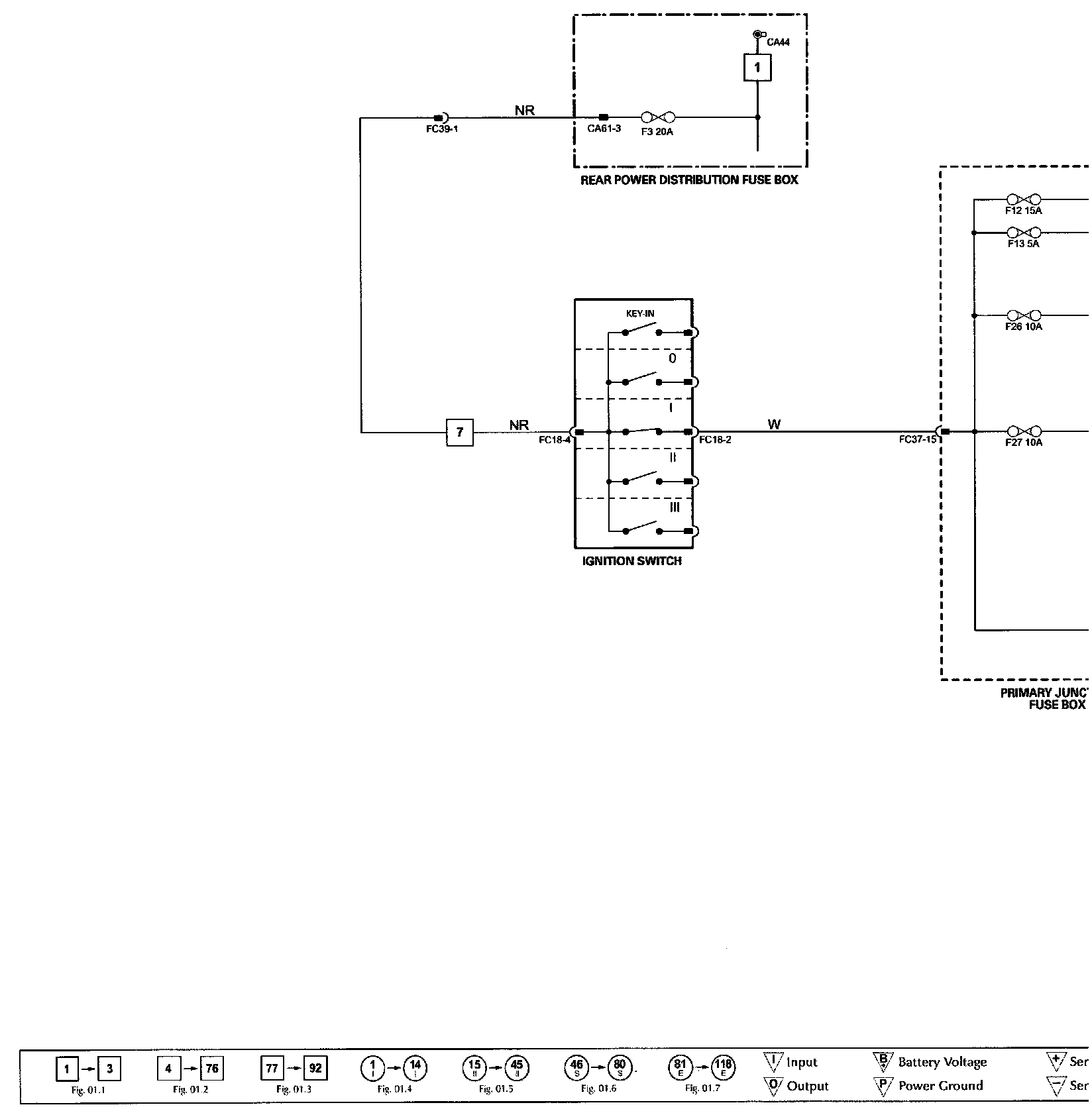

X��Wiring Diagram:






Components:

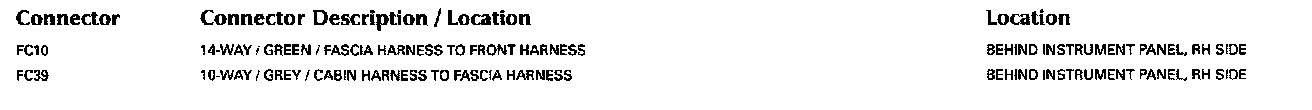

Harness In-Line Connectors:
