Fig 05.1




Dynamic Stability Control

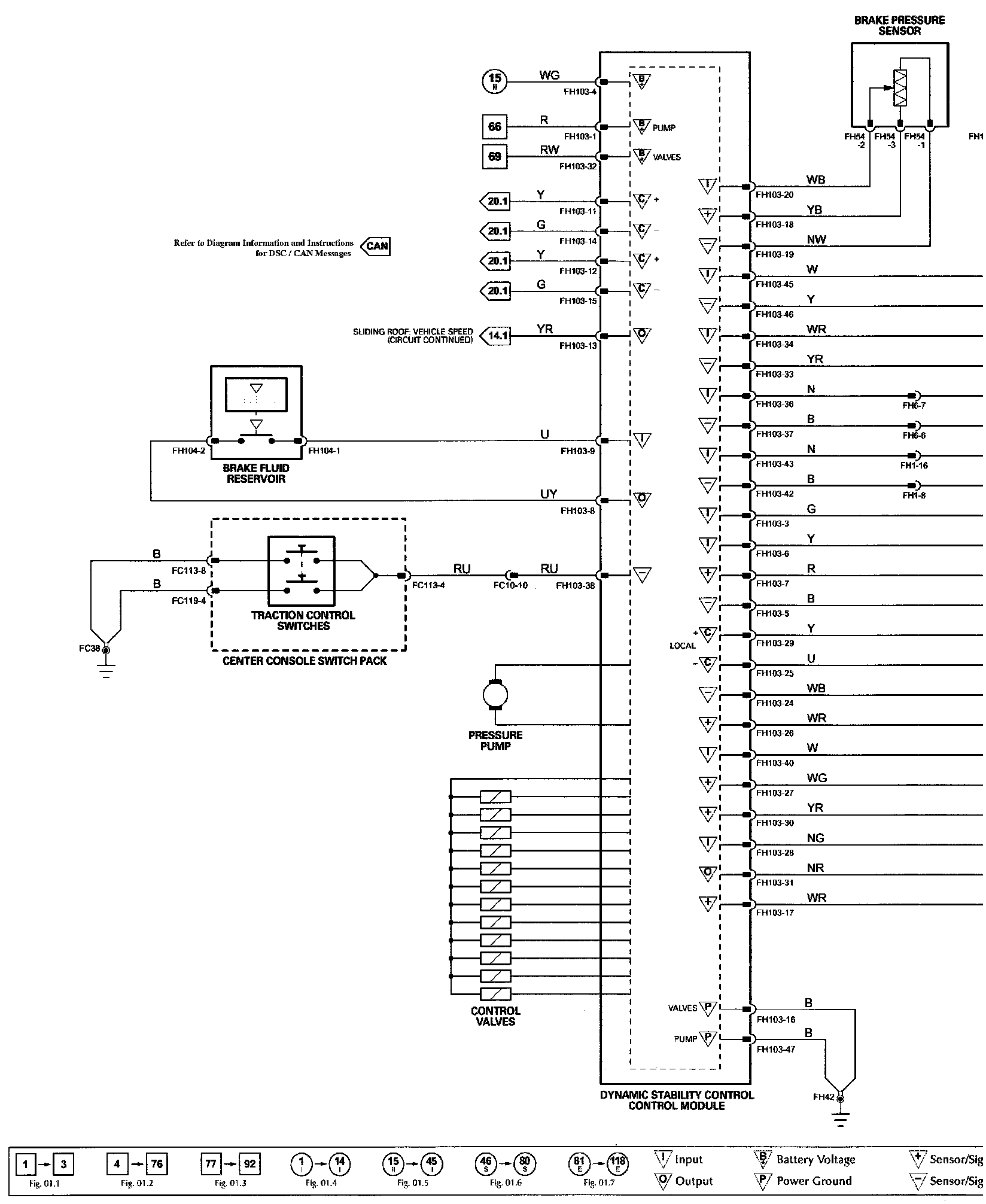

s�Wiring Diagram:

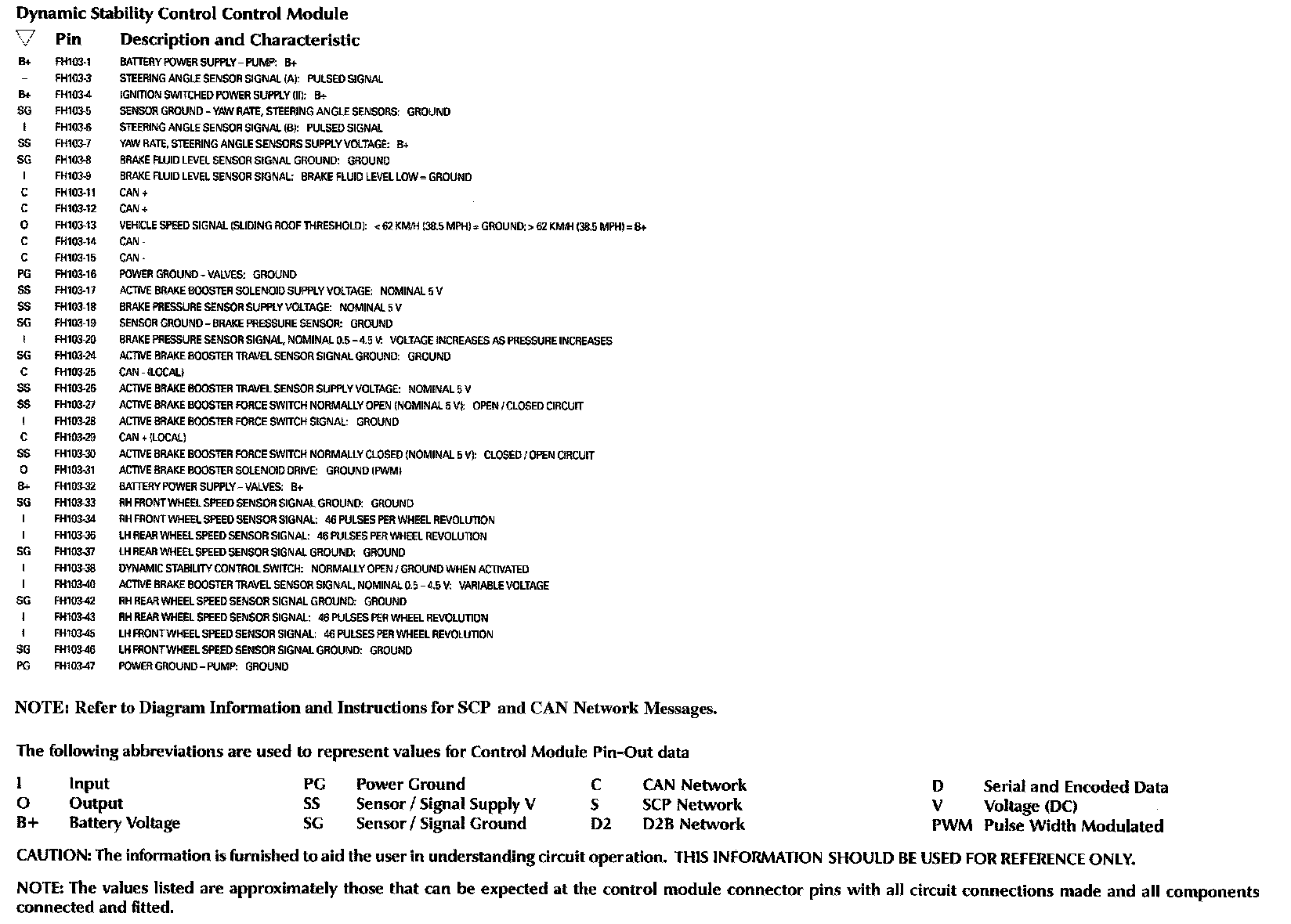

Control Module Pin-Out Information:

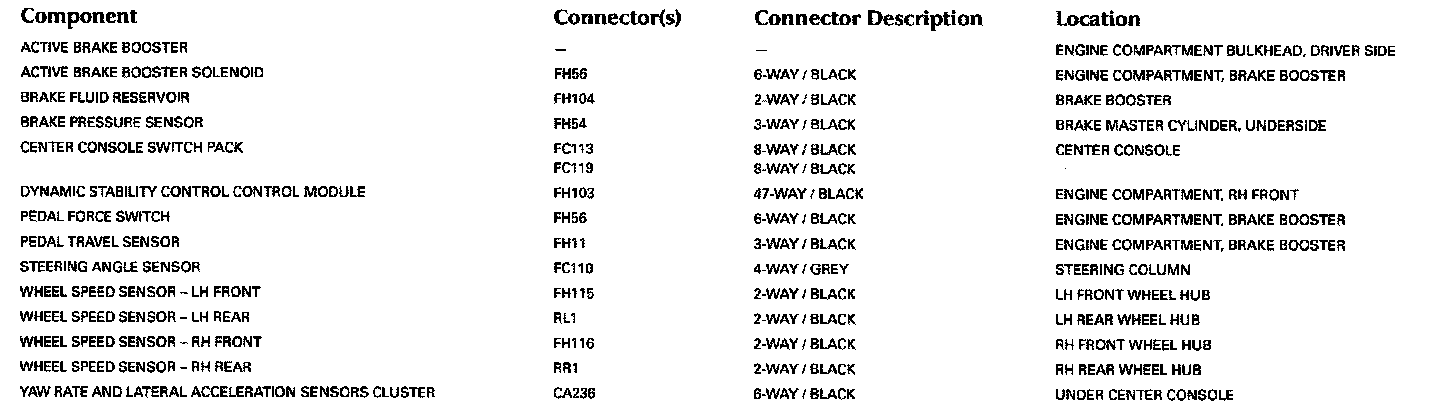

Components:

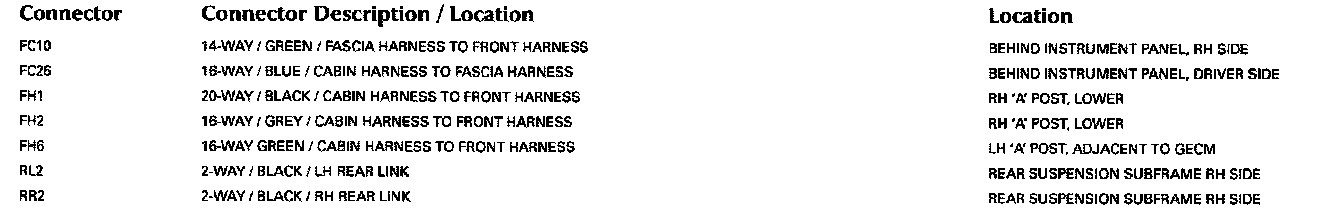

Harness In-Line Connectors:






Grounds:
