Fig 08.2
Fig 08.2
Exterior Lighting: Front - HID

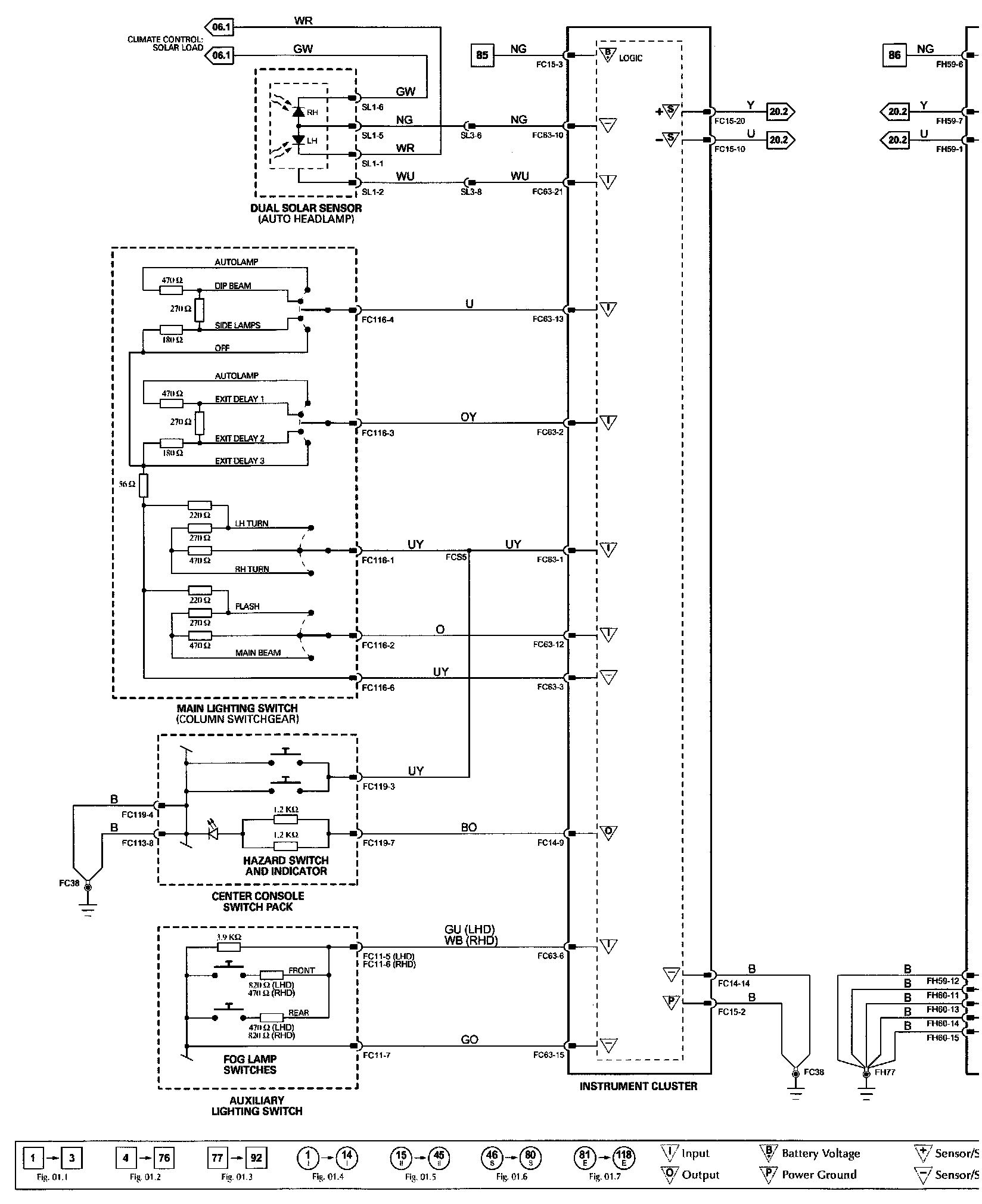

��0%Wiring Diagram:

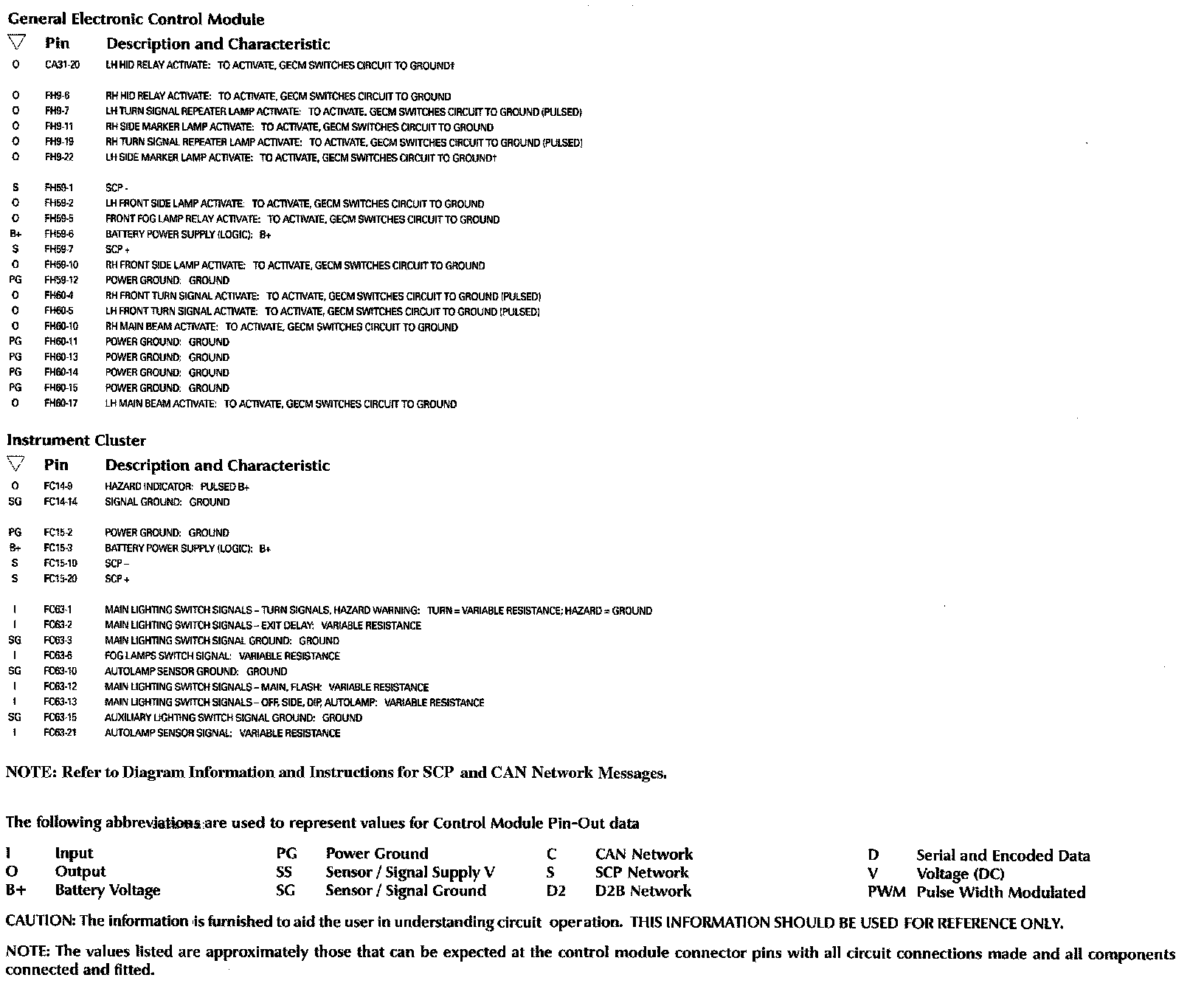

Control Module Pin-Out Information:

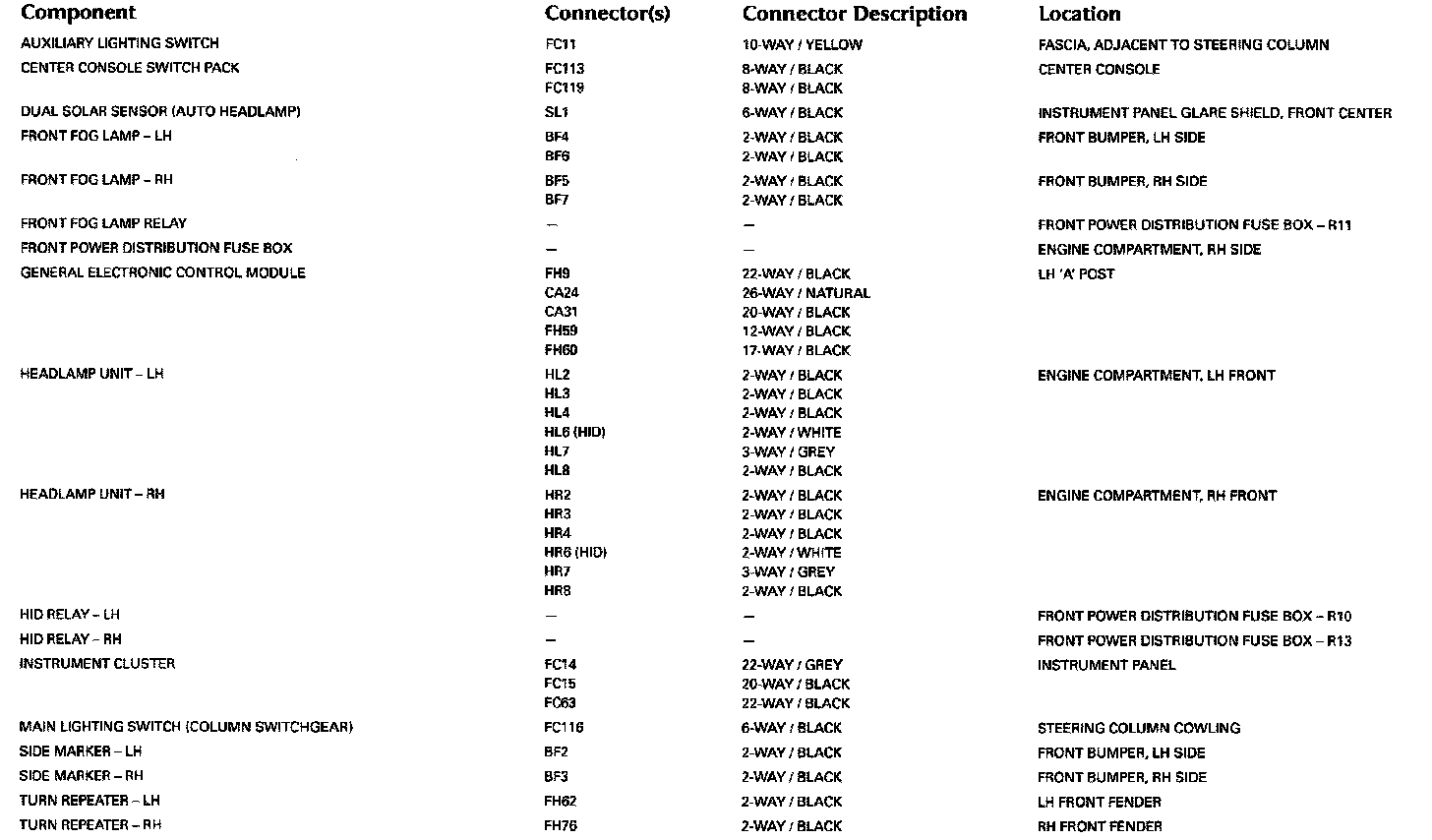

Components:

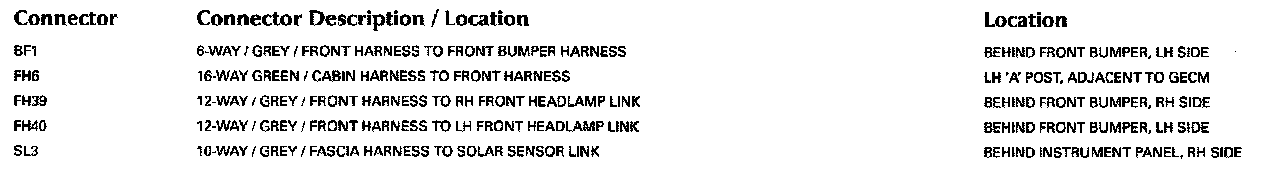

Harness In-Line Connectors:

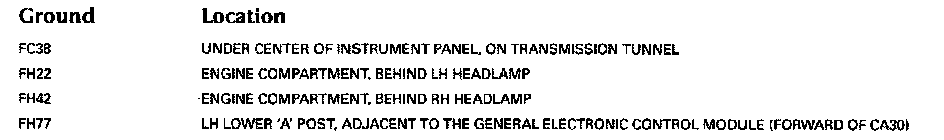

Grounds:
