Fig 08.3




Exterior Lighting: Rear

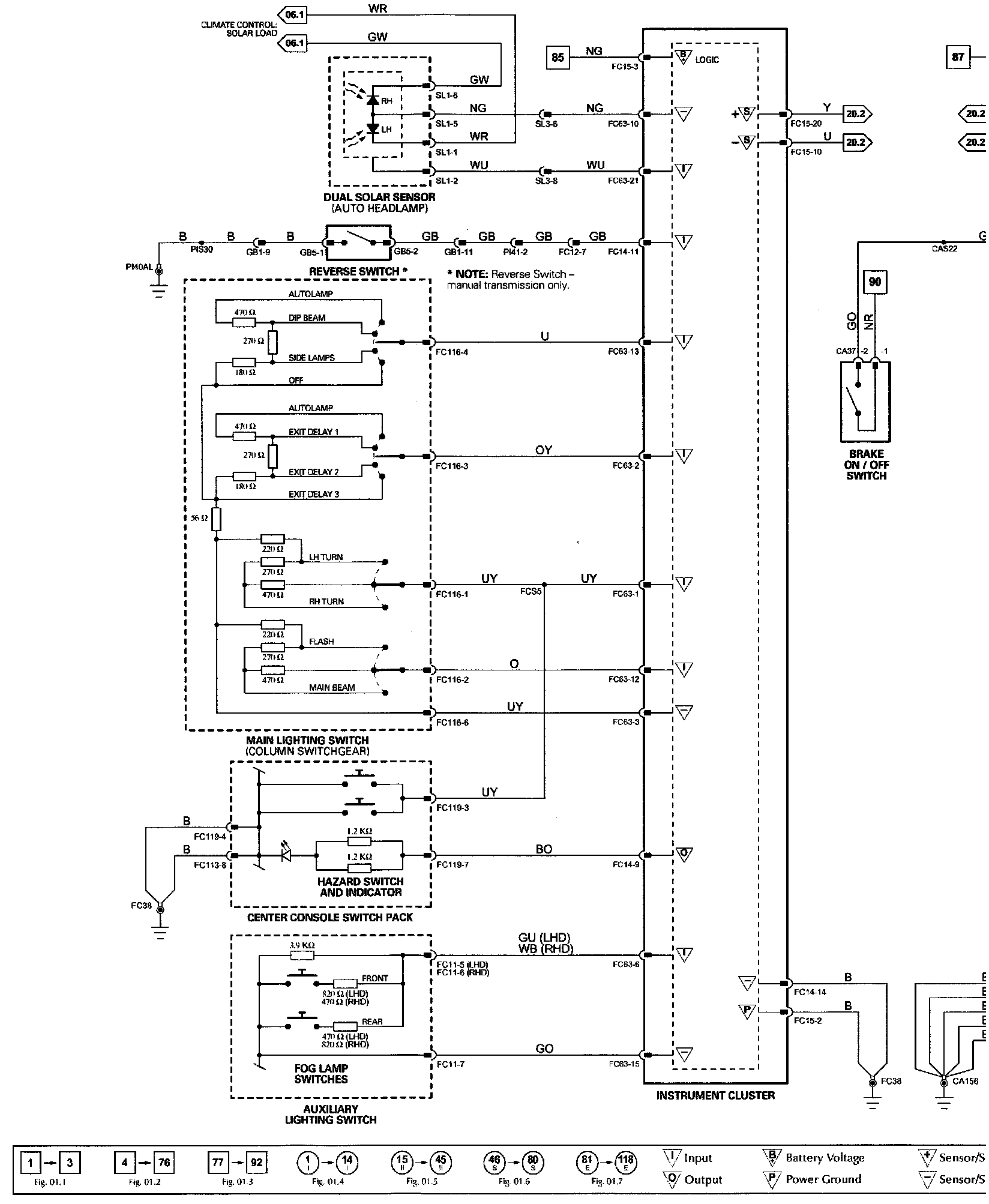

�}%Wiring Diagram:






Control Module Pin-out Information:

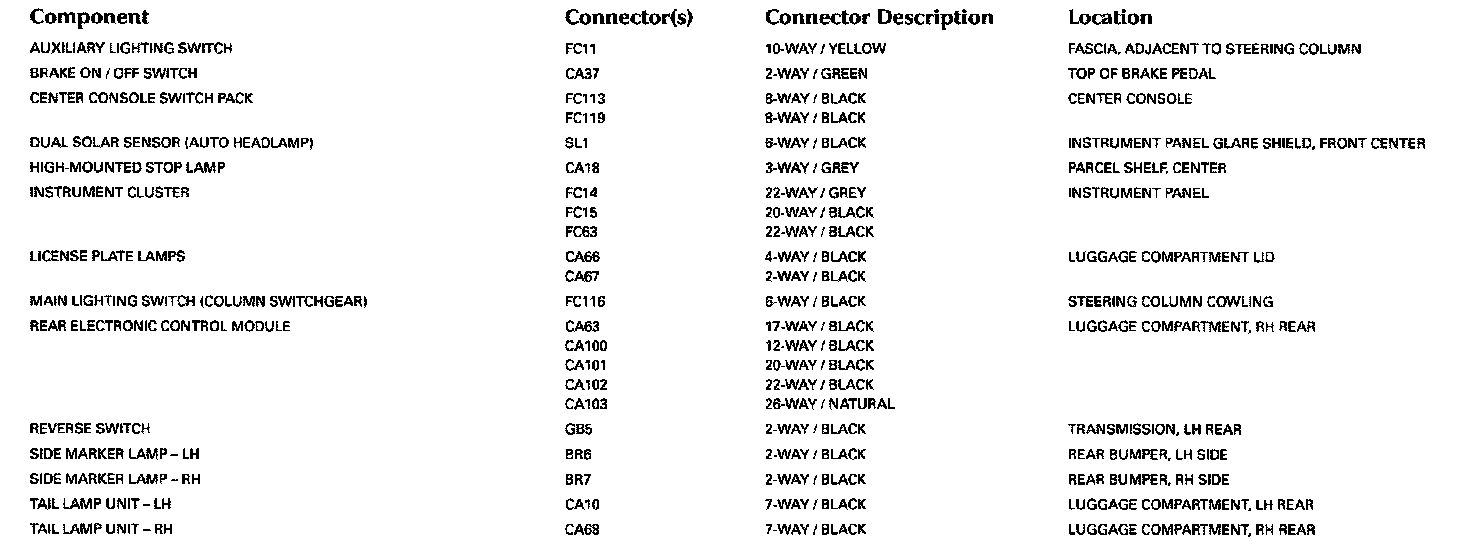

Components:






Harness In-Line Connectors:

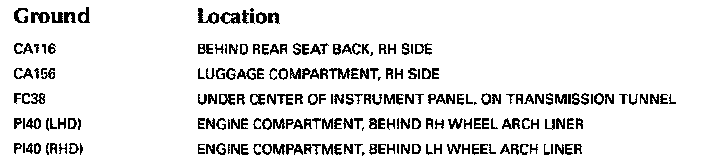

Grounds:
