Jaguar
>>
2004
>>
S-Type (X200) V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Number
>>
Fig 08.4
Fig 08.4
Exterior Lighting: Rear - Trailer Towing

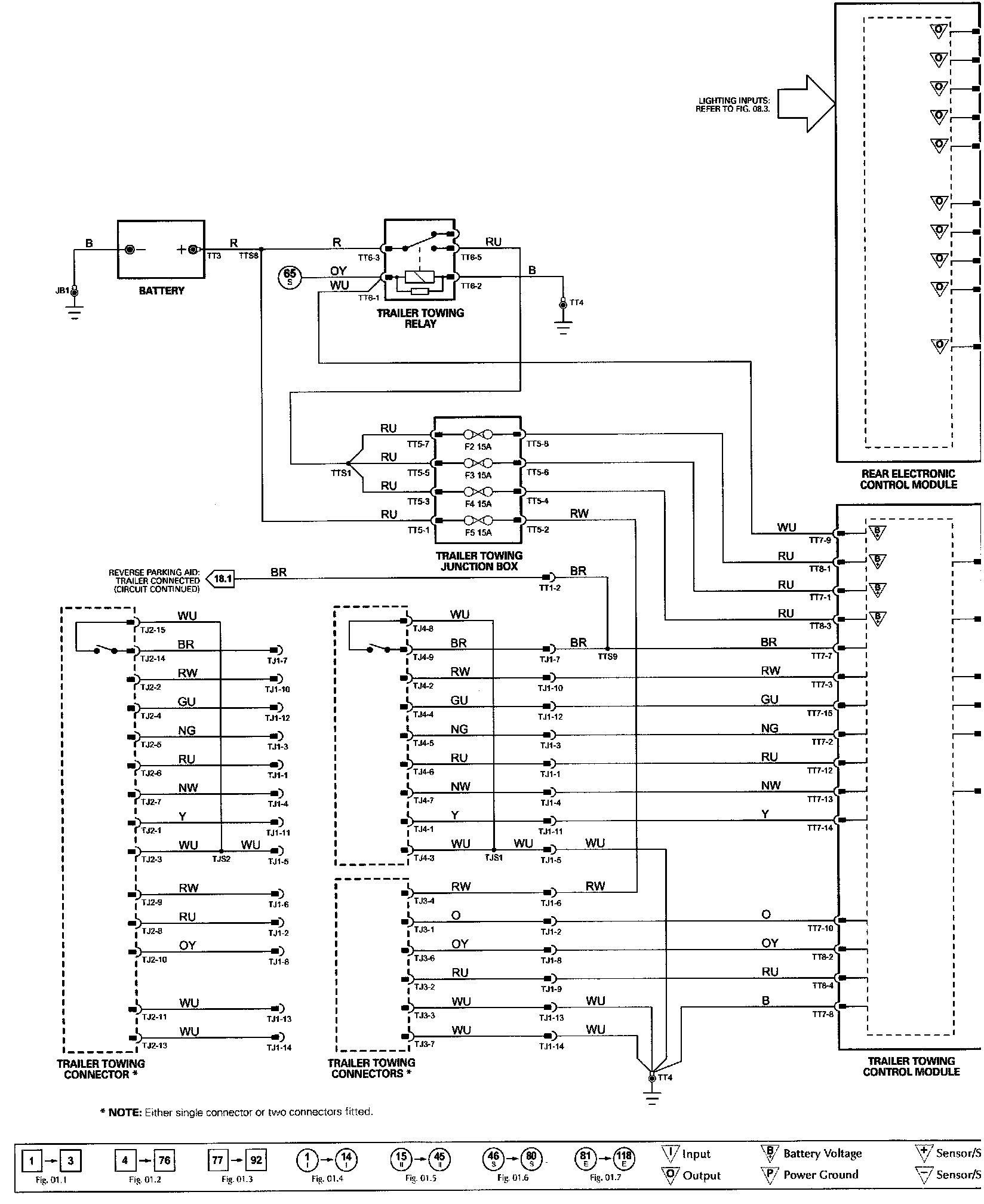

Ai%Wiring Diagram:

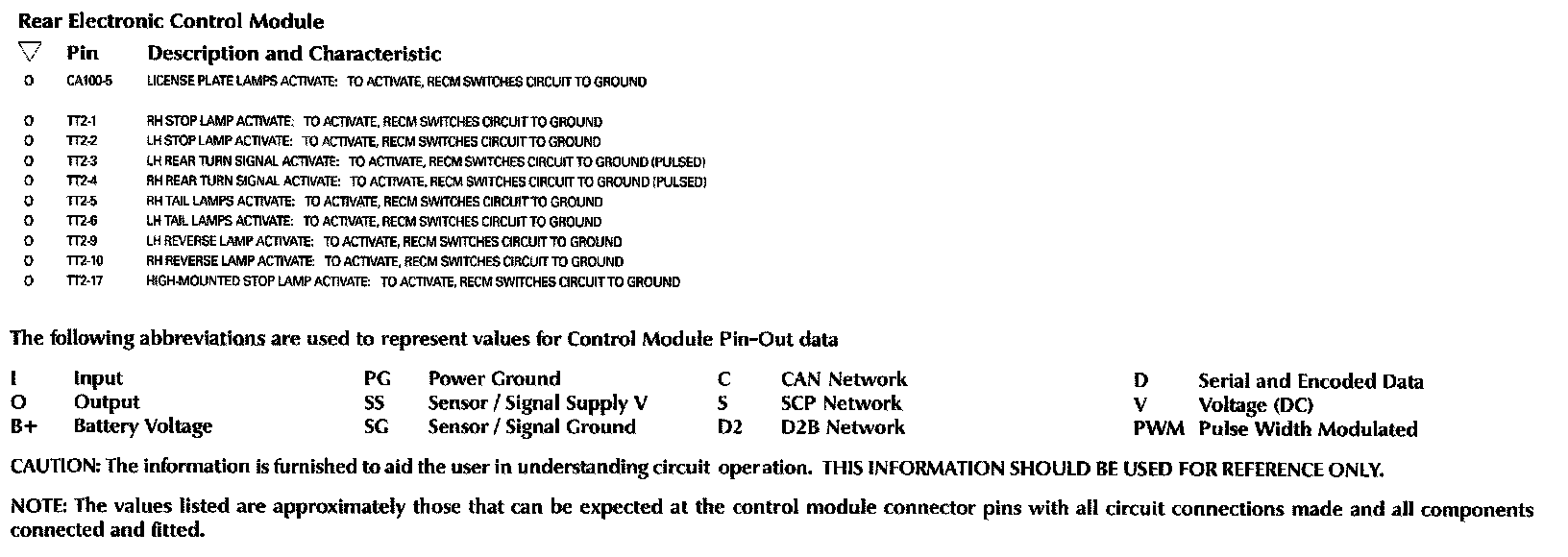

Control Module Pin-Out Information:
Components:
Harness In-Line Connectors:
Grounds:
