Fig 09.1




Interior Lighting

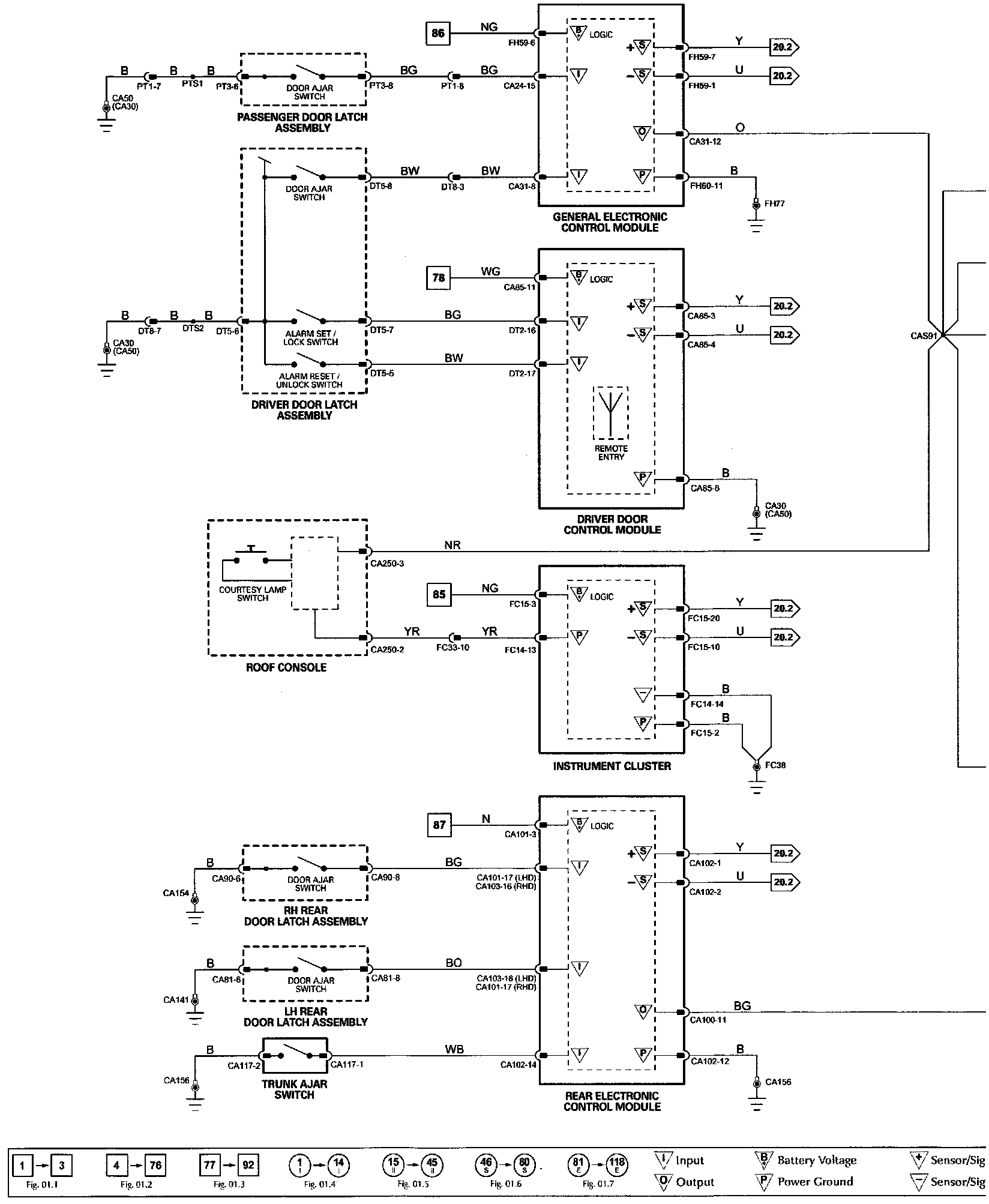

�[�%Wiring Diagram:

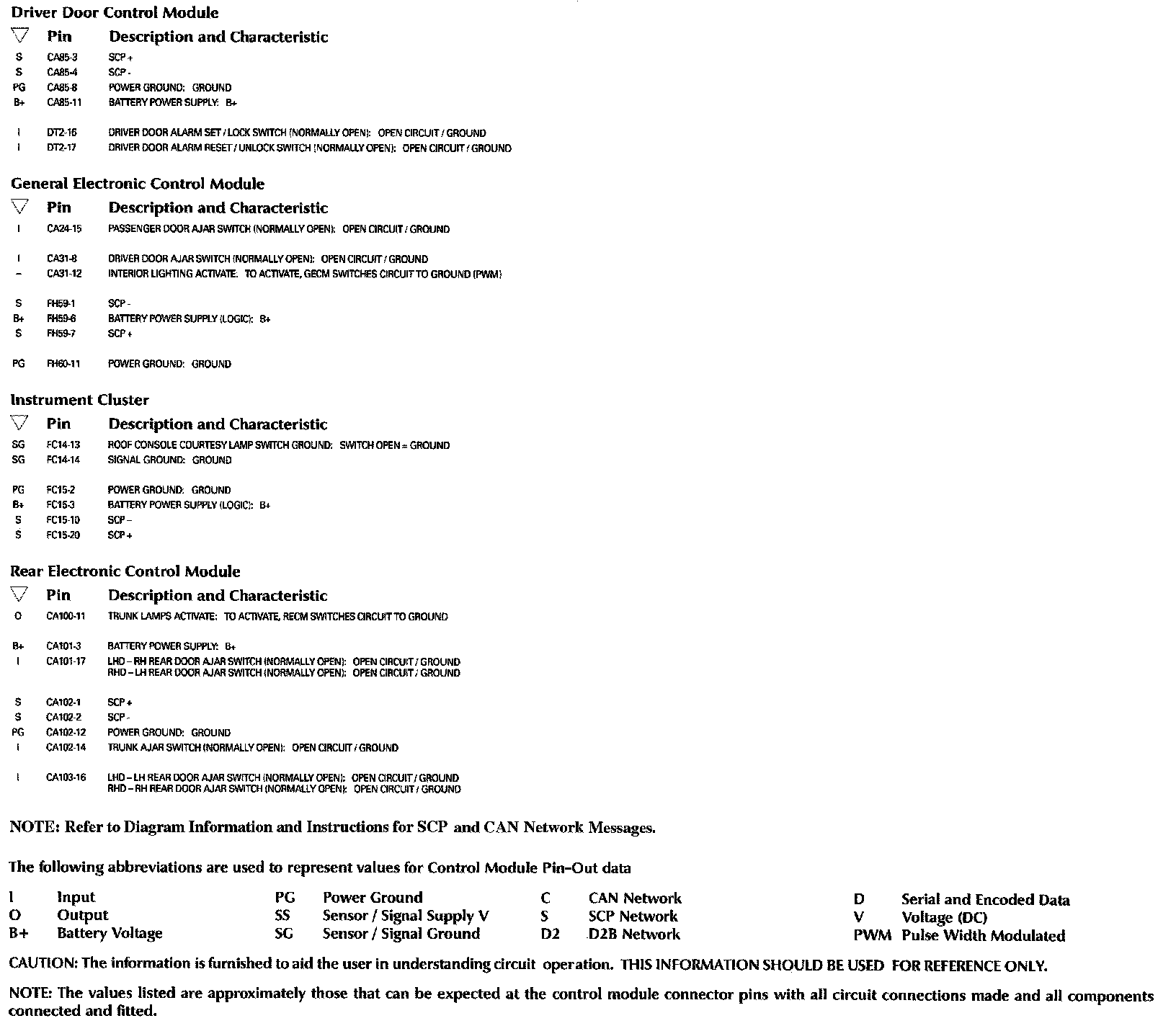

Control Module Pin-Out Information:

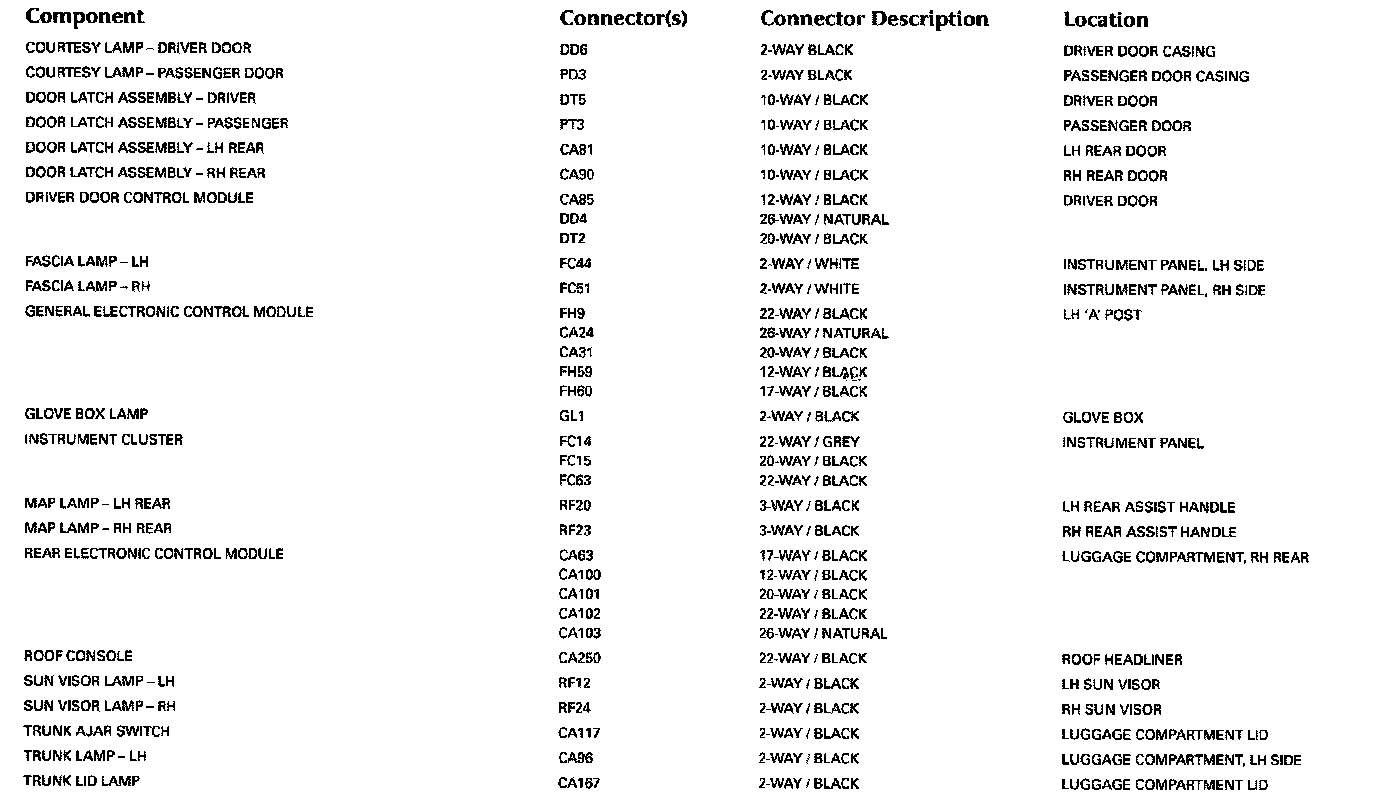

Components:

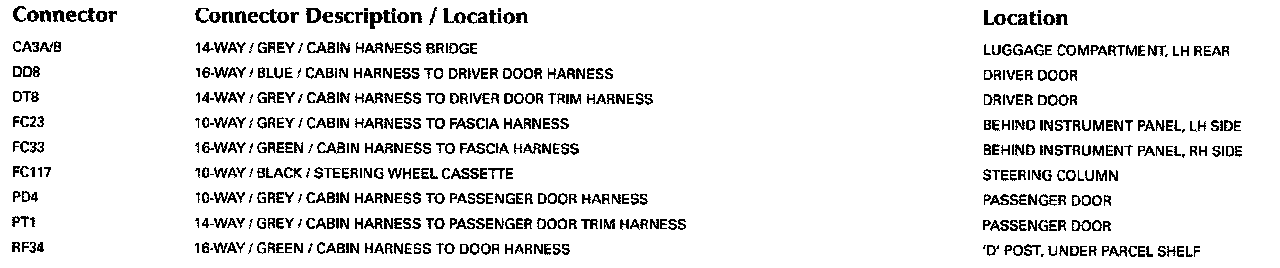

Harness In-Line Connectors:






Grounds:
