Fig 10.3




Electrochromic Rear View Mirror; Fold-Back Mirrors


��U Wiring Diagram:

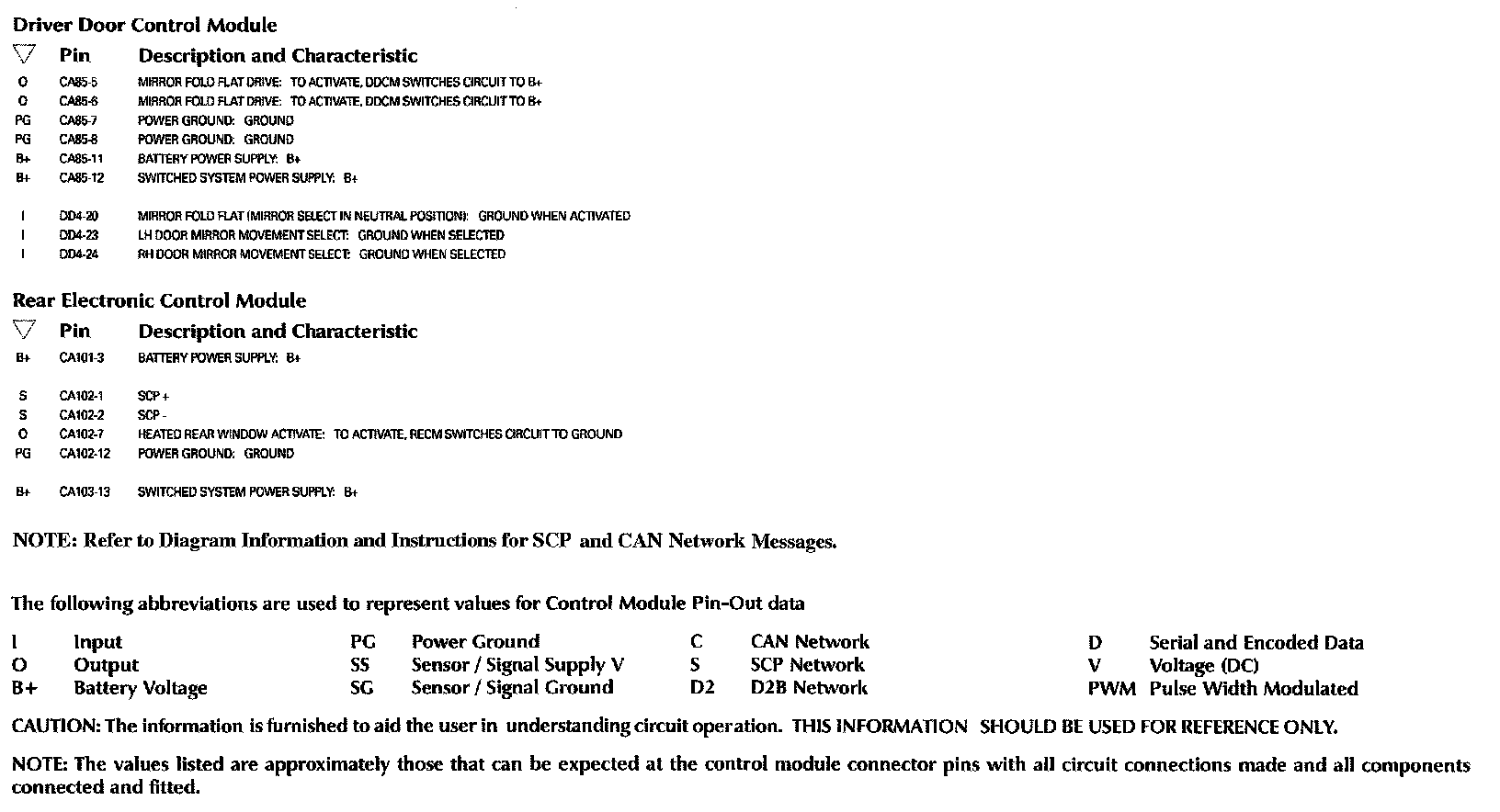

Control Module Pin-Out Information:

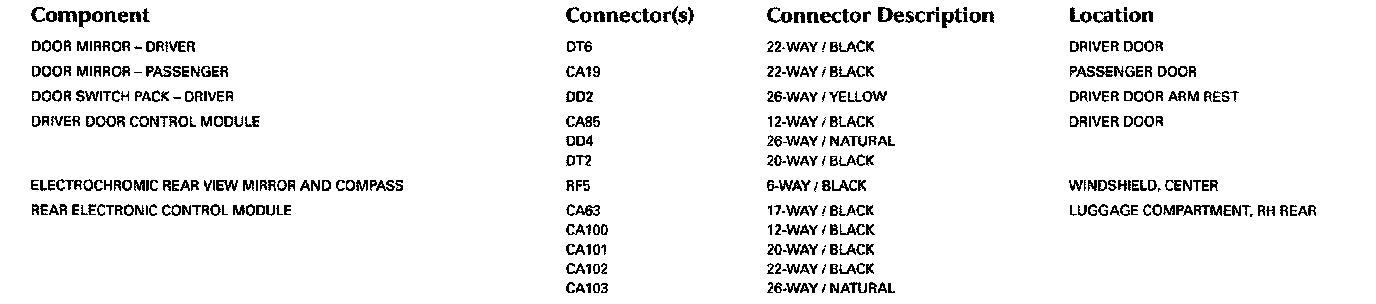

Components:

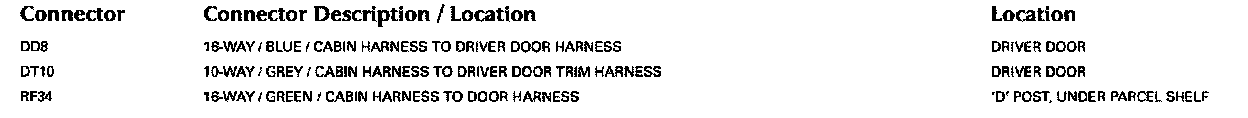

Harness In-Line Connectors:






Grounds:
