Fig 11.1




Driver Seat: 10-Way Movement With Memory


Uk+#Wiring Diagram:

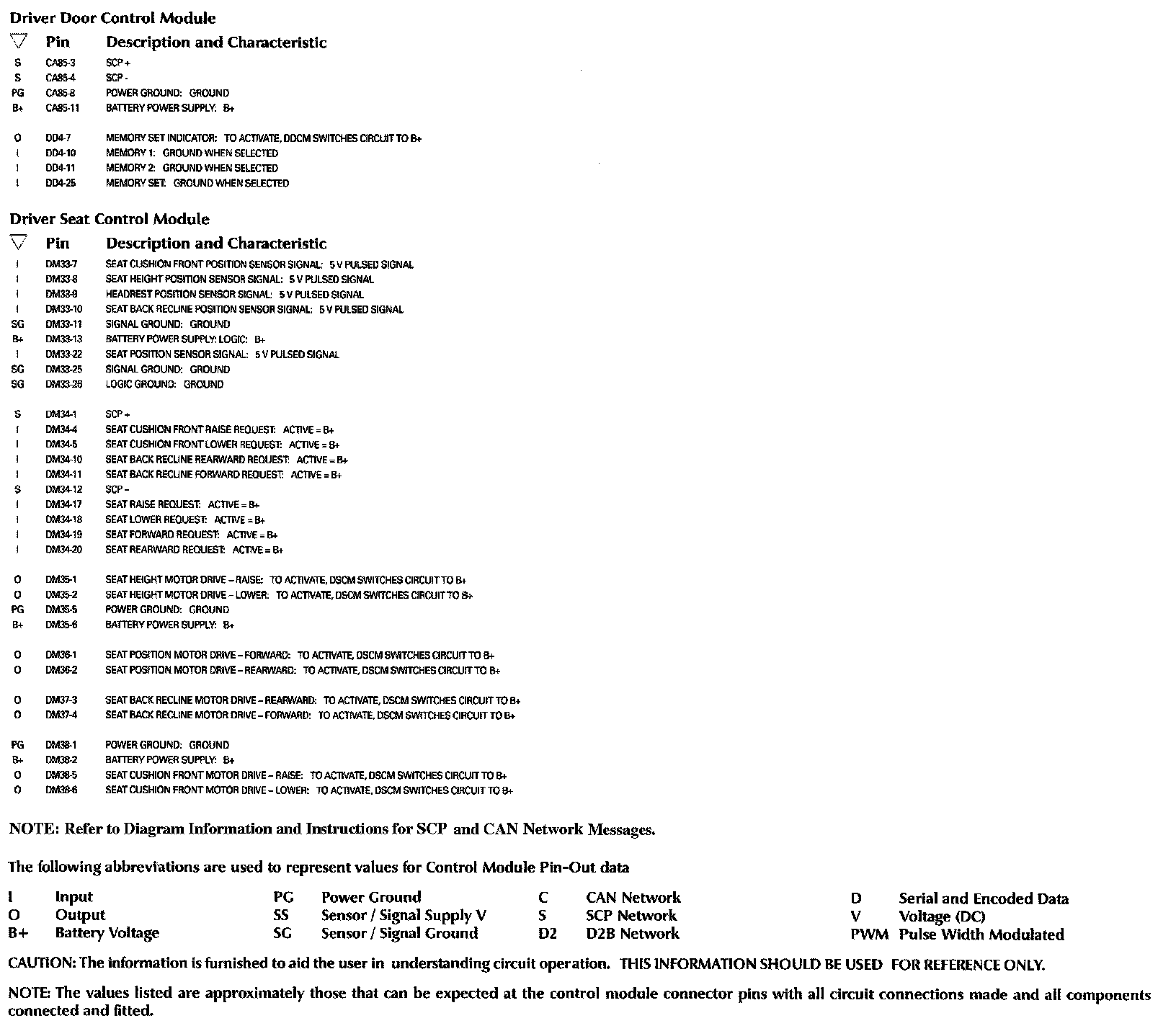

Control Module Pin-Out Information:






Components:

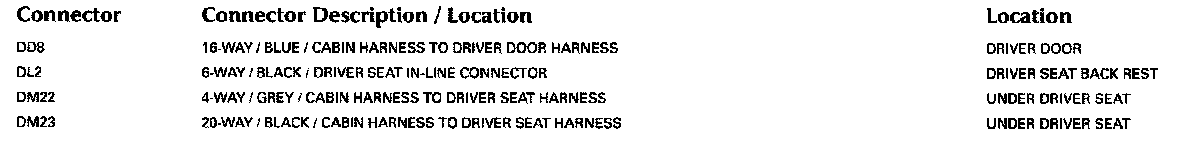

Harness In-Line Connectors:

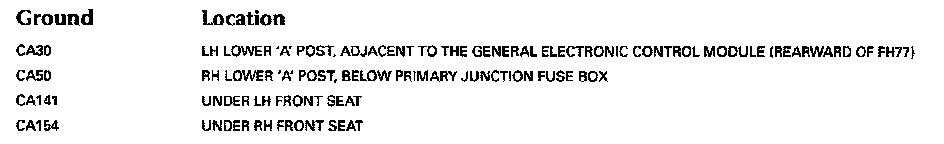

Grounds:
