Fig 11.2




Driver Seat: 16-Way Movement with Memory

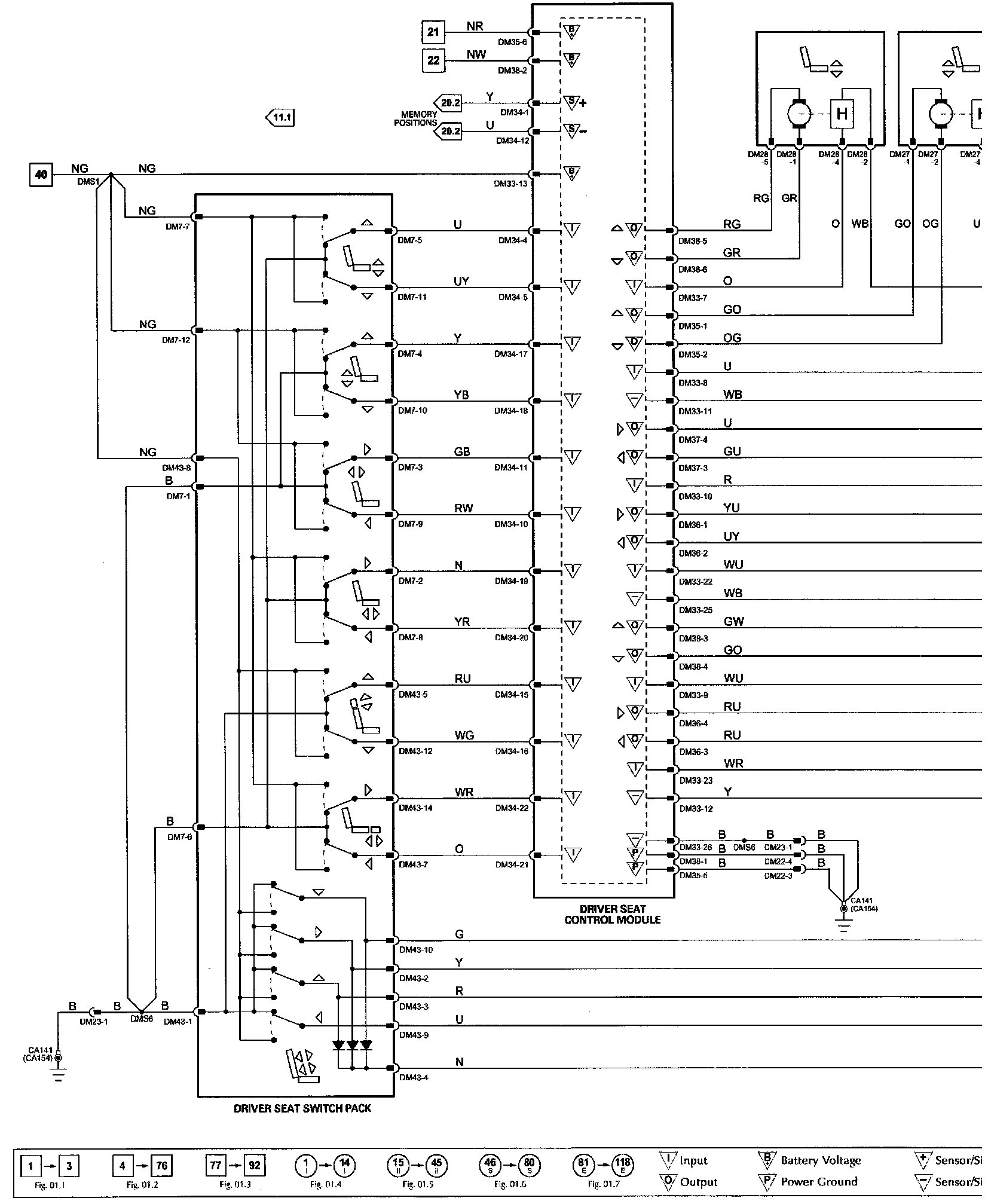

M`,#Wiring Diagram:

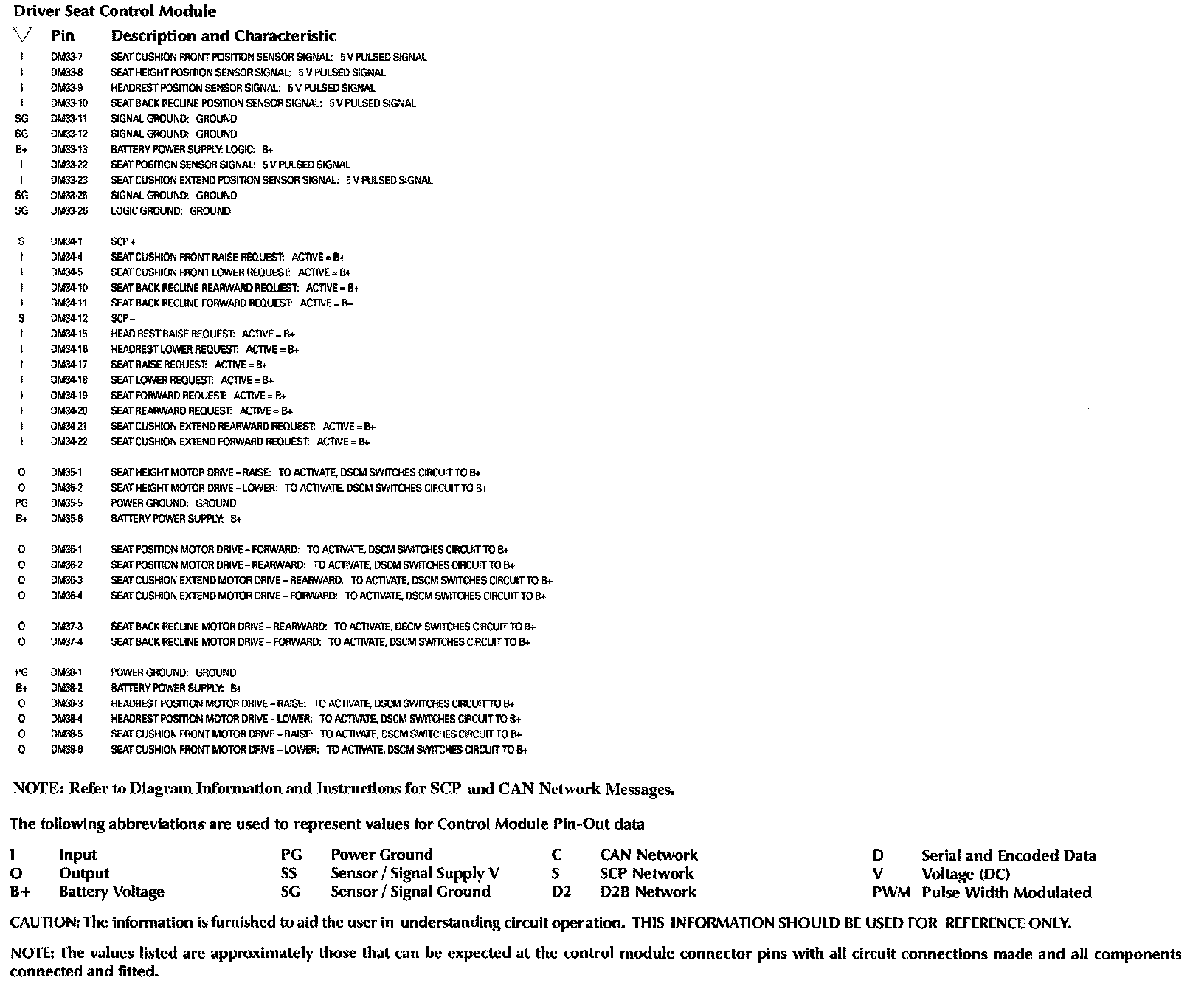

Control Module Pin-Out Information:

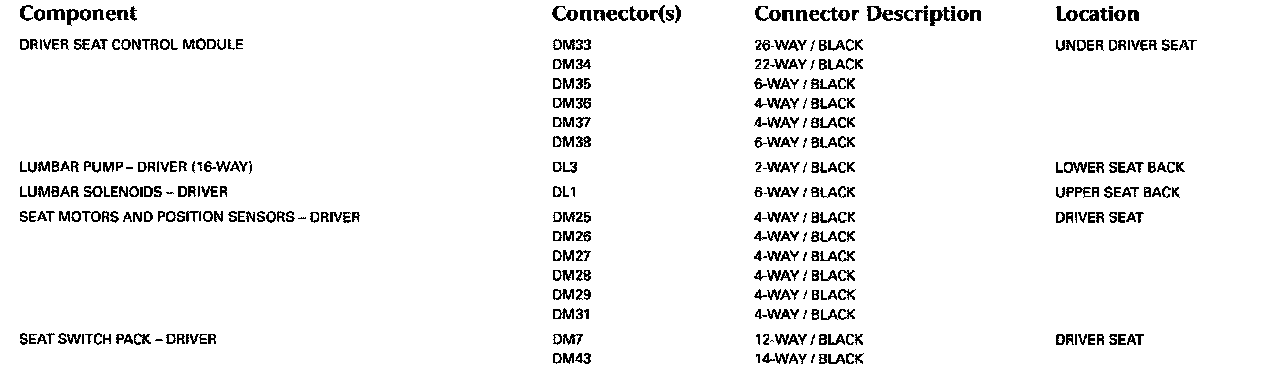

Components:

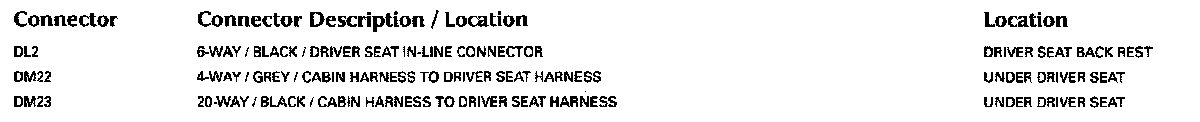

Harness In-Line Connectors:






Grounds:
