Fig 11.3




Driver Seat: Non Memory

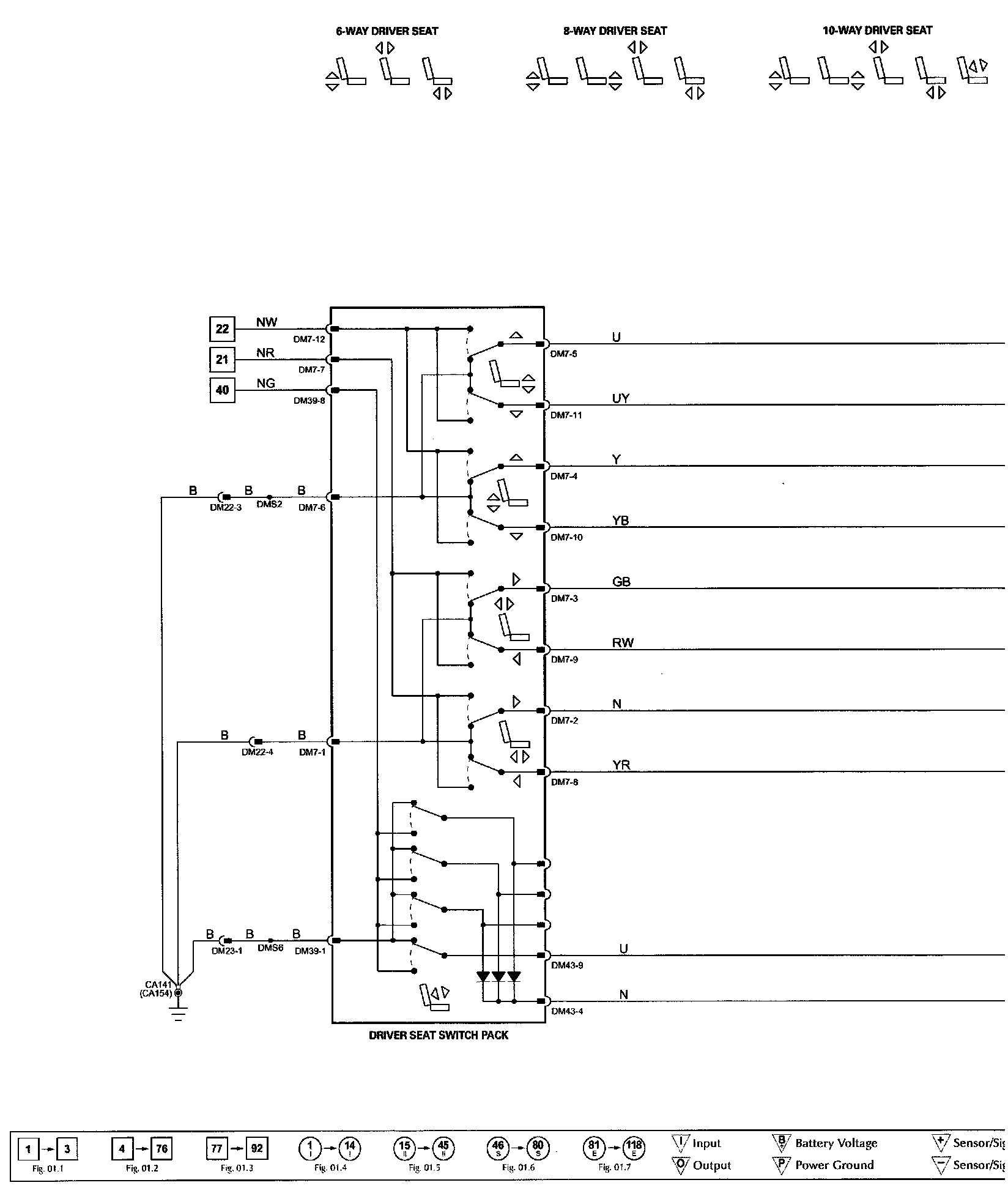

̂7#Wiring Diagram:

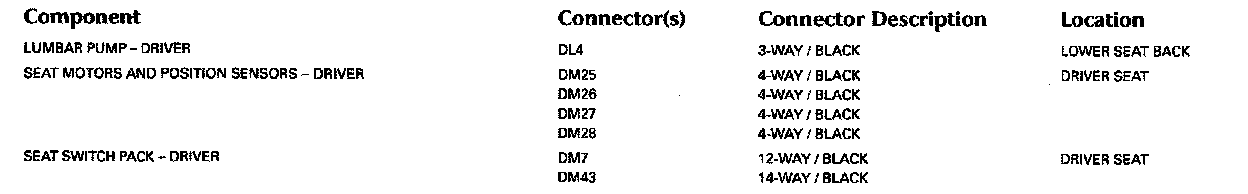

Components:

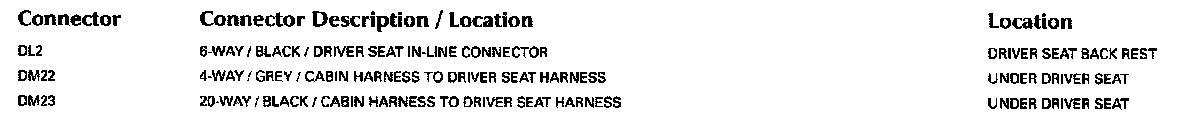

Harness In-Line Connectors:






Grounds:
