Fig 11.4




Passenger Seat

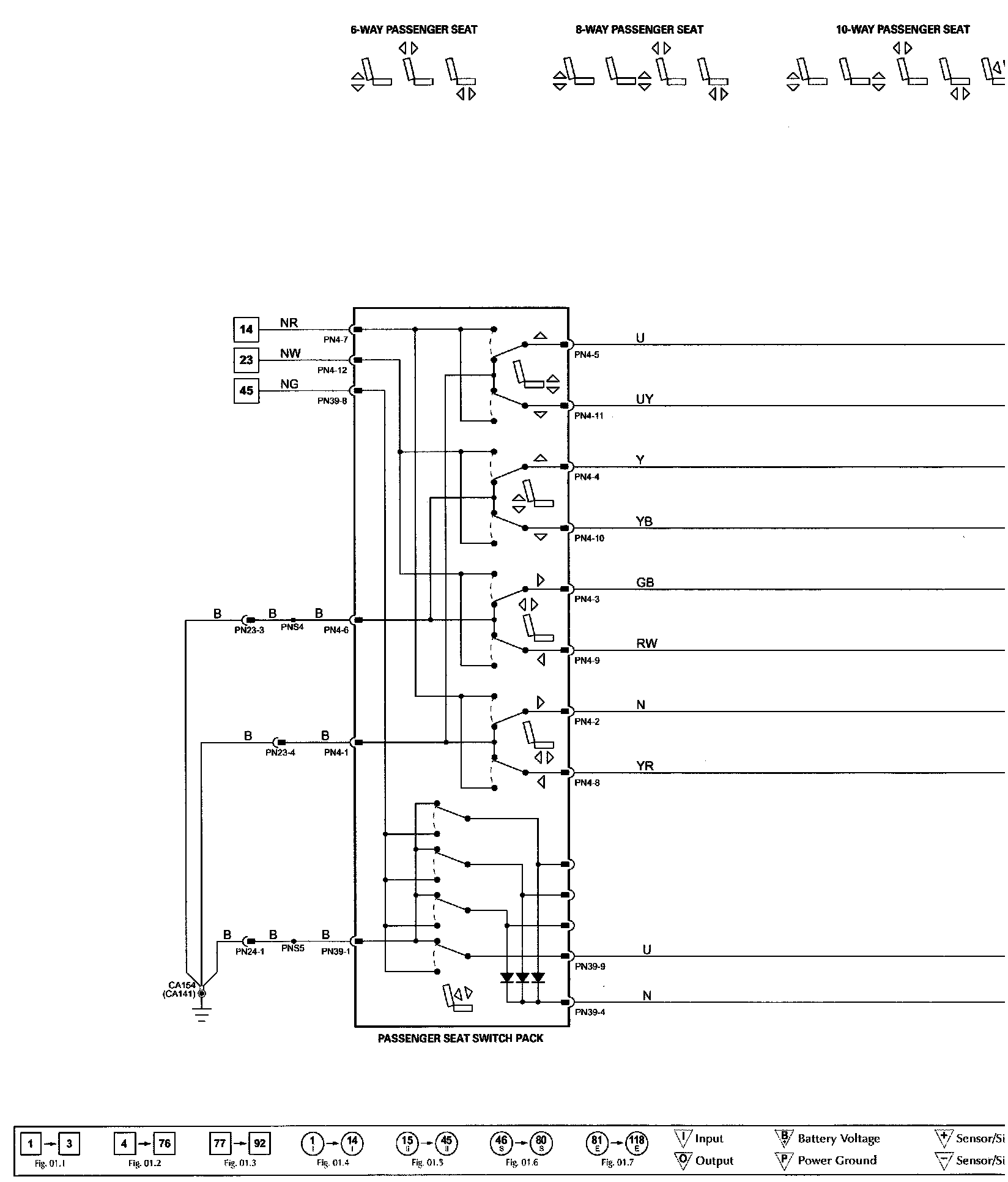

M�8#Wiring Diagram:

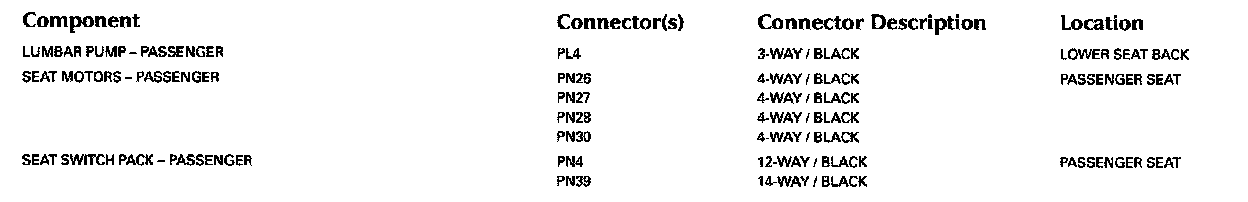

Components:

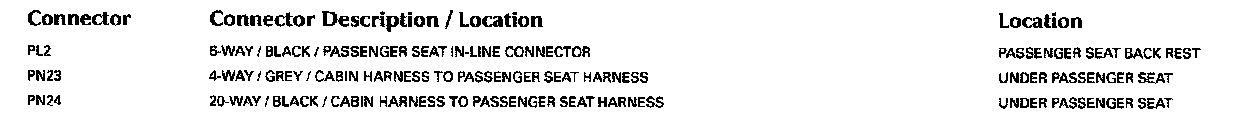

Harness In-Line Connectors:






Grounds:
