Fig 11.5




Passenger Seat: 16-Way Movement

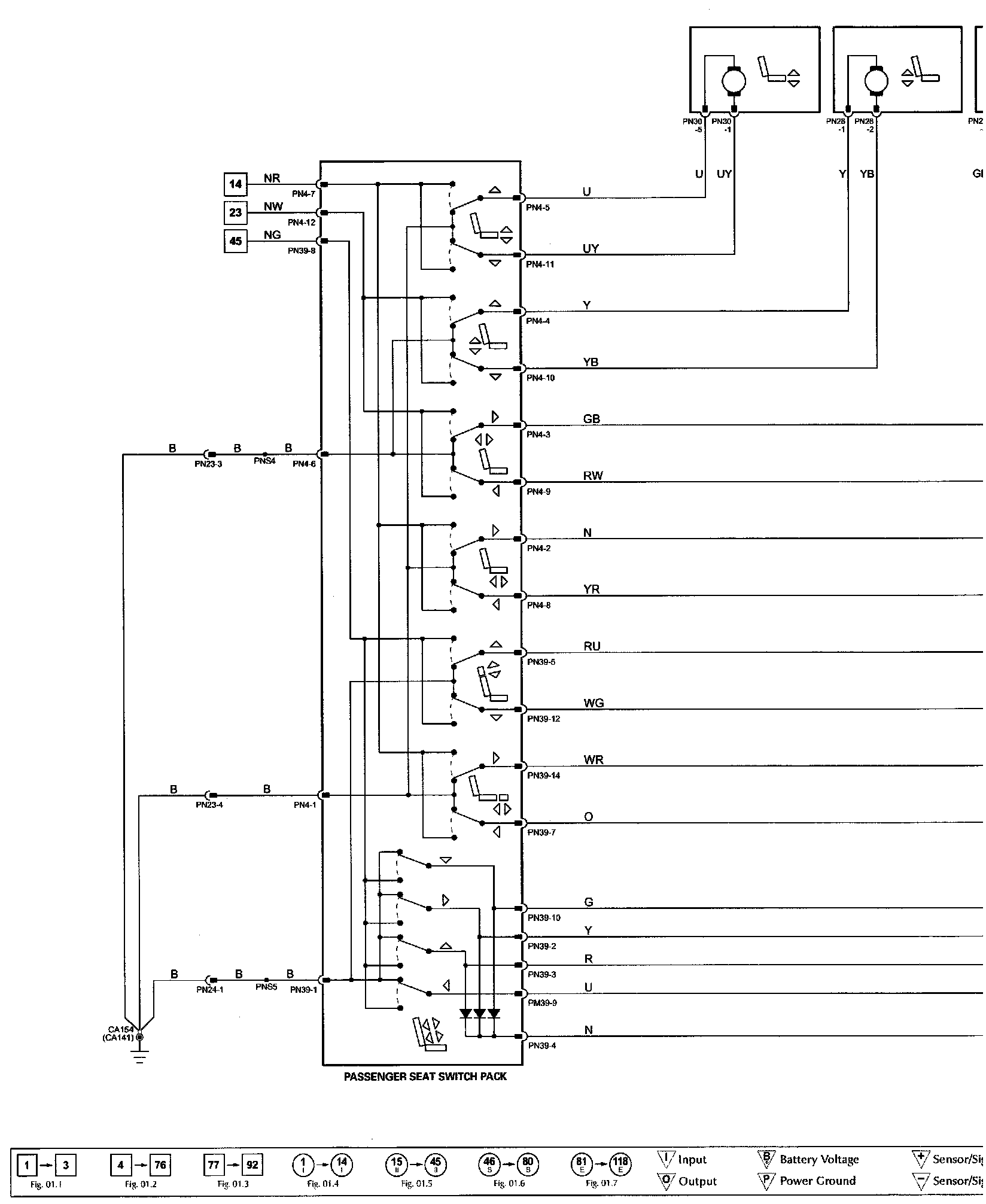

.L9#Wiring Diagram:

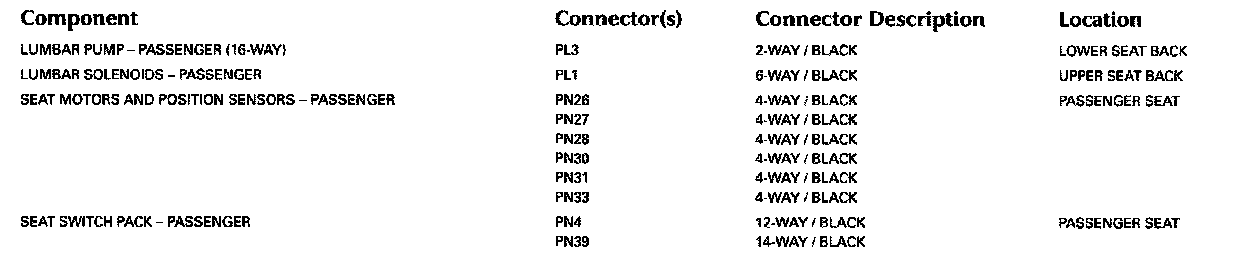

Components:

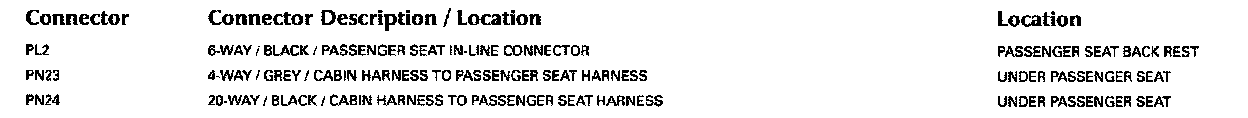

Harness In-Line Connectors:






Grounds:
