Fig 20.1




Controller Area Network

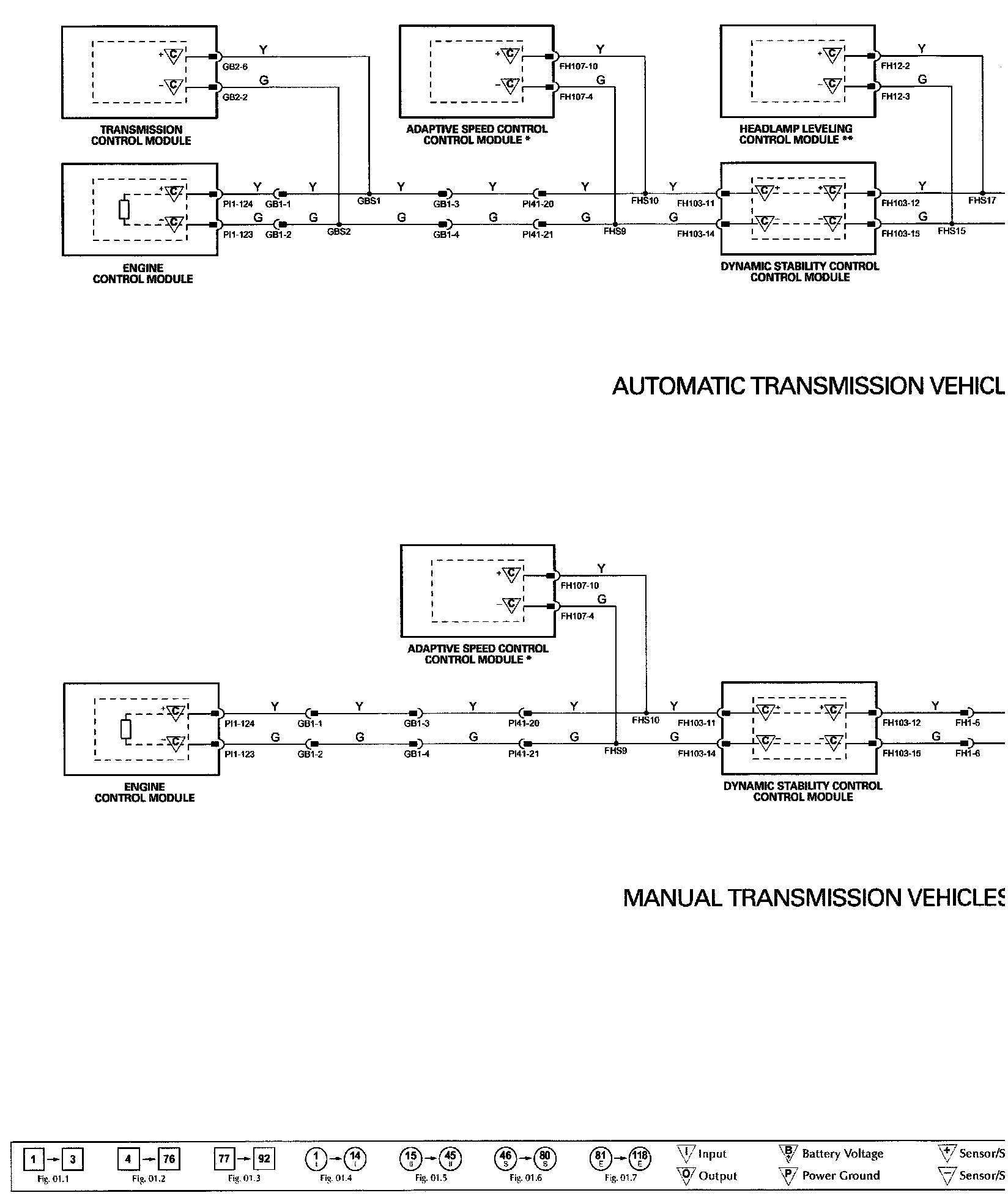

 � Wiring Diagram:

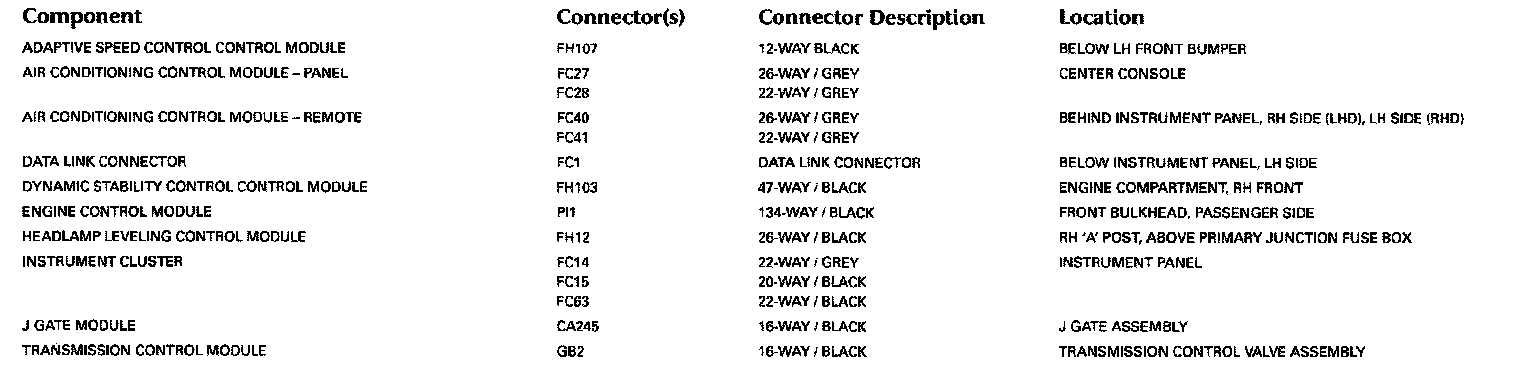

Components:

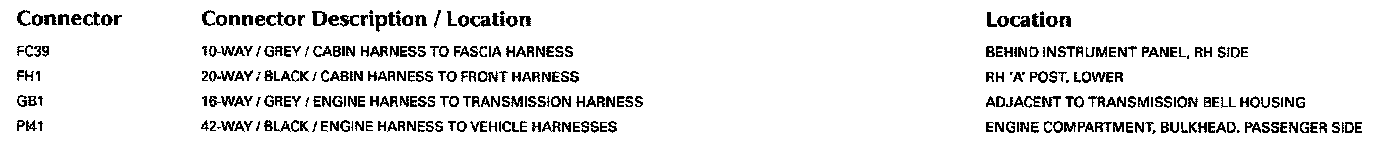

Harness In-Line Connectors:






Grounds:
