Fuel Pump Harness Connector:
Fuel Pump Diode Connector:

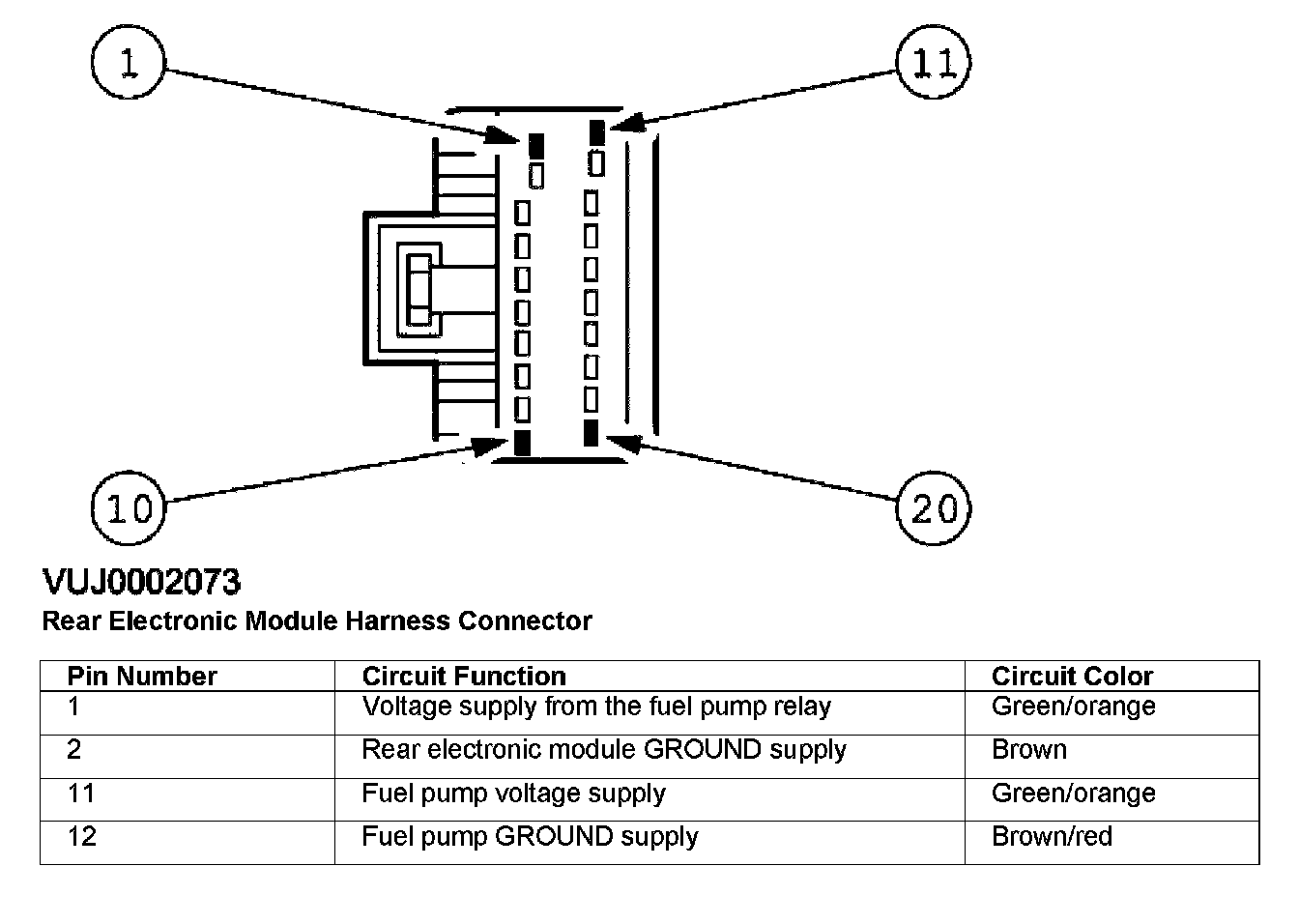

Rear Electronic Module Harness Connector:

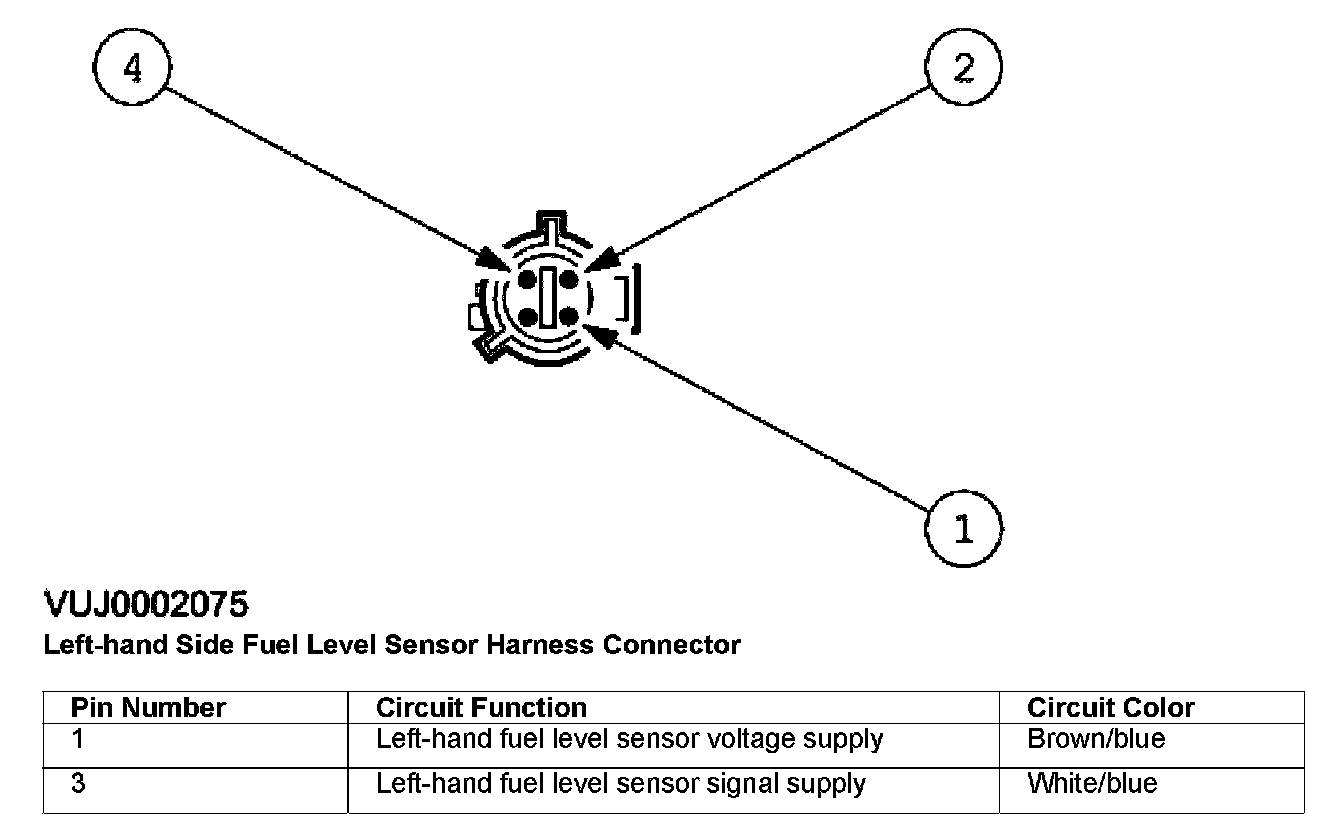

Left-Hand Side Fuel Level Sensor Harness Connector:
Rear Electronic Module Harness Connector:
