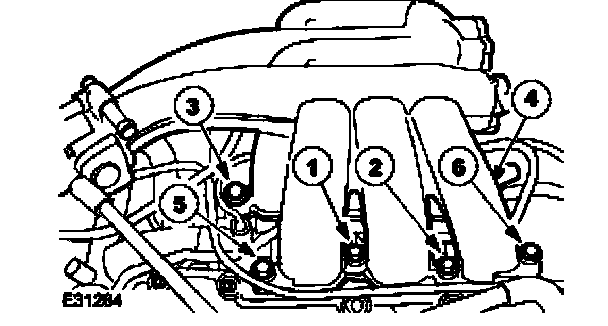

Intake Manifold

NOTE: The intake manifold retaining bolts in position 1, 4 and 5 are longer than the retaining bolts in position 2, 3 and 6.

Tighten to 10 Nm.
Complete the tightening sequence.

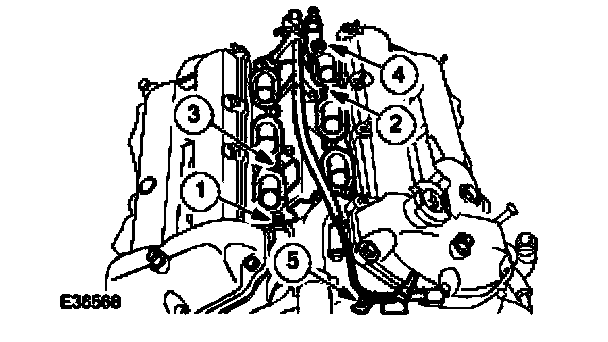

Lower Intake Manifold

Tighten the retaining bolts in the sequence
Tighten to 10 Nm.
