Fig 03.3




Engine Mangement: V8 N/A - Part 1

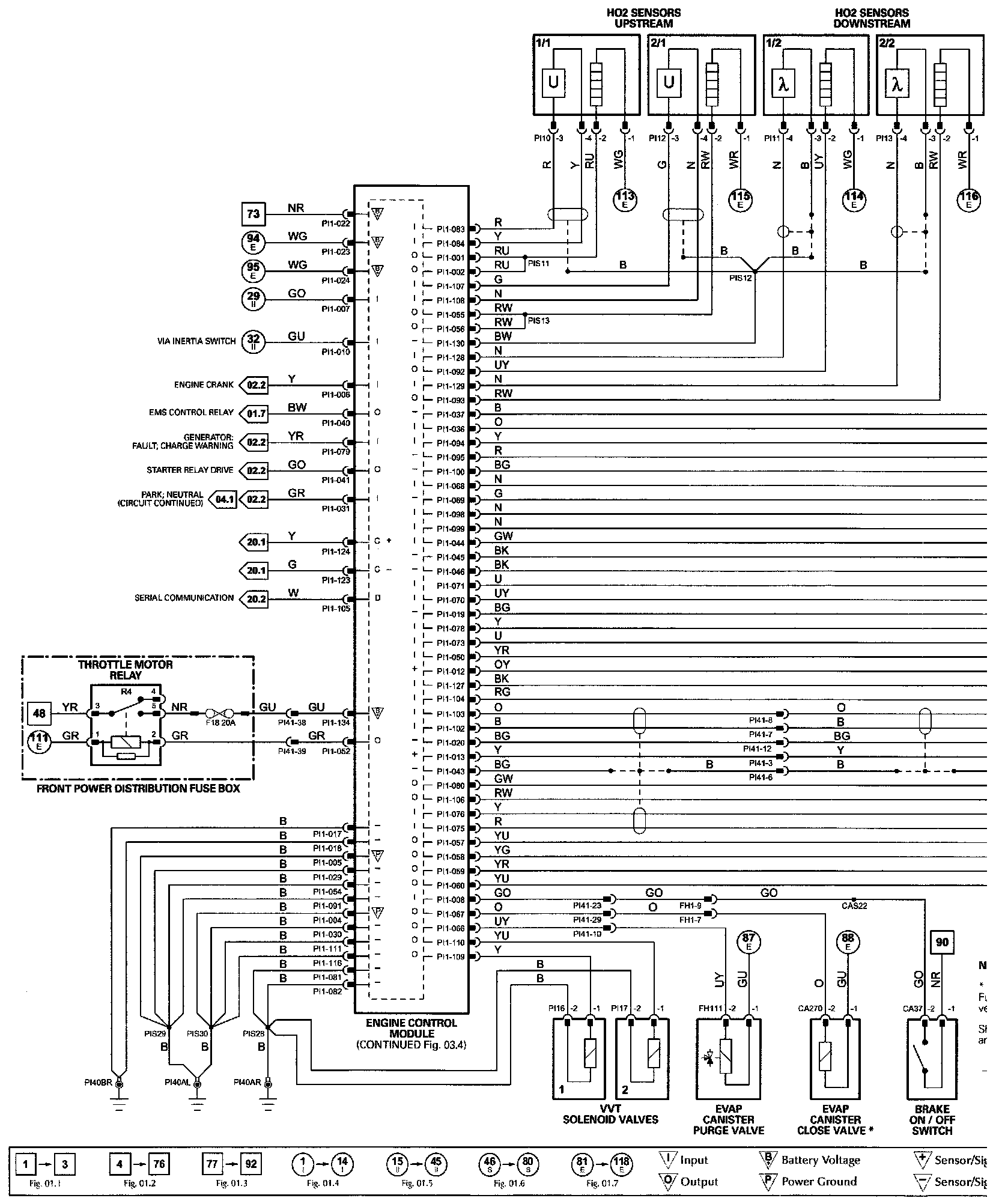

h�Wiring Diagram:

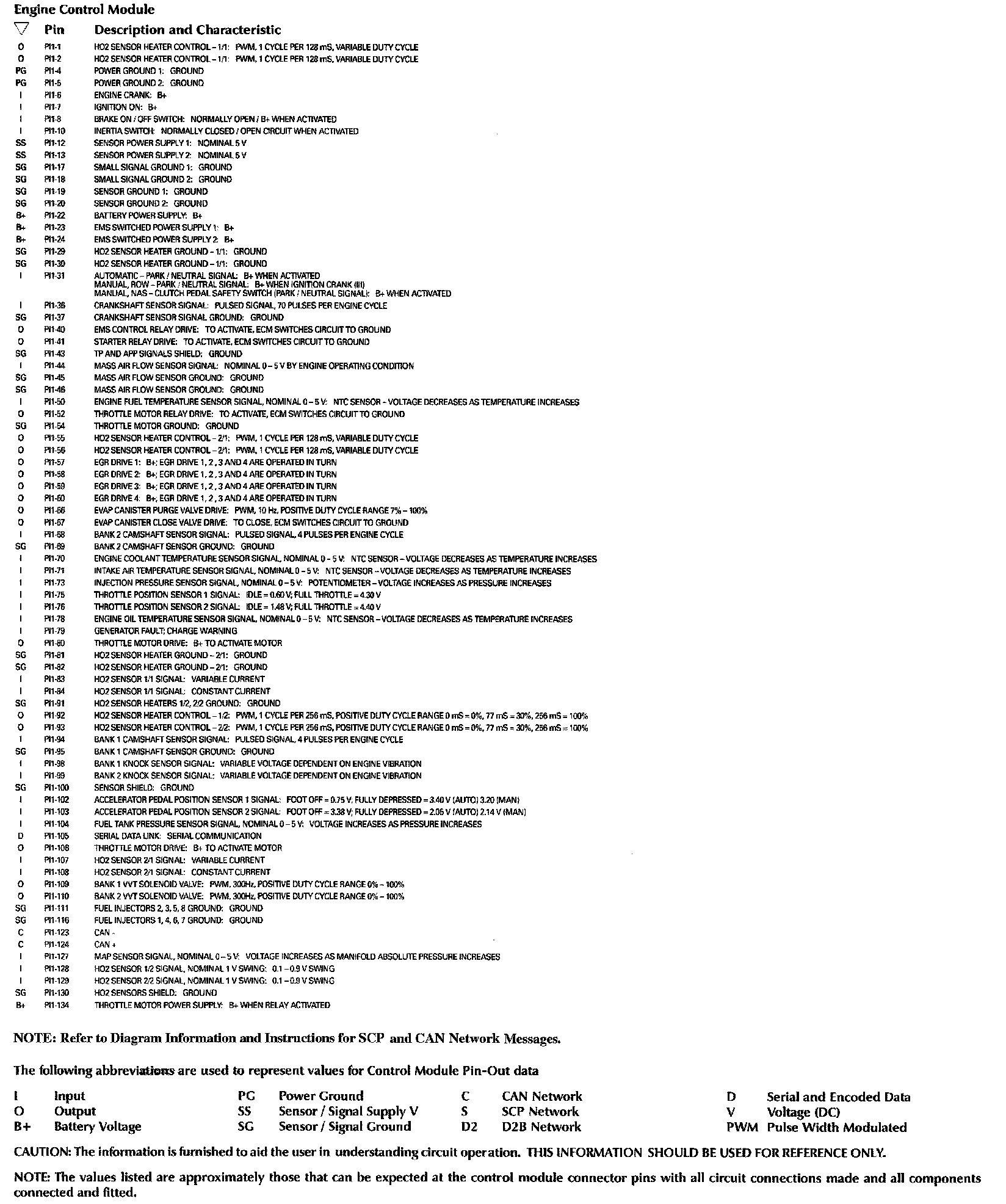

Control Module Pin-Out Information:

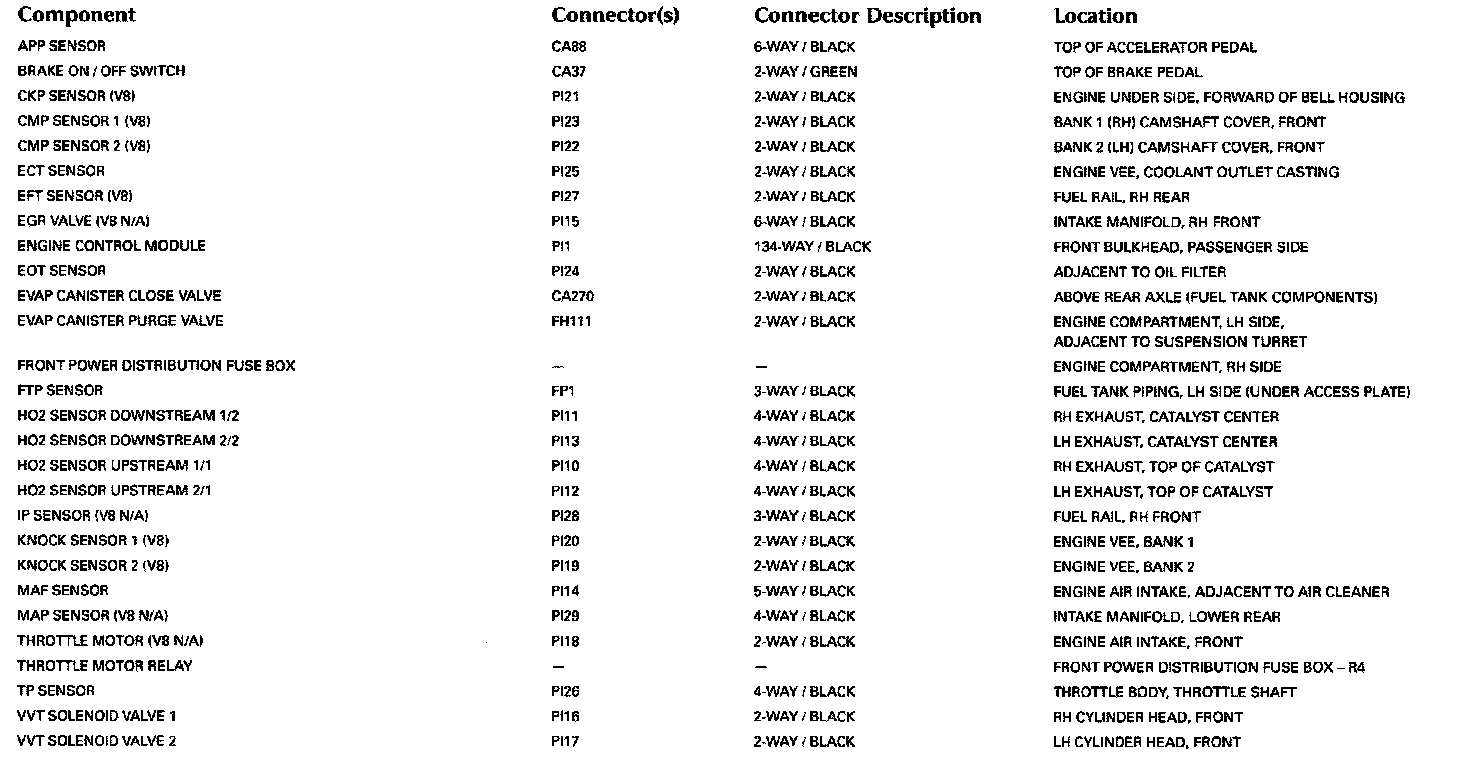

Components:

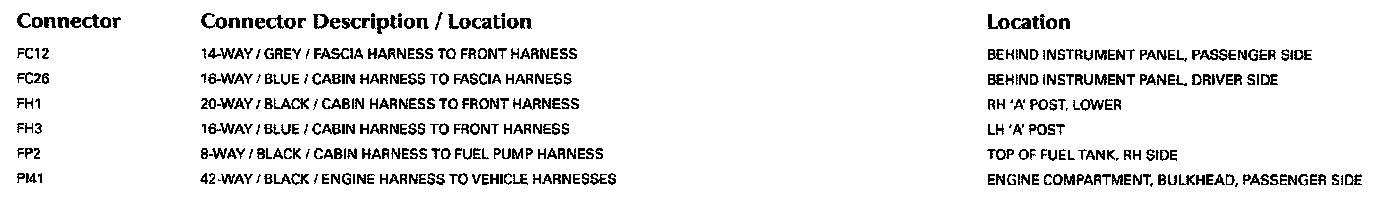

Harness In-Line Connectors:






Grounds:
