Home >> Jaguar >> 2004 >> S-Type (X200) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig 20.2

Fig 20.2




Standard Corporate Protocol Network; Serial Data Link

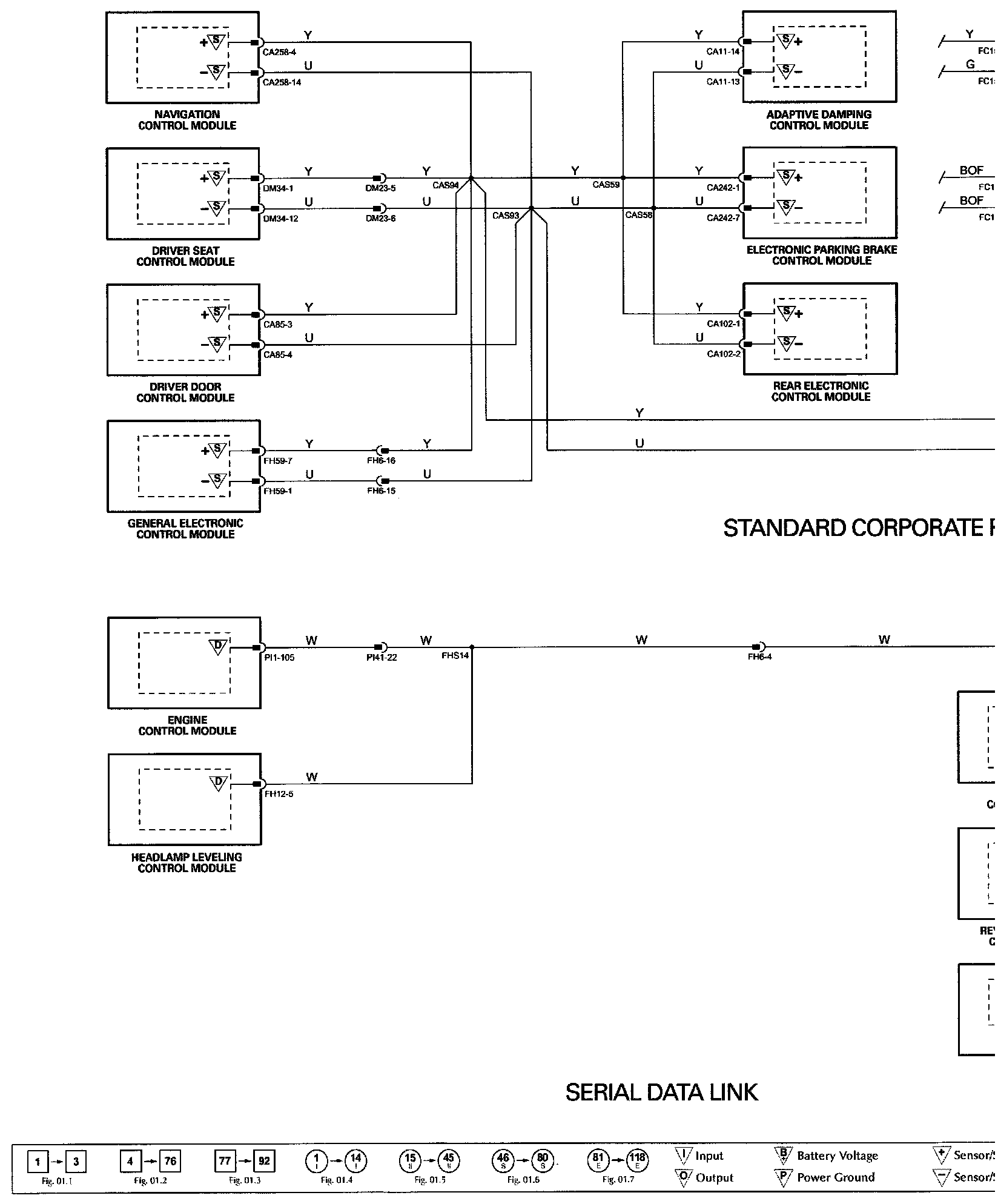

n� Wiring Diagram:

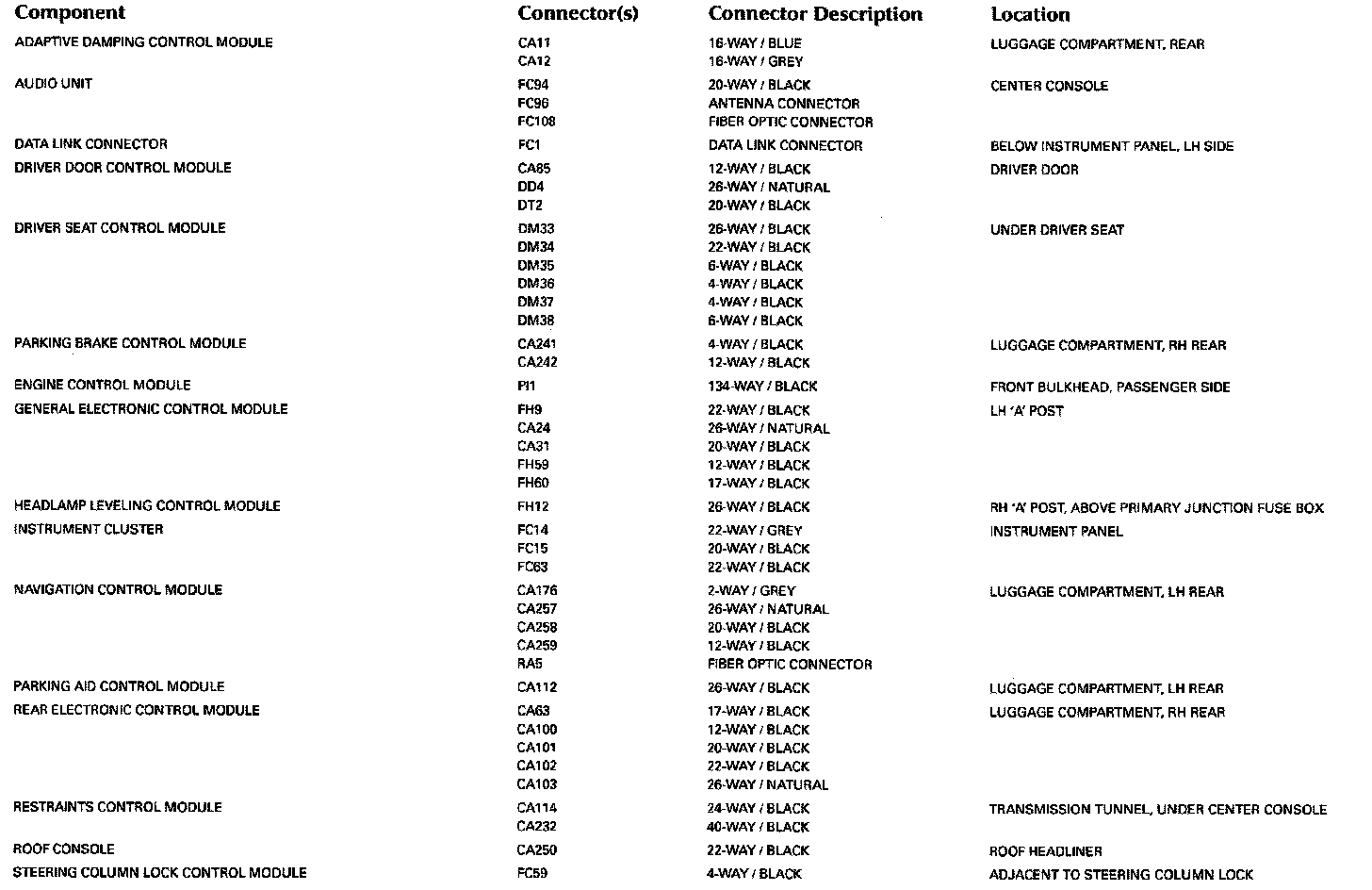

Components:

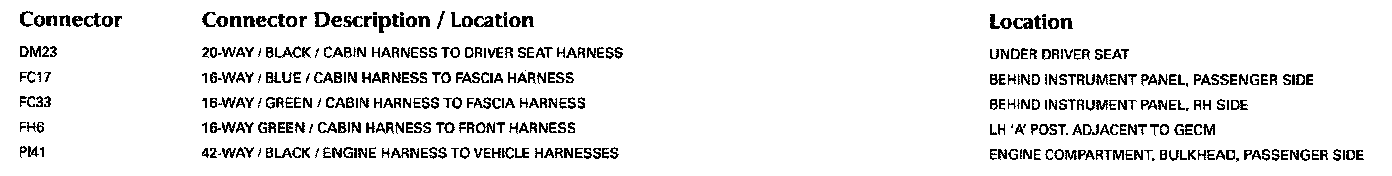

Harness In-Line Connectors:

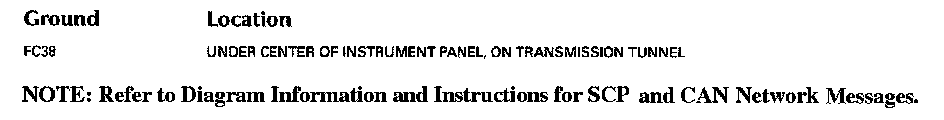

Grounds:
