Fuel Charging and Controls

Powertrain Control Module Harness Connector:

Cyl 1 Injector Harness Connector:

Cyl 2 Injector Harness Connector:

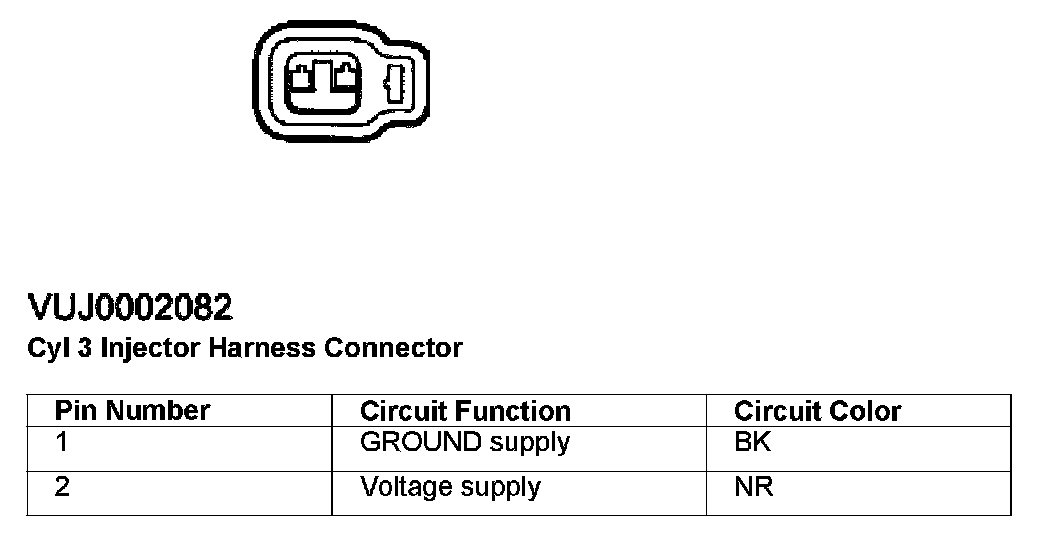

Cyl 3 Injector Harness Connector:

Cyl 4 Injector Harness Connector:

Cyl 5 Injector Harness Connector:

Cyl 6 Injector Harness Connector:

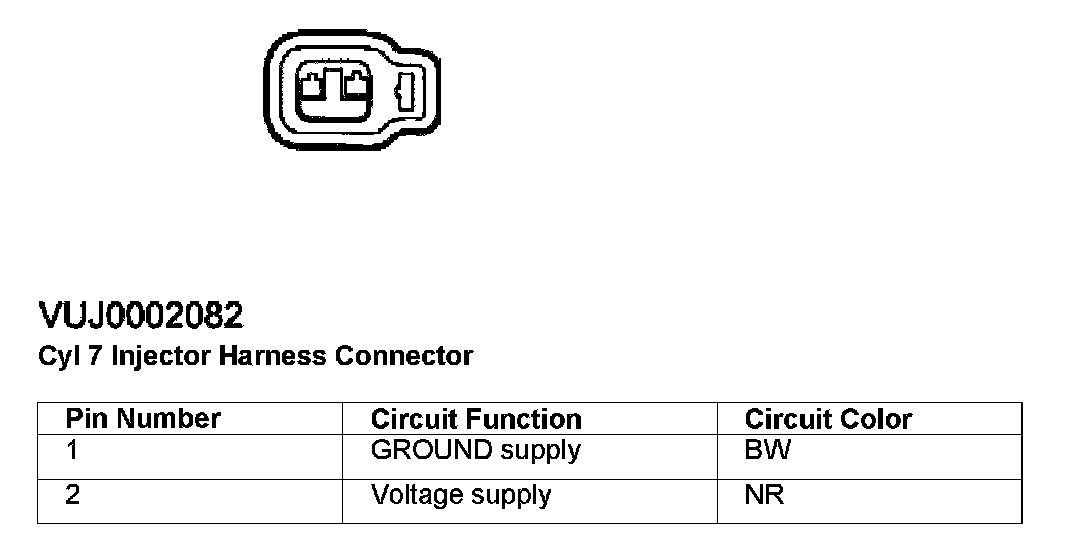

Cyl 7 Injector Harness Connector:

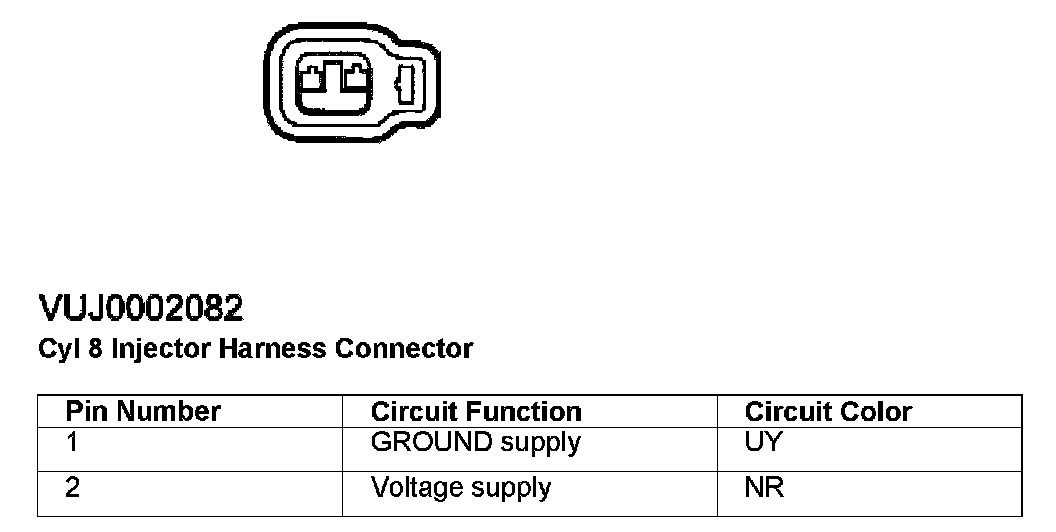

Cyl 8 Injector Harness Connector:

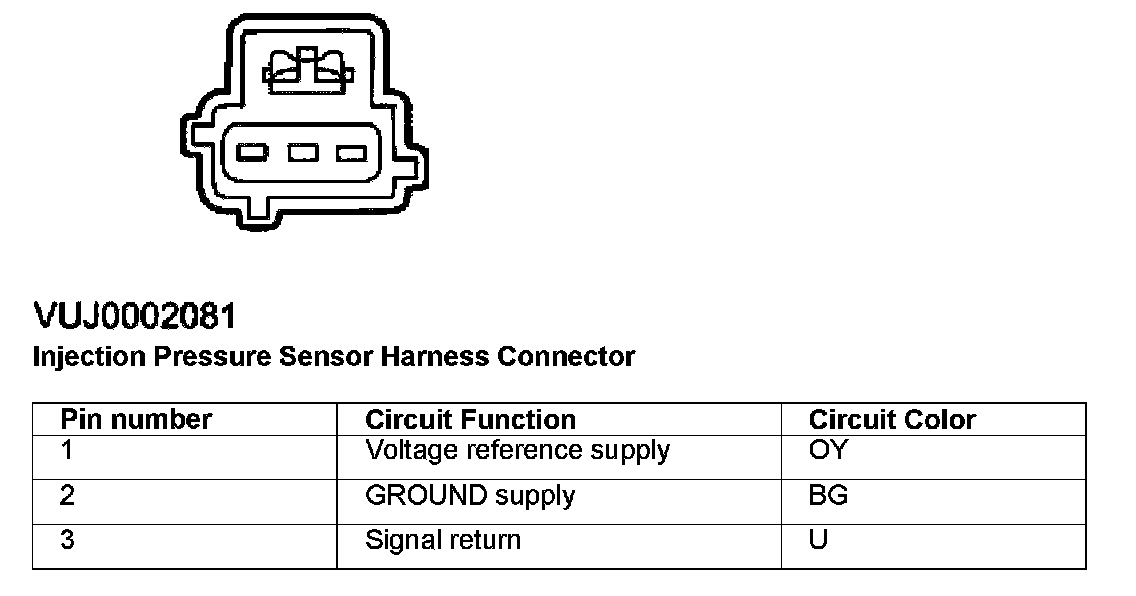

Injection Pressure Sensor Harness Connector:
