Parking Aid Sensor

Parking Aid Sensor

Removal
1. Remove the bumper cover.







2. Disconnect the electrical connector.

NOTE: Rear parking aid sensor shown, front parking aid sensor similar.

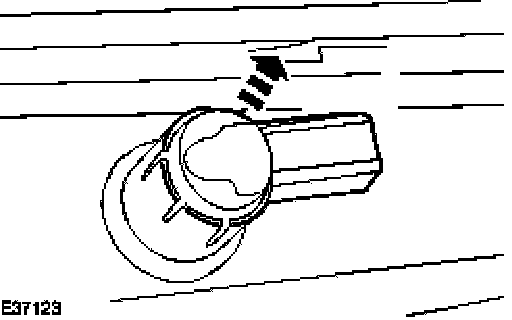

3. Remove the parking aid sensor.

CAUTION: Make sure excessive pressure or tools are not used when removing the parking aid sensor from the housing.

NOTE: Rear parking aid sensor shown, front parking aid sensor similar.

Installation
1. To install, reverse the removal procedure.
