Fig 11.8
Fig 11.8

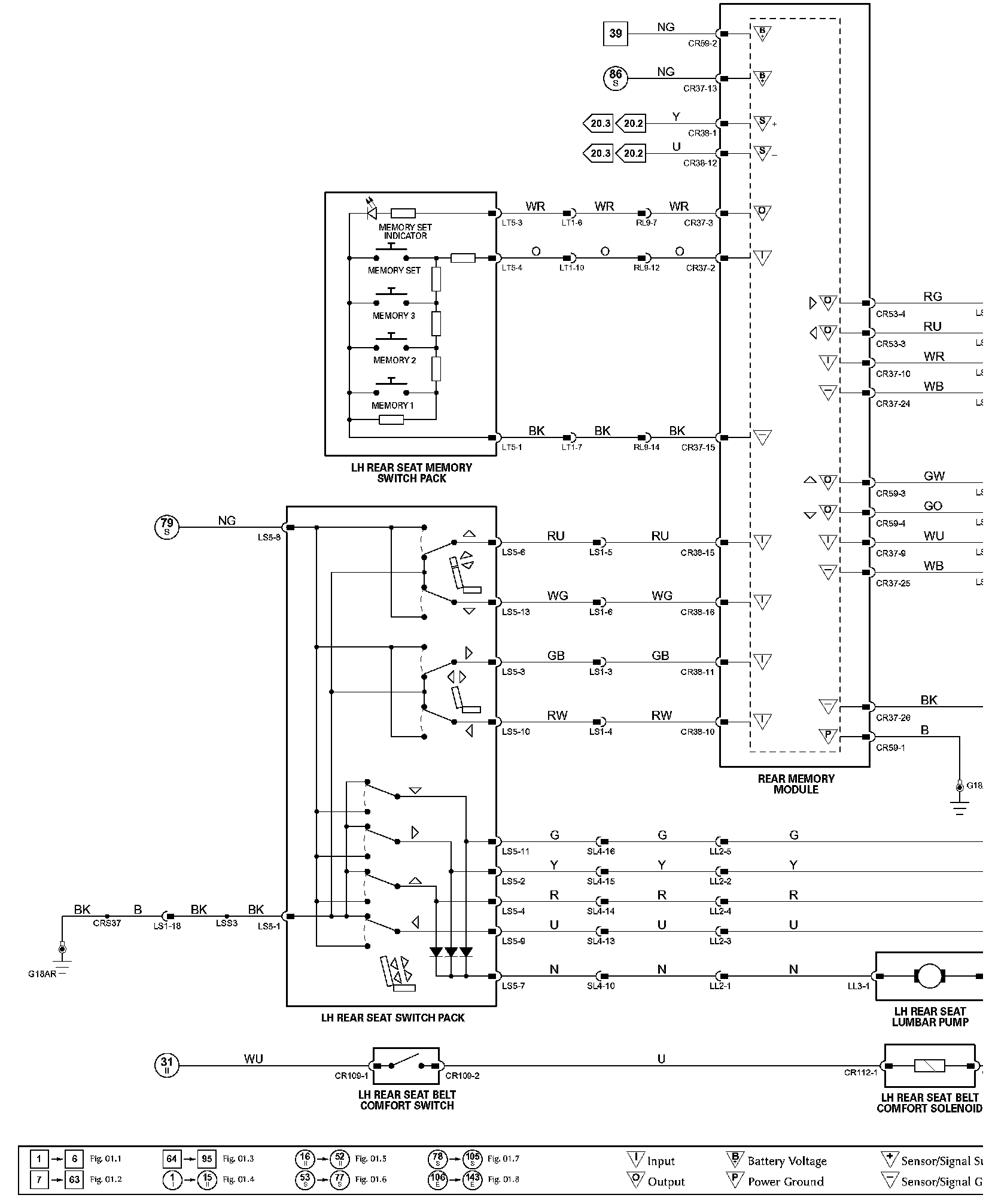

�N#Diagram Figure 11.8:
Diagram Data Sheet 11.8 (Part 1):
Diagram Data Sheet 11.8 (Part 2):
