Fig 11.9
Fig 11.9

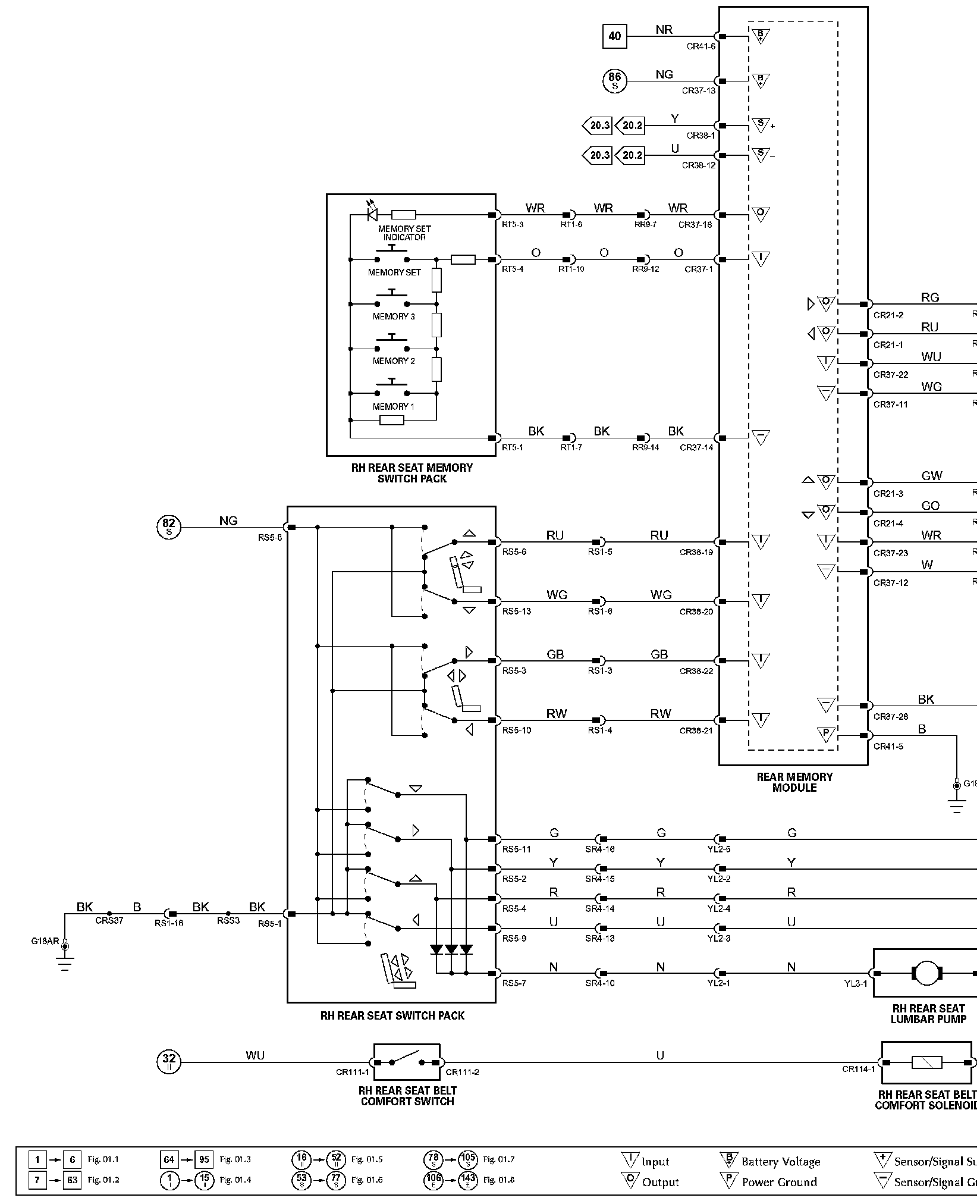

�iO#Diagram Figure 11.9:
Diagram Data Sheet 11.9 (Part 1):
Diagram Data Sheet 11.9 (Part 2):
