Wiper Motor: Service and Repair

325240

Windshield Wiper Motor

Removal

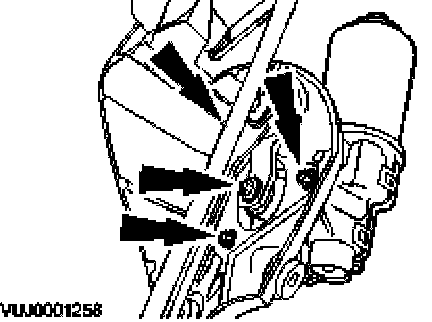

1. Remove the wiper mounting arm and pivot shaft.

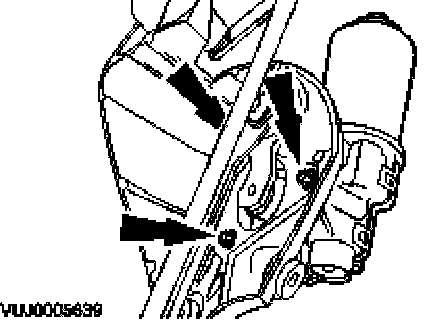

2. Remove the windshield wiper motor.

Installation







1. To install, reverse the removal procedure.
- Tighten to 15 Nm.







2. Tighten to 17 Nm.
