Parking Aid Module

86.80.39

Parking Aid Module

Removal
1. Disconnect the battery ground cable.
2. Remove the spare wheel.







3. Disconnect the electrical connector.

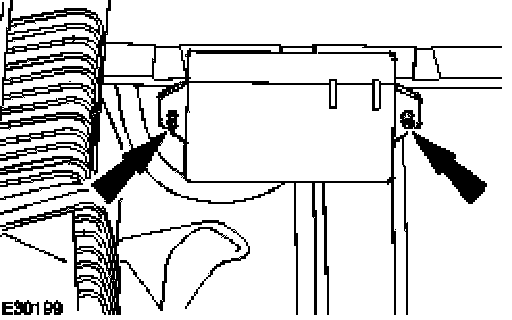

4. Remove the parking aid module.

Installation
1. To install, reverse the removal procedure.
