Antilock Brakes / Traction Control Systems: Service and Repair

Brake Master Cylinder Primary Pressure Transducer

Removal

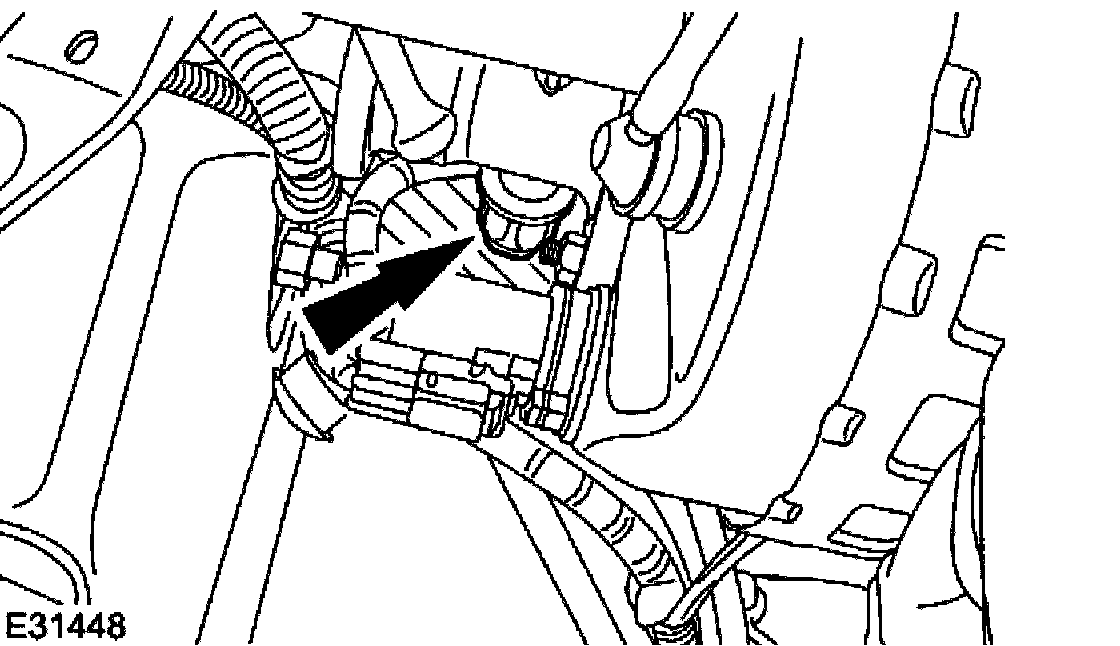

1. Disconnect the brake master cylinder primary pressure transducer electrical connector.

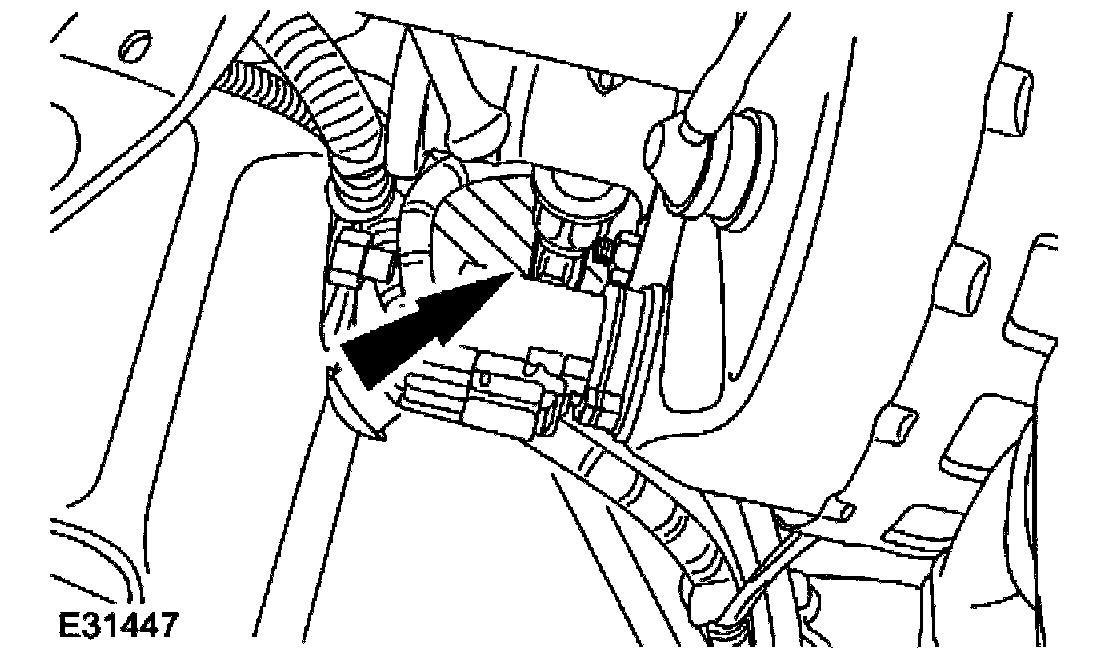

2. Remove the brake master cylinder primary pressure transducer.

Installation
1. To install, reverse the removal procedure.
